ZONE 2005-2007 FORD F-250,F-350 4WD GAS 4" SUSPENSION LIFT KIT,RADIUS ARMS,FOX
ZONE 2005-2007 FORD F-250,F-350 4WD GAS 4" SUSPENSION LIFT KIT,RADIUS ARMS,FOX
SKU:STU ZONF22F
Regular price
$1,376.50
Regular price
Sale price
$1,376.50
Unit price
per
Couldn't load pickup availability

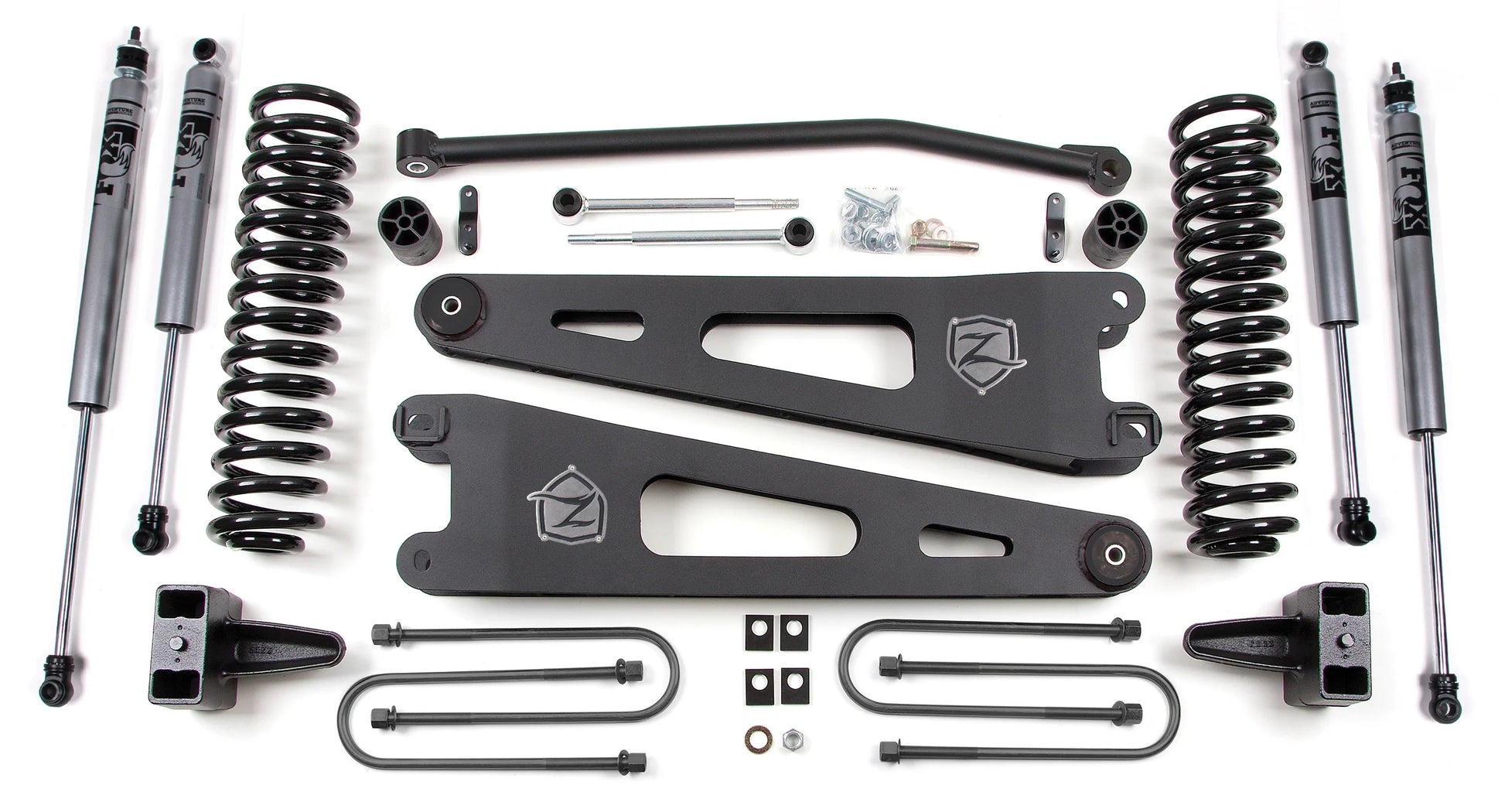

Brand New Zone Offroad 4" Lift Kit with Radius Arms & FOX 2.0 Adventure Shocks (Part #ZONF22F).
Climb up and stand out from the crowd with this 4" Radius Arm Lift Kit that lets you clear 35" tires. You'll definitely make a statement with this kit complete with strong radius arms & cast blocks for your 4WD 2005-2007 Ford F-250/F-350.
Fits:
-
Ford:
- 2005-2007 F-250 Super Duty 4WD Gas
- 2005-2007 F-350 Super Duty 4WD Gas
Notes:
- If your vehicle is equipped with a top mounted overload/helper spring, 4 longer U-bolts may be required.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
-
Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 4.5 in. Backspace, 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, and 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
Features:
- Full length replacement coil springs add additional ride height while maintaining ride quality.
- Heavy-duty track bar re-centers front axle, adds strength and limits lateral movement.
- High-strength, 1/4" steel construction corrects caster, improves tire clearance, and maximizes ground clearance.
- Rear lift block and longer U-bolts for easy installation and level stance.
Fox 2.0 Adventure Series:
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Specs:
-
Front Lift Method: Coil Spring & Radius Arm
-
Front Lift Height: 4"
-
Rear Lift Method: Block
- Rear Lift Height: 3"
You can view and download the assembly/instruction booklet here.
