ZONE 2005-2007 FORD F-250,F-350 4WD DIESEL 4" SUSPENSION LIFT KIT,RADIUS ARM,FOX

ZONE 2005-2007 FORD F-250,F-350 4WD DIESEL 4" SUSPENSION LIFT KIT,RADIUS ARM,FOX

STU ZONF21F

$1,376.50
$1,376.50
View full details

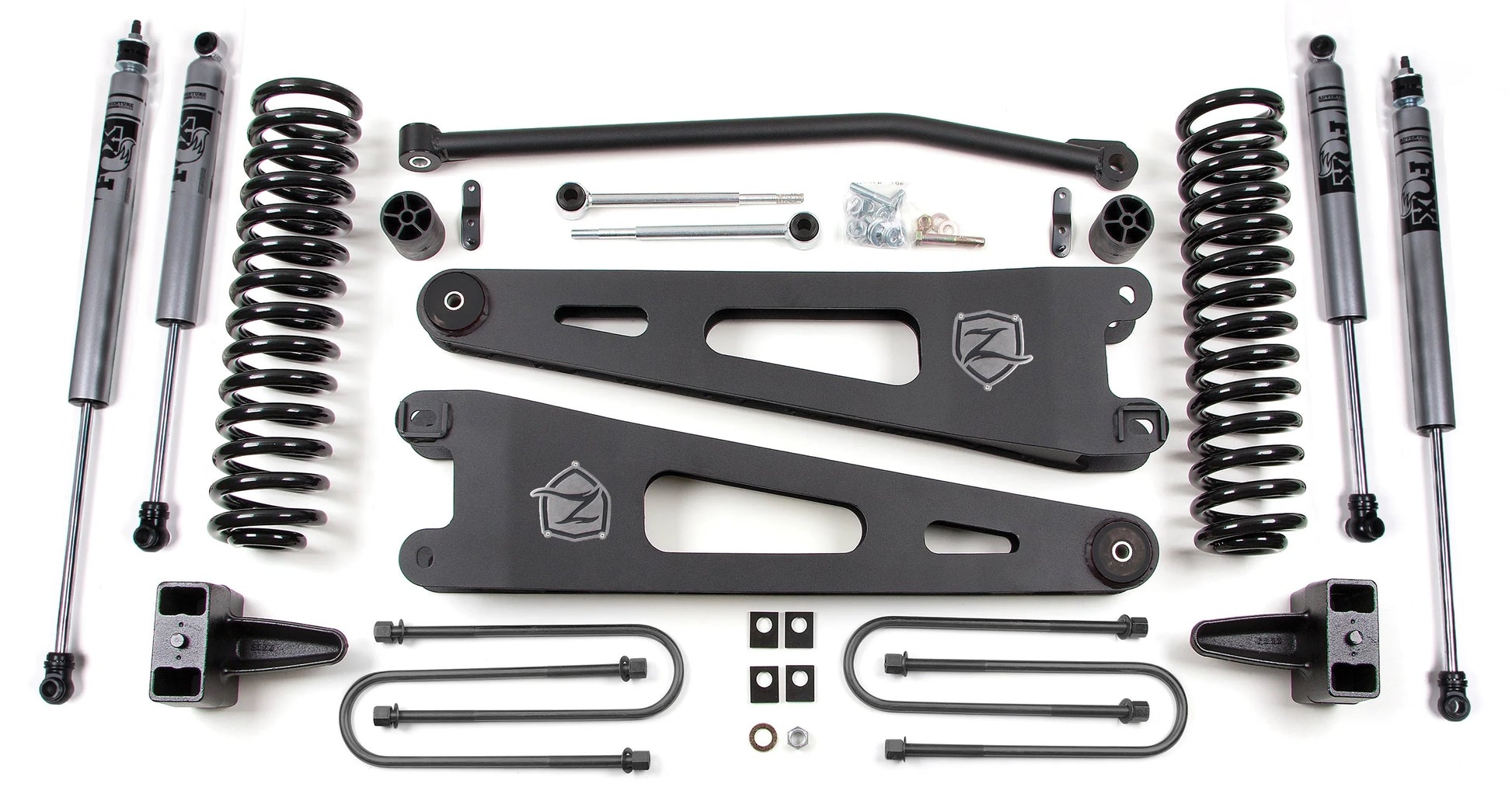

Brand New Zone Offroad 4" Lift Kit with Radius Arms & FOX 2.0 Adventure Shocks (Part #ZONF21F).

Climb up and stand out from the crowd with this 4" Radius Arm Lift Kit that lets you clear 35" tires. You'll definitely make a statement with this kit complete with strong radius arms & cast blocks for your 4WD Diesel 2005-2007 Ford F-250/F-350.

Fits:

  • Ford:
    • 2005-2007 F-250 Super Duty 4WD Diesel
    • 2005-2007 F-350 Super Duty 4WD Diesel

Notes:

  • If your vehicle is equipped with a top mounted overload/helper spring, 4 longer U-bolts may be required.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.

  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 4.5 in. Backspace, 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, and 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

  • Full length replacement coil springs add additional ride height while maintaining ride quality.
  • Heavy-duty track bar re-centers front axle, adds strength and limits lateral movement.
  • High-strength, 1/4" steel construction corrects caster, improves tire clearance, and maximizes ground clearance.
  • Rear lift block and longer U-bolts for easy installation and level stance.

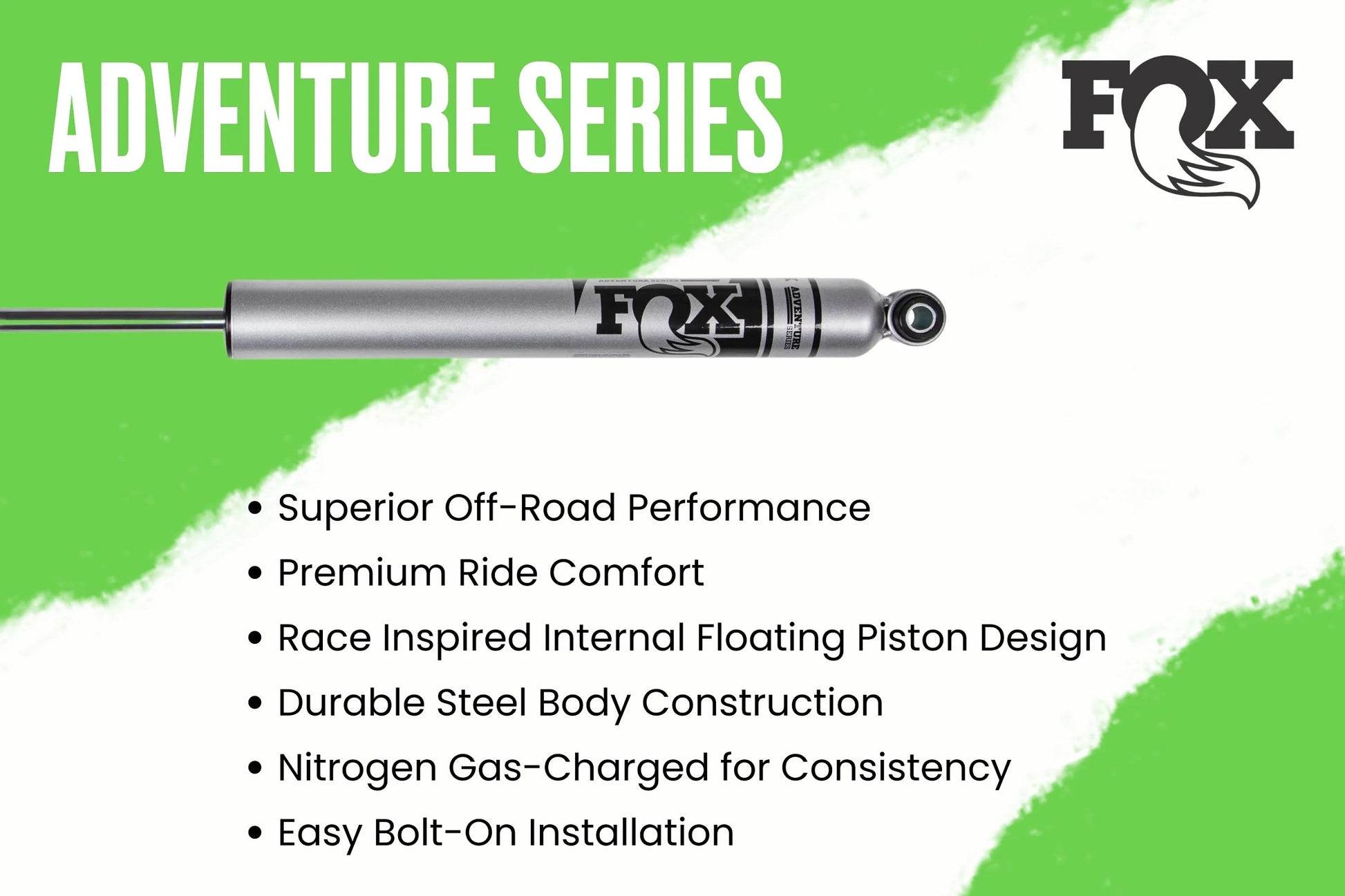

Fox 2.0 Adventure Series:

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring & Radius Arm
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 3"

You can view and download the assembly/instruction booklet here.
