ZONE 1999-2004 F-250,F-350 SUPER-DUTY 4WD W/RADIUSED,4" LIFT KIT,FOX SHOCKS

ZONE 1999-2004 F-250,F-350 SUPER-DUTY 4WD W/RADIUSED,4" LIFT KIT,FOX SHOCKS

SKU:STU ZONF1F

Regular price $1,125.65
Regular price Sale price $1,125.65
View full details

Brand New Zone Offroad 4" Suspension Lift Kit with Radiused U-Bolts with FOX 2.0 Adventure Shocks (Part #ZONF1F).

Climb up and stand out from the crowd with this 4" Lift Kit that will have you clearing 35" tires. You’ll definitely make a statement with this complete with leaf spring & block lift for your 4WD truck.

Notes:

  • Dually applications will require different rear 3-7/8" I.D. u-bolts
  • Will not fit vehicles manufactured before 3-1-1999 with 5/8" track bar bolt head size.
  • Vehicles equipped with 2 piece rear driveshafts may require the carrier bearing to be lowered.
  • If vehicle is equipped with rear top mounted overload springs 4 of U-bolt part number UBT4035 may be required. Selecting the U-bolt option below will add four (4) UBT4035s to the base kit.
  • Trucks equipped with gas engine may achieve a slightly higher front stance.

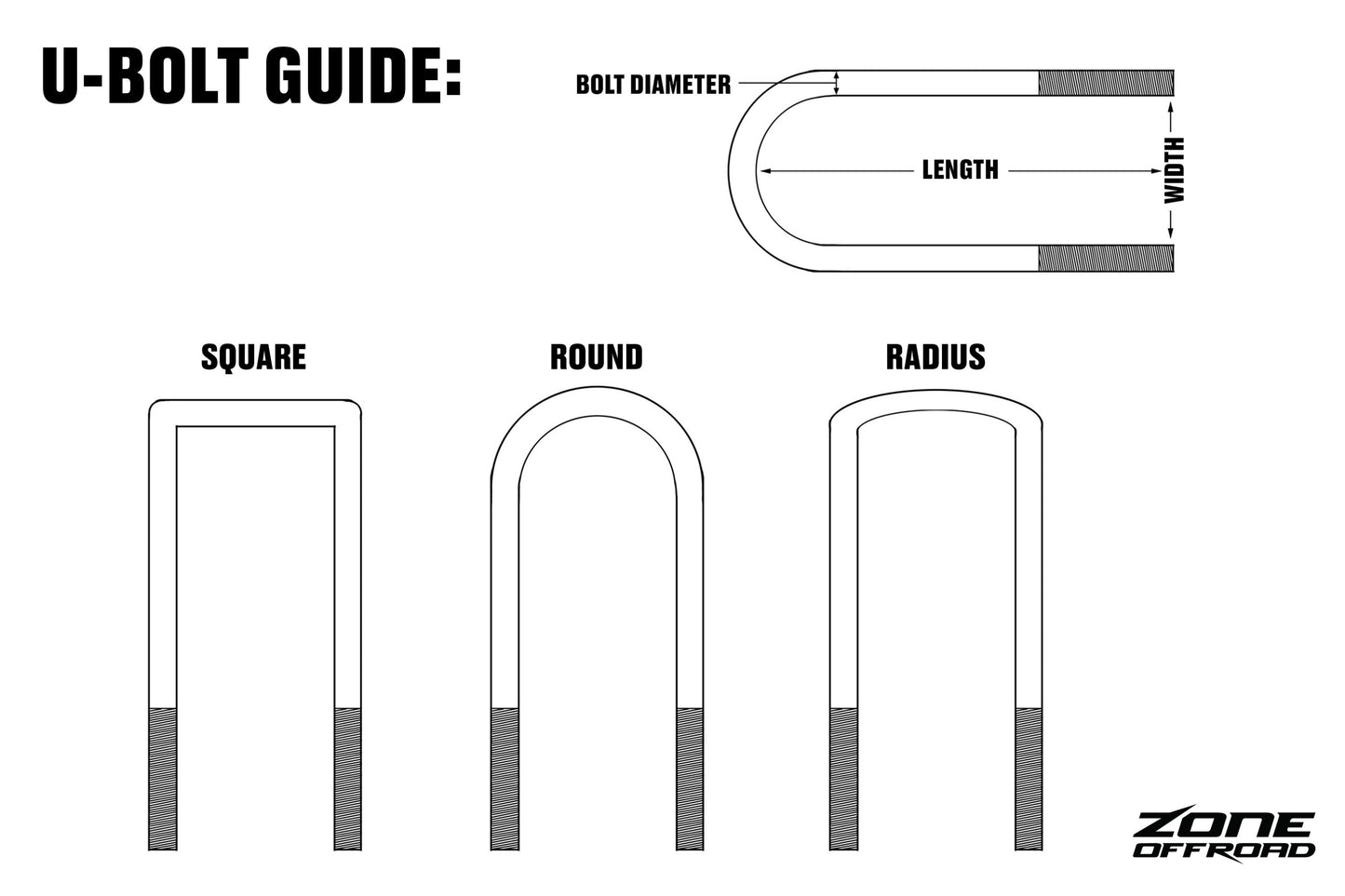

  • If truck is equipped with curved/radiused style front u-bolts order kit # F1. If truck is equipped with square style front u-bolts order kit # F2

Fits:

  • Ford:
    • 1999-2004 F-250 Super Duty 4WD with Radiused Front U-Bolts
    • 1999-2004 F-350 Super Duty 4WD with Radiused Front U-Bolts

Features:

  • New front leaf springs with bolt style leaf alignment clamps, anti-friction pads, OE style rubber bushings and tapered leaves for long term performance and great ride quality
  • 1-1/4" Solid steel track bar with urethane mounts to properly center the axle
  • New front & Rear U-bolt with high nuts & washers
  • Rear 3" Block kit

Fox 2.0 Adventure Series Shocks Features:

  • Body Plating: Thick silver powder coat
  • Body: 2.0 Smooth bore and honed seamless alloy bodies.
  • Bushings: Quiet nitrile rubber allows for increased suspension articulation
  • Internal Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
  • Mounting: Direct replacement for stock and aftermarket lifts kits
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel

Specs:

  • Front Lift Height: 4"
  • Rear Lift Height: 3"
  • Front Lift Method: Leaf Springs
  • Rear Lift Method: Block Kit
  • Lift Type: Lift Kit
  • Wheel Size: 16 x 10
  • Back Spacing: 4"
  • Max Tire Size: 35 x 12.5
  • Cutting Required: No
  • Accommodates Factory Wheels: No
  • Welding Required: No

You can view and download the assembly/instruction booklet here.
