ZONE 2011-2016 F-250,F-350 SUPER-DUTY GAS W/O OVERLOAD 4" LIFT KIT,NITRO

ZONE 2011-2016 F-250,F-350 SUPER-DUTY GAS W/O OVERLOAD 4" LIFT KIT,NITRO

STU ZONF18N

$856.60
$856.60
View full details

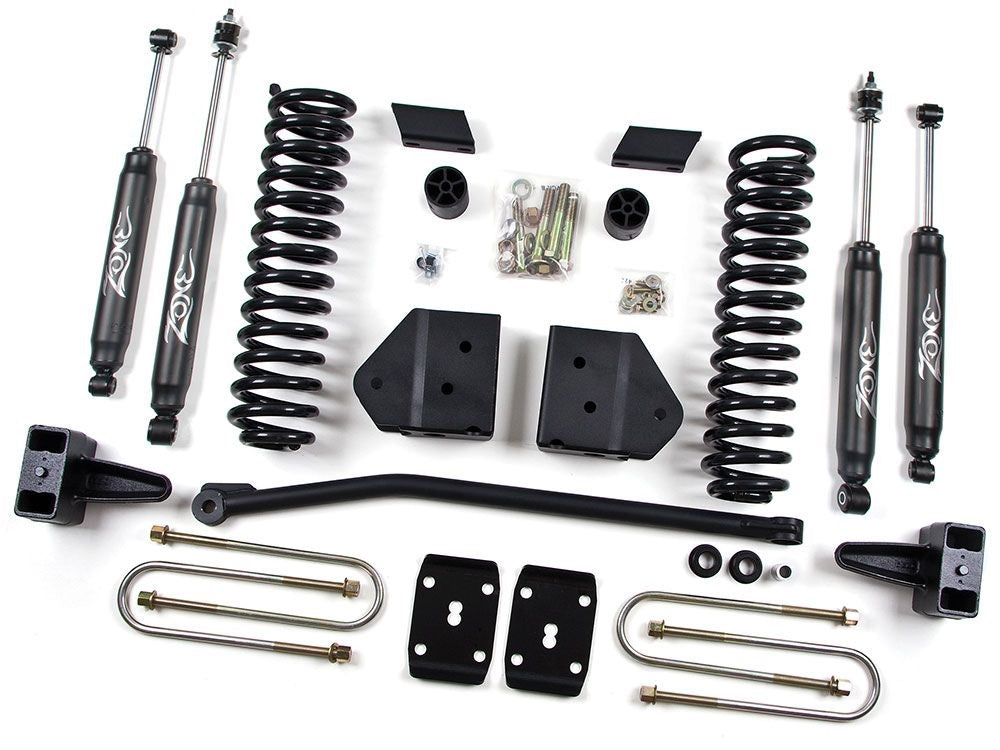

Brand New Zone Offroad 4" Standard Lift Kit with Zone Nitro Shocks (Part #ZONF18N).

Make a statement with this 4"Lift Kit that will let you clear those 35" tires. This kit has everything you need to give you the ride you want and the look that’s going to get a lot of attention.

Notes:

  • Driveline Notice: Although extremely rare, front and/or rear driveline vibration may occur and require driveline modification.
  • Fitment: This kit is not designed for dually models, but may me easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
  • Lift Block Selection: This lift will require replacing your truck’s factory rear block to achieve a level stance; total height gained will vary depending on the size of the factory block.
  • Mod's Required: Exhaust modification may be required to clear the front driveshaft on gas models. See installation instructions for more information.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.

Fits:

  • Ford:
    • 2011-2016 F-250 Super Duty 4WD Gas without Overload Springs
    • 2011-2016 F-350 Super Duty 4WD Gas without Overload Springs

Features:

  • Full length replacement coil springs add additional ride height while maintaining ride quality.
  • Heavy-duty track bar re-centers front axle, adds strength and limits lateral movement.
  • High-strength, black e-coated U-bolts.
  • Radius arm drop brackets correction position front axle allowing use of the factory radius arms.
  • Rear lift block and longer U-bolts for easy installation and level stance.

Nitro Series Shocks Features:

  • Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance
  • Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft
  • Bushings and sleeves included for easy, direct replacement installation

Specs:

  • Front Lift Height: 4"
  • Rear Lift Height: 3"
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Cast Blocks
  • Lift Type: Lift Kit
  • Wheel Size: 17 x 9
  • Back Spacing: 4.5"
  • Max Tire Size: 35 x 12.5
  • Wheel Size 2: 18 x 9
  • Back Spacing 2: 4.5"
  • Max Tire Size 2: 35 x 12.5
  • Wheel Size 3: 20 x 9
  • Back Spacing 3: 4.5"
  • Max Tire Size 3: 35 x 12.5
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

You can view and download the assembly/instruction booklet here.
