ZONE 2017-2019 F250,F350 4WD DIESEL BLOCK,6" SUSPENSION LIFT KIT,FOX SHOCKS

ZONE 2017-2019 F250,F350 4WD DIESEL BLOCK,6" SUSPENSION LIFT KIT,FOX SHOCKS

STU ZONF111F

$1,463.55
$1,463.55
View full details

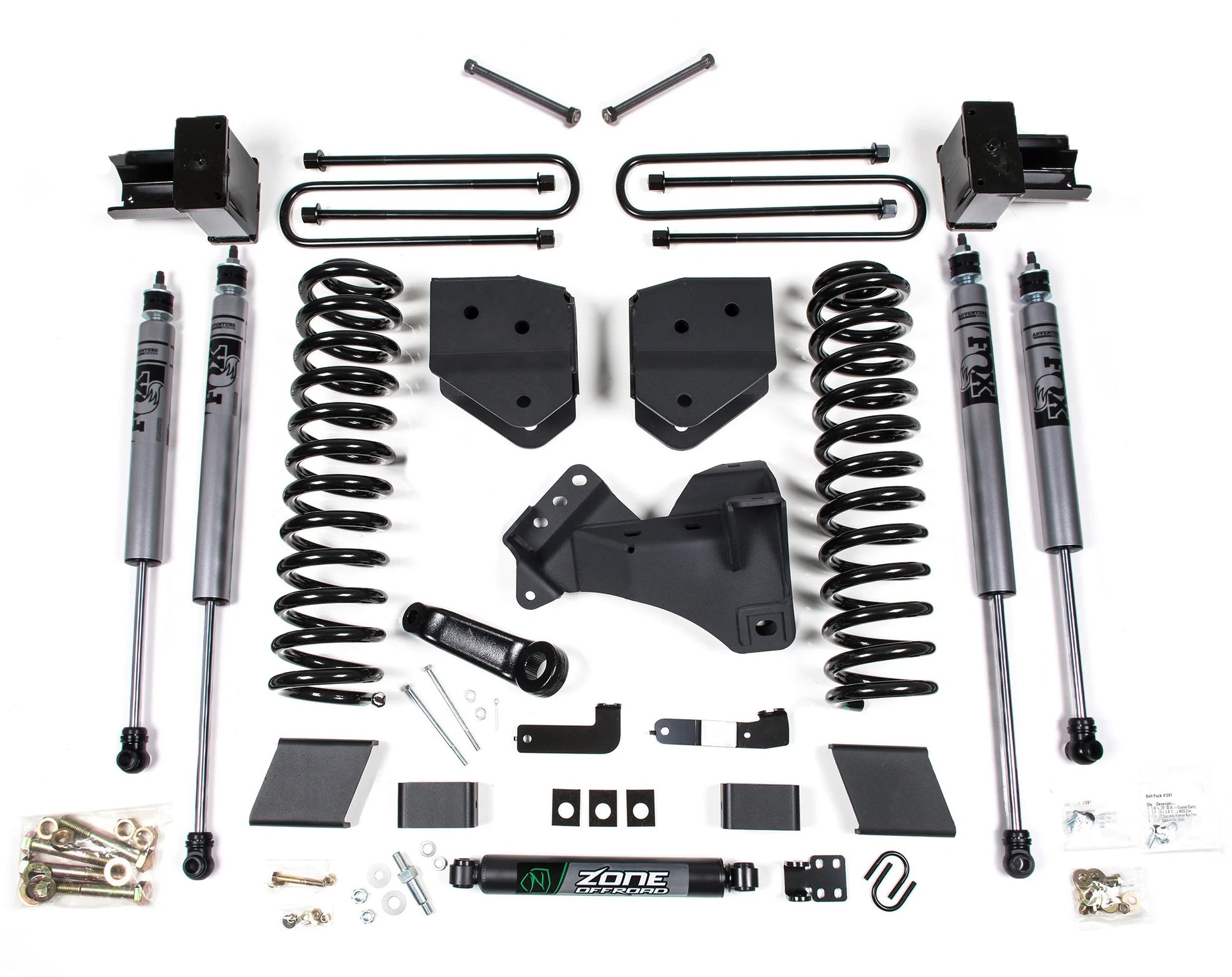

Brand New Zone Offroad 6" Lift Kit with Block Kit & Fox 2.0 Adventure Shocks (Part #ZONF111F).

Take your Super Duty to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed to reliably lift your truck and the capability to run up to 37" tires, including coil springs, radius arm drop brackets, steering correction and rear lift blocks with add-a-leafs to get the stance and performance you want. Get the look, performance, and capability your truck deserves!

Fits:

  • Ford:
    • 2017-2019 F-250 Super Duty 4WD Diesel
    • 2017-2019 F-350 Super Duty 4WD Diesel

Notes:

  • Check your rear springs to determine if your truck is equipped with standard, 2-leaf main, or heavy payload 3-leaf main spring pack with an overload spring.
  • Factory Overload = 3 Leaf, No overload = 2 Leaf
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid / eliminate driveshaft vibration.

  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 20 x 9 and 4.5 in. Backspace, 37 x 12.5 with 18 x 9 and 4.5 in. Backspace, and 37 x 12.5 with 17 x 9 and 4.5 in. Backspace

Features:

  • High strength front coil springs improve ride quality.
  • Radius arm drop brackets to correct caster and maintain suspension geometry.
  • Forged pitman arm and track bar relocation bracket to correct steering angles and re-center front axle.
  • Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles.
  • Replacement 3" rear lift block for a leveled stance

Fox 2.0 Adventure Series:

  • Body Plating: Thick silver powder coat
  • Body: 2.0 Smooth bore and honed seamless alloy bodies.
  • Bushings: Quiet nitrile rubber allows for increased suspension articulation
  • Internal Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
  • Mounting: Direct replacement for stock and aftermarket lifts kits
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel

Specs:

  • Front Lift Method: Coil Spring & Drop Bracket
  • Front Lift Height: 6"
  • Rear Lift Method: Block Kit
  • Rear Lift Height: 4"

You can view and download the assembly/instruction booklet here.
