ZONE 1999-2004 F-250,F-350 SUPER-DUTY 4WD WITH RADIUSED U-BOLTS,4" LIFT KIT

ZONE 1999-2004 F-250,F-350 SUPER-DUTY 4WD WITH RADIUSED U-BOLTS,4" LIFT KIT

SKU:STU ZONF1

Regular price $685.85
Regular price Sale price $685.85
View full details

Brand New Zone Offroad 4" Suspension Lift Kit with Radiused U-Bolts (Part #ZONF1).

Climb up and stand out from the crowd with this 4" Lift Kit that will have you clearing 35" tires. You’ll definitely make a statement with this complete with leaf spring & block lift for your 4WD truck.

Notes:

  • Dually applications will require different rear 3-7/8" I.D. u-bolts
  • Will not fit vehicles manufactured before 3-1-1999 with 5/8" track bar bolt head size.
  • Vehicles equipped with 2 piece rear driveshafts may require the carrier bearing to be lowered.
  • If vehicle is equipped with rear top mounted overload springs 4 of U-bolt part number UBT4035 may be required. Selecting the U-bolt option below will add four (4) UBT4035s to the base kit.
  • Trucks equipped with gas engine may achieve a slightly higher front stance.

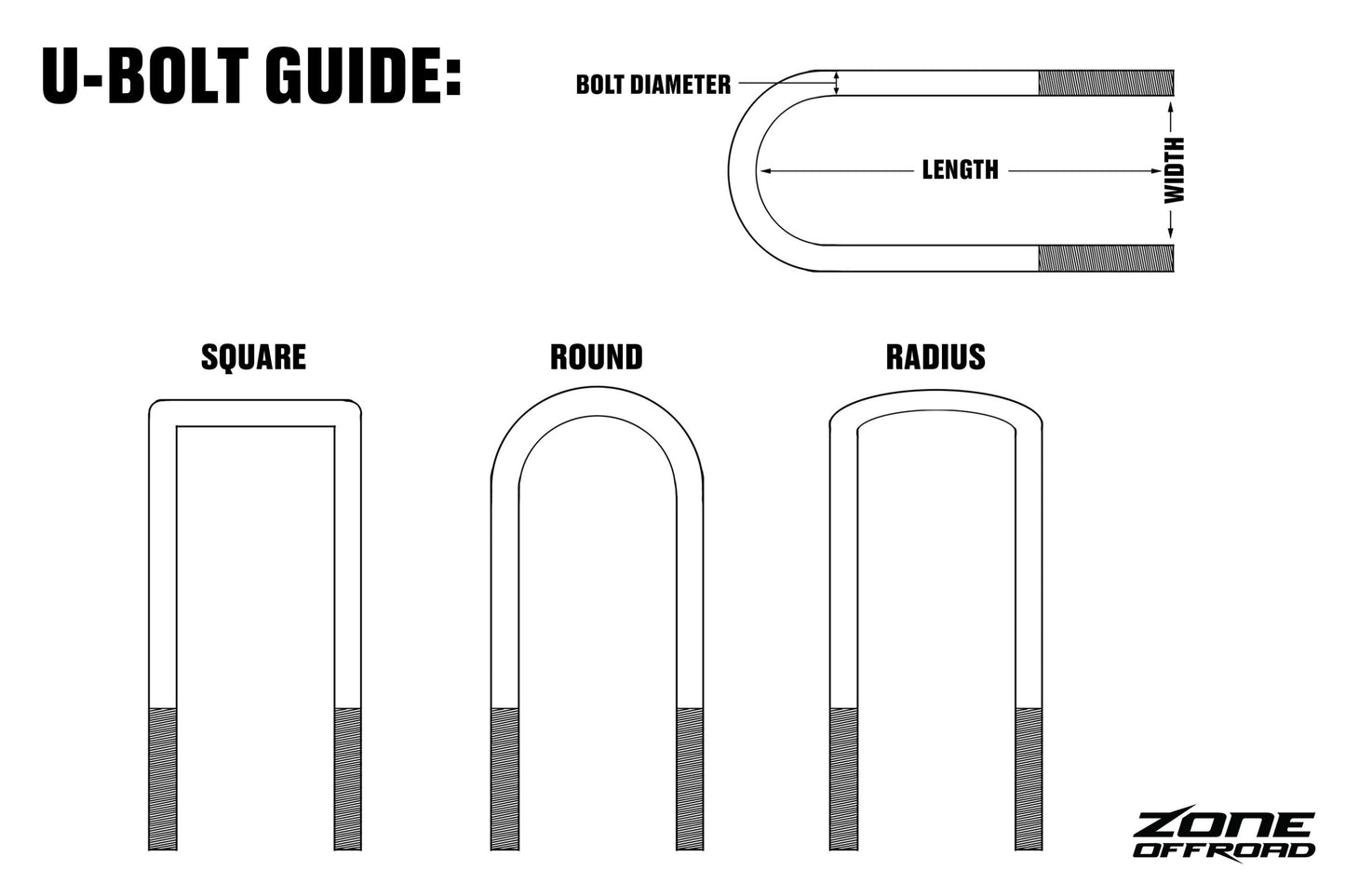

  • If truck is equipped with curved/radiused style front u-bolts order kit # F1. If truck is equipped with square style front u-bolts order kit # F2

Fits:

  • Ford:
    • 1999-2004 F-250 Super Duty 4WD with Radiused Front U-Bolts
    • 1999-2004 F-350 Super Duty 4WD with Radiused Front U-Bolts

Features:

  • New front leaf springs with bolt style leaf alignment clamps, anti-friction pads, OE style rubber bushings and tapered leaves for long term performance and great ride quality
  • 1-1/4" Solid steel track bar with urethane mounts to properly center the axle
  • New front & Rear U-bolt with high nuts & washers
  • Rear 3" Block kit

Specs:

  • Front Lift Height: 4"
  • Rear Lift Height: 3"
  • Front Lift Method: Leaf Springs
  • Rear Lift Method: Block Kit
  • Lift Type: Lift Kit
  • Wheel Size: 16 x 10
  • Back Spacing: 4"
  • Max Tire Size: 35 x 12.5
  • Cutting Required: No
  • Accommodates Factory Wheels: No
  • Welding Required: No

You can view and download the assembly/instruction booklet here.
