ZONE 2014-2018 RAM 2500 4WD DIESEL 6.5" RADIUS ARM LIFT KIT

ZONE 2014-2018 RAM 2500 4WD DIESEL 6.5" RADIUS ARM LIFT KIT

STU ZOND58

$1,234.60
$1,234.60
View full details

Brand New Zone Offroad 6.5" Radius Arm Lift Kit (Part #ZOND58).

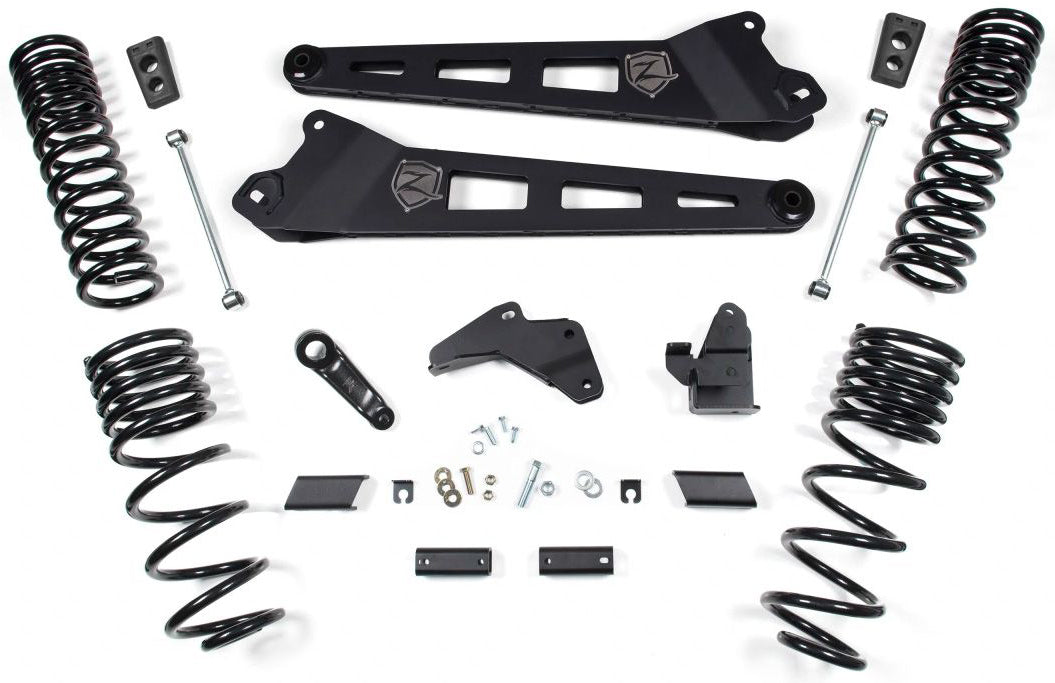

Take your RAM 2500 to new heights with this 6.5" lift kit from Zone Offroad. Kits include everything needed from front/rear coil springs and stout radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Fits:

  • Ram:
    • 2014-2018 2500 4WD Diesel

Features:

  • Progressive rate front and rear coil springs improve ride quality and offroad performance while lifting and leveling the stance
  • HD radius arm to correct caster while maximizing ground clearance
  • Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
  • Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles
  • Bump stop extensions, track bar bracket and sway bar correction to correct suspension geometry

Specs:

  • Front Lift Height: 6.5"
  • Rear Lift Height: 4.5"
  • Front Lift Method: Radius Arm Drop
  • Rear Lift Method: Coil Springs
  • Lift Type: Lift Kit
  • Wheel Size: 17 x 9
  • Back Spacing: 4.5"
  • Max Tire Size: 37 x 12.5
  • Wheel Size 2: 18 x 9
  • Back Spacing 2: 5.75"
  • Max Tire Size 2: 37 x 12.5
  • Wheel Size 3: 20 x 9
  • Back Spacing 3: 5.75"
  • Max Tire Size 3: 37 x 12.5
  • Is Adjustable: No
  • Finish: Powdercoat
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

Notes:

  • Front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
  • Fitment: Does NOT work for models with factory rear airbag suspension.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • Will not fit Power Wagon models.
You can view and download the complete assembly instruction booklets for this kit HERE and HERE.
