ZONE 2014-2018 RAM 2500 4WD DIESEL 6.5" STANDARD LIFT KIT,NITRO SHOCKS
ZONE 2014-2018 RAM 2500 4WD DIESEL 6.5" STANDARD LIFT KIT,NITRO SHOCKS
SKU:STU ZOND53N

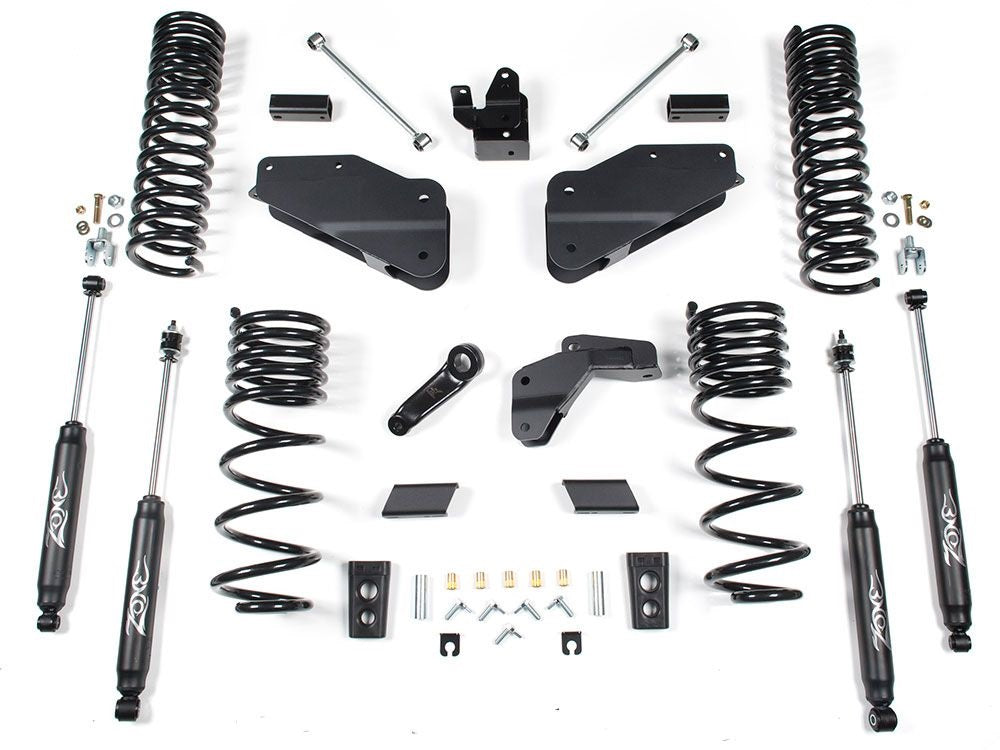

Brand New Zone Offroad 6.5" Standard Lift Kit with Zone Nitro Shocks (Part #ZOND53N).
Take your truck to new heights with this 6.5" lift kit from Zone Offroad. Kits include everything needed from front/rear coil springs and stout radius arm relocation brackets to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.
Notes:
- Front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
- Fitment: Does NOT work for models with factory rear airbag suspension.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
- Will not fit Power Wagon models.
Fits:
- Ram:
- 2014-2018 2500 4WD Diesel
Features:
- Progressive rate front and rear coil springs improve ride quality and off-road performance while lifting and leveling the stance
- Radius arm drop brackets to correct caster and improve suspension geometry
- Forged pitman arm and track bar relocation bracket to correct steering angles and re-center front axle
- Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles
- Bump stop extensions, track bar bracket and sway bar correction to correct suspension geometry
Nitro Series Shocks Features:
- Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance
- Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft
- Bushings and sleeves included for easy, direct replacement installation
Specs:
- Front Lift Height: 6.5"
- Rear Lift Height: 4.5"
- Front Lift Method: Radius Arms
- Rear Lift Method: Coil Springs
- Lift Type: Lift Kit
- Wheel Size: 17 x 9
- Back Spacing: 4.5"
- Max Tire Size: 35 x 12.5
- Wheel Size 2: 18 x 9
- Back Spacing 2: 5.75"
- Max Tire Size 2: 37 x 12.5
- Wheel Size 3: 20 x 9
- Back Spacing 3: 5.75"
- Max Tire Size 3: 37 x 12.5
- Cutting Required: No
- Accommodates Factory Wheels: See Notes
- Welding Required: No
You can view and download the assembly/instruction booklet here and here.
