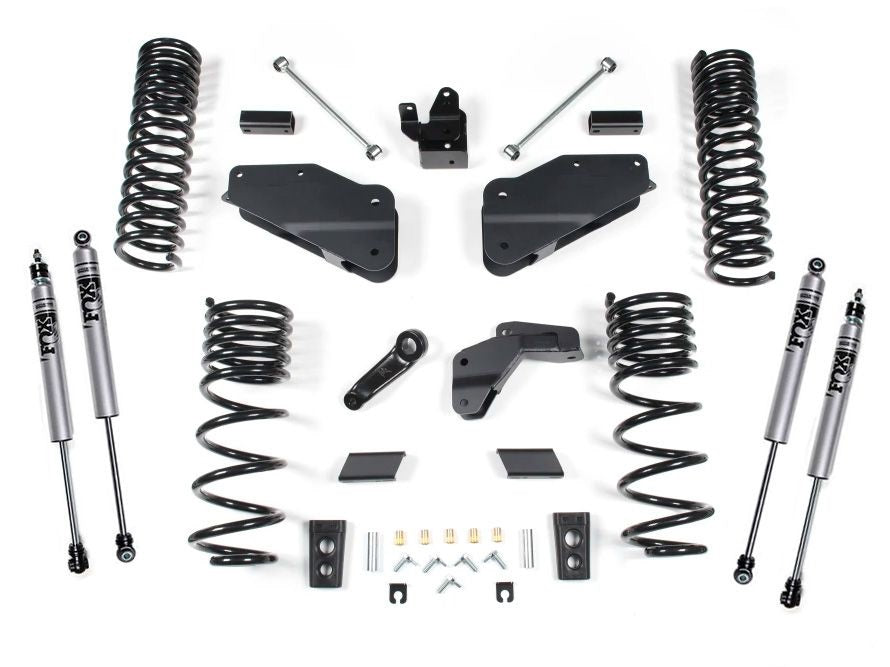

ZONE 2014-2018 RAM 2500 4WD DIESEL 6.5" STANDARD LIFT KIT,FOX SHOCKS

ZONE 2014-2018 RAM 2500 4WD DIESEL 6.5" STANDARD LIFT KIT,FOX SHOCKS

STU ZOND53F

$1,474.50
$1,474.50
View full details

Brand New Zone Offroad 6.5" Standard Lift Kit with FOX 2.0 Adventure Shocks (Part #ZOND53F).

Take your truck to new heights with this 6.5" lift kit from Zone Offroad. Kits include everything needed from front/rear coil springs and stout radius arm relocation brackets to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Notes:

  • Front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
  • Fitment: Does NOT work for models with factory rear airbag suspension.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • Will not fit Power Wagon models.

Fits:

  • Ram:
    • 2014-2018 2500 4WD Diesel

Features:

  • Progressive rate front and rear coil springs improve ride quality and off-road performance while lifting and leveling the stance
  • Radius arm drop brackets to correct caster and improve suspension geometry
  • Forged pitman arm and track bar relocation bracket to correct steering angles and re-center front axle
  • Extended bump stops, sway bar relocation and brake line relocation to maintain factory-like operating angles
  • Bump stop extensions, track bar bracket and sway bar correction to correct suspension geometry

Fox 2.0 Adventure Series Shocks Features:

  • Body Plating: Thick silver powder coat
  • Body: 2.0 Smooth bore and honed seamless alloy bodies.
  • Bushings: Quiet nitrile rubber allows for increased suspension articulation
  • Internal Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
  • Mounting: Direct replacement for stock and aftermarket lifts kits
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel

Specs:

  • Front Lift Height: 6.5"
  • Rear Lift Height: 4.5"
  • Front Lift Method: Radius Arms
  • Rear Lift Method: Coil Springs
  • Lift Type: Lift Kit
  • Wheel Size: 17 x 9
  • Back Spacing: 4.5"
  • Max Tire Size: 35 x 12.5
  • Wheel Size 2: 18 x 9
  • Back Spacing 2: 5.75"
  • Max Tire Size 2: 37 x 12.5
  • Wheel Size 3: 20 x 9
  • Back Spacing 3: 5.75"
  • Max Tire Size 3: 37 x 12.5
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

You can view and download the assembly/instruction booklet here and here.
