ZONE 2006-2008 DODGE RAM 1500 4WD 6" STRUT SPACER LIFT KIT,FOX SHOCKS

ZONE 2006-2008 DODGE RAM 1500 4WD 6" STRUT SPACER LIFT KIT,FOX SHOCKS

STU ZOND4F

$1,473.65
$1,473.65
View full details

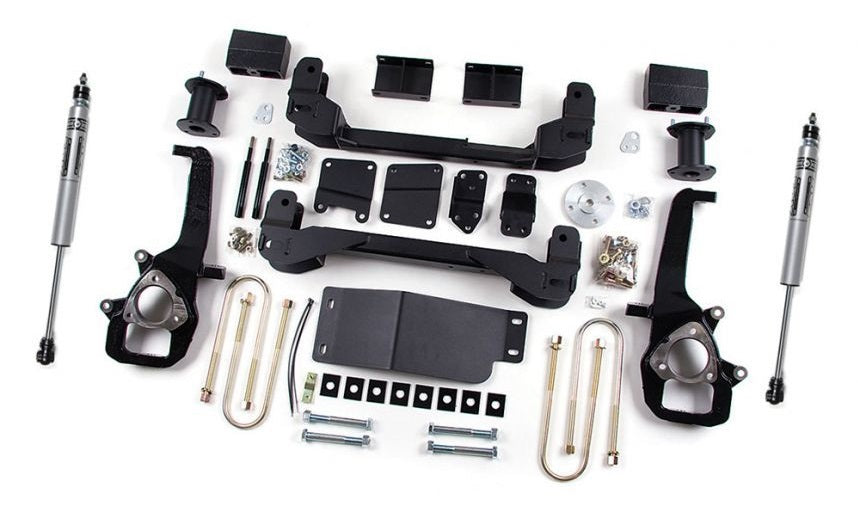

Brand New Zone Offroad 6" Strut Spacer Lift Kit with FOX 2.0 Adventure Shocks (Part #ZOND4F).

Take your truck to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Notes:

  • Not recommended for AWD models.
  • TRX models require removal of the lower skid plate but it is replaced in our lift system.
  • Will not fit MegaCab models.

Fits:

  • Dodge:
    • 2006-2008 Ram 1500 4WD

Features:

  • High strength crossmembers to correct lower control arm positioning
  • Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential relocation brackets to correct CV operating angle
  • Differential skid plate offers improved off-road protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Sway bar extension and driveshaft spacer and alignment cam bolts to correct operating angles

Fox 2.0 Adventure Series Shocks Features:

  • Body Plating: Thick silver powder coat
  • Body: 2.0 Smooth bore and honed seamless alloy bodies.
  • Bushings: Quiet nitrile rubber allows for increased suspension articulation
  • Internal Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
  • Mounting: Direct replacement for stock and aftermarket lifts kits
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel

Specs:

  • Front Lift Height: 6"
  • Rear Lift Height: N/A
  • Front Lift Method: Strut Spacers
  • Rear Lift Method: Cast Blocks
  • Lift Type: Lift Kit
  • Wheel Size: 17 x 9
  • Back Spacing: 4.5"
  • Max Tire Size: 37 x 12.5
  • Wheel Size 2: 18 x 9
  • Back Spacing 2: 5"
  • Max Tire Size 2: 37 x 12.5
  • Wheel Size 3: 20 x 9
  • Back Spacing 3: 5"
  • Max Tire Size 3: 37 x 12.5
  • Cutting Required: No
  • Accommodates Factory Wheels: No
  • Welding Required: No

You can view and download the assembly/instruction booklet here.
