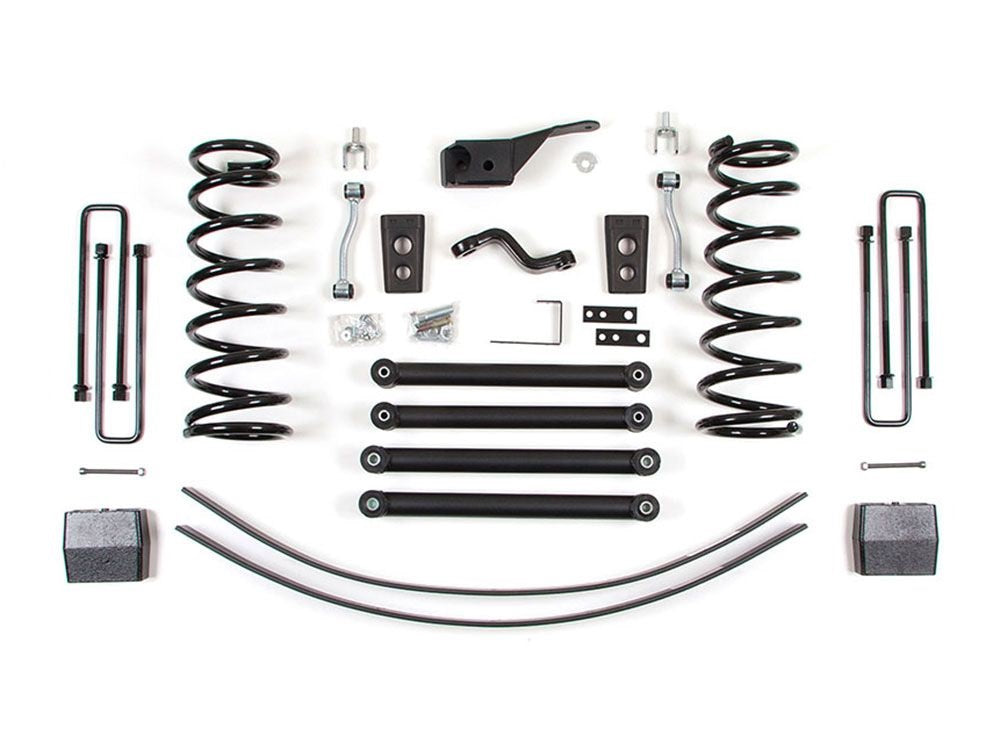

ZONE 1994-1999 DODGE RAM 1500 4WD 5" COIL SPRING LIFT KIT

ZONE 1994-1999 DODGE RAM 1500 4WD 5" COIL SPRING LIFT KIT

STU ZOND44

$715.85
$715.85
View full details

Brand New Zone Offroad 5" Coil Spring Lift Kit (Part #ZOND44).

This Zone Off-Road D44 5 inch lift kit for the Dodge Ram 1500 4wd truck is a great way to fit larger diameter tires (35 inch diameter) and transform your truck into an off-road machine. This 5 inch system features upper and lower extended heavy-duty control arms with greaseable polyurethane bushings to properly center the axle and correct caster. The dropped pitman arm combined with the HD track bar bracket corrects the steering geometry and centers the axle.

Notes:

  • Factory block is replaced with 5" block and add-a-leaf combo to obtain a level stance.
  • Factory wheels fit when paired with factory / original equipment tire size.
  • Fitment: 2001 models with "Offroad Package" will not yield a full 5" of lift.
  • Fitment: Will NOT fit models built before February 9, 1994 due to track bar stud size.
  • Steering Stabilizer Required: Due to the factory drag link flip when installing this kit the factory steering stabilizer cannot be reinstalled.

Fits:

  • Dodge:
    • 1994-1999 Ram 1500 4WD

Features:

  • 100% bolt-on design for easy installation.
  • Bump stop extensions properly limit up-travel, protecting your vehicle.
  • Heavy-duty upper and lower control arms improve strength and articulation while correcting caster.
  • Heavy-duty front track bar bracket correctly positions front axle under vehicle.
  • Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.

Specs:

  • Front Lift Height: 5"
  • Rear Lift Height: 5"
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Add-A-Leaf & Cast Block
  • Lift Type: Lift Kit
  • Wheel Size: 16 x 8
  • Back Spacing: 4"
  • Max Tire Size: 35 x 12.5
  • Wheel Size 2: 17 x 9
  • Back Spacing 2: 4"
  • Max Tire Size 2: 35 x 12.5
  • Wheel Size 3: 18 x 9
  • Back Spacing 3: 4"
  • Max Tire Size 3: 35 x 12.5
  • Is Adjustable: No
  • Finish: Powdercoated
  • Cutting Required: No
  • Welding Required: No

    You can view and download the complete assembly instruction booklet here.
