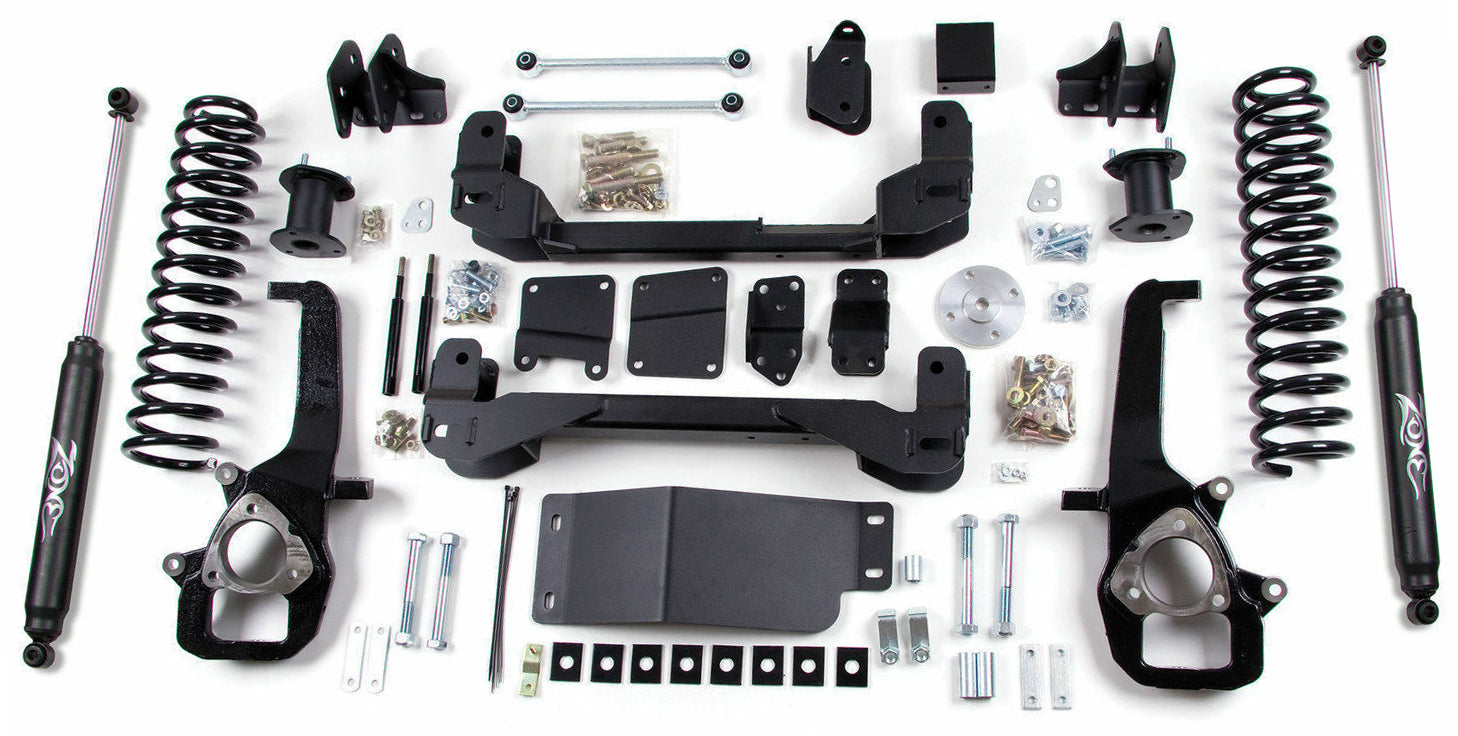

Brand New Zone Offroad 6" Lift Kit with Front Strut Spacers, Rear Nitro Shocks, & 5" Rear Springs on Factory 0-1" Rear Lift (Part #ZOND41N).

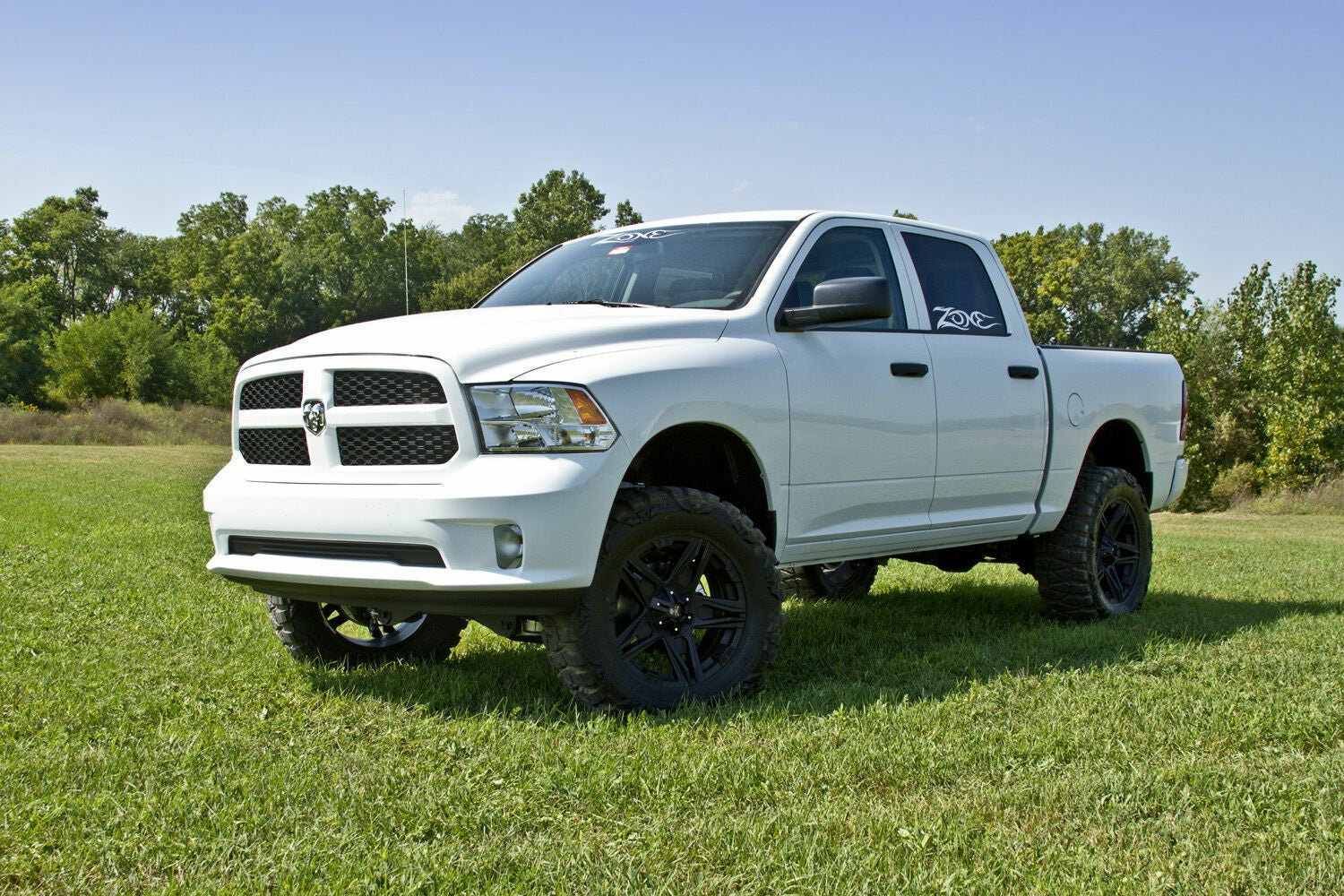

The Zone Offroad 6-inch Lift Kit for 2013–2018 Ram 1500 4x4 trucks delivers aggressive stance, larger tire clearance, and OE-quality engineering for both on- and off-road performance. Designed by our team of engineers in Coldwater, Michigan to OE standards, this system features heavy-duty steering knuckles that are cast in the USA, while all fabricated steel components are locally manufactured and powder coated for long-lasting durability and corrosion resistance. The 6-inch lift allows clearance for up to 37 x 12.50 tires on wheels with 4.5 inches of backspacing, giving your Ram a commanding presence and enhanced capability. Up front the OE strut spacers retain the factory front struts and a pair of Nitro Series rear shocks for improved performance. In the rear is a 5-inch block to retain most of the factory rake, allowing you to tailor the stance and functionality of your lifted Ram.
Fits:
- Ram:
- 2013-2018 1500 4WD
Notes:
- Does NOT work with all wheel drive (AWD) models.
- This kit is not recommended for TRX models. CV shaft vibration will occur on TRX models unless the TRX struts are replaced with standard struts. Instead, consider our 4" lift system for about 5" of TRX lift.
- Will NOT fit adjustable air suspension (air-ride) equipped models. Fitment: Does not fit eco-diesel models. Front drive shaft WILL fail prematurely.
- These trucks are typically between 1" and 3" tail high from the factory. Please measure your trucks factory front-to-back ride height and order the rear lift height to achieve the desired stance. If closer to 1" tail high from the factory order the 5" rear coils for a more level stance. If closer to 3" tail high from the factory order the 3" rear coils for a more level stance.
- Stock 17" wheels CAN NOT be re-installed.
- Stock 20" can be re-installed with factory tire.
- Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 4.5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace
- These vehicles vary from 1" to 3" tail high from the factory. BDS offers both 3" and 5" rear kits. Be sure to measure your vehicle and order the appropriate rear lift height to level your truck.
- 3 Inch Coil Springs - Use if your vehicle is 3" tail high from the factory (ZOND40).
- 5 Inch Coil Springs - Use if your vehicle is level to 1" of tail high from the factory (ZOND41).
Features:
- Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
- Heavy-duty differential skid slate improves offroad protection.
- High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
- Top mount strut and preload spacers set ride height and maintain ride quality.
Nitro Series:
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- Self-lubricating seals
- Black powder coat finish
Specs:
- Front Lift Method: Cross Member & Strut Spacer
- Front Lift Height: 6"
- Rear Lift Method: Coil Spring
- Rear Lift Height: 5"
You can view and download the instruction booklet here.
