ZONE 2013-2018 RAM 1500 6/5" STRUT SPACER LIFT KIT WITH TAIL HIGH REAR END

ZONE 2013-2018 RAM 1500 6/5" STRUT SPACER LIFT KIT WITH TAIL HIGH REAR END

STU ZOND41

$1,562.75
$1,562.75
View full details

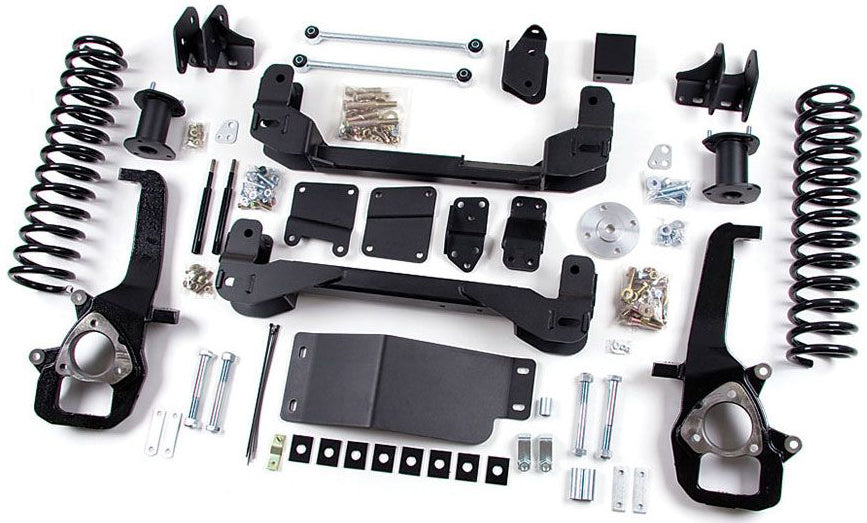

Brand New Zone Offroad 6" Strut Spacer Lift Kit with Tail High Rear End (Part #ZOND41).

Stand out with a brand new, quality, yet affordable 6" suspension lift that lets you clear big 37" tires. Built for everyday driving but sturdy enough for off-road abuse. Get the look and performance you want out of your 4WD 2013 - 2018 Dodge / Ram 1500 Truck.

Fits:

  • Ram:
    • 2013-2018 1500 4WD

Features:

  • This kit includes a 5" rear lift spring for a "Tail High" stance
  • Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
  • Heavy-duty differential skid slate improves offroad protection.
  • High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
  • Top mount strut and preload spacers set ride height and maintain ride quality.

Specs:

  • Front Lift Height: 6"
  • Rear Lift Height: 5"
  • Front Lift Method: Strut Spacers
  • Rear Lift Method: Coil Springs
  • Lift Type: Lift Kit
  • Wheel Size: 17 x 9
  • Back Spacing: 4.5"
  • Max Tire Size: 37 x 12.5
  • Wheel Size 2: 18 x 9
  • Back Spacing 2: 5"
  • Max Tire Size 2: 37 x 12.5
  • Wheel Size 3: 20 x 9
  • Back Spacing 3: 5"
  • Max Tire Size 3: 37 x 12.5
  • Is Adjustable: No
  • Finish: Powdercoat
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

Notes:

  • Fitment: Does NOT work with all wheel drive (AWD) models.
  • Fitment: This kit is not recommended for TRX models. CV shaft vibration will occur on TRX models unless the TRX struts are replaced with standard struts. Instead, consider our 4" lift system for about 5" of TRX lift.
  • Fitment: Will NOT fit adjustable air suspension (air-ride) equipped models.
  • Fitment: Does not fit eco-diesel models. Front drive shaft WILL fail prematurely
  • Lift Block Selection: These trucks are typically between 1" and 3" tail high from the factory. Please measure your trucks factory front-to-back ride height and order the rear lift height to achieve the desired stance. If closer to 1" tail high from the factory order the 5" rear coils for a more level stance. If closer to 3" tail high from the factory order the 3" rear coils for a more level stance.
  • Stock 17" wheels CAN NOT be re-installed. Stock 20" can be re-installed with factory tire.

You can view and download the complete assembly instruction booklet for this kit here.
