ZONE 2009-2013 DODGE RAM 2500,3500 4WD DIESEL,6" COIL SPRING LIFT,FOX SHOCKS

ZONE 2009-2013 DODGE RAM 2500,3500 4WD DIESEL,6" COIL SPRING LIFT,FOX SHOCKS

STU ZOND37F

$1,428.60
$1,428.60
View full details

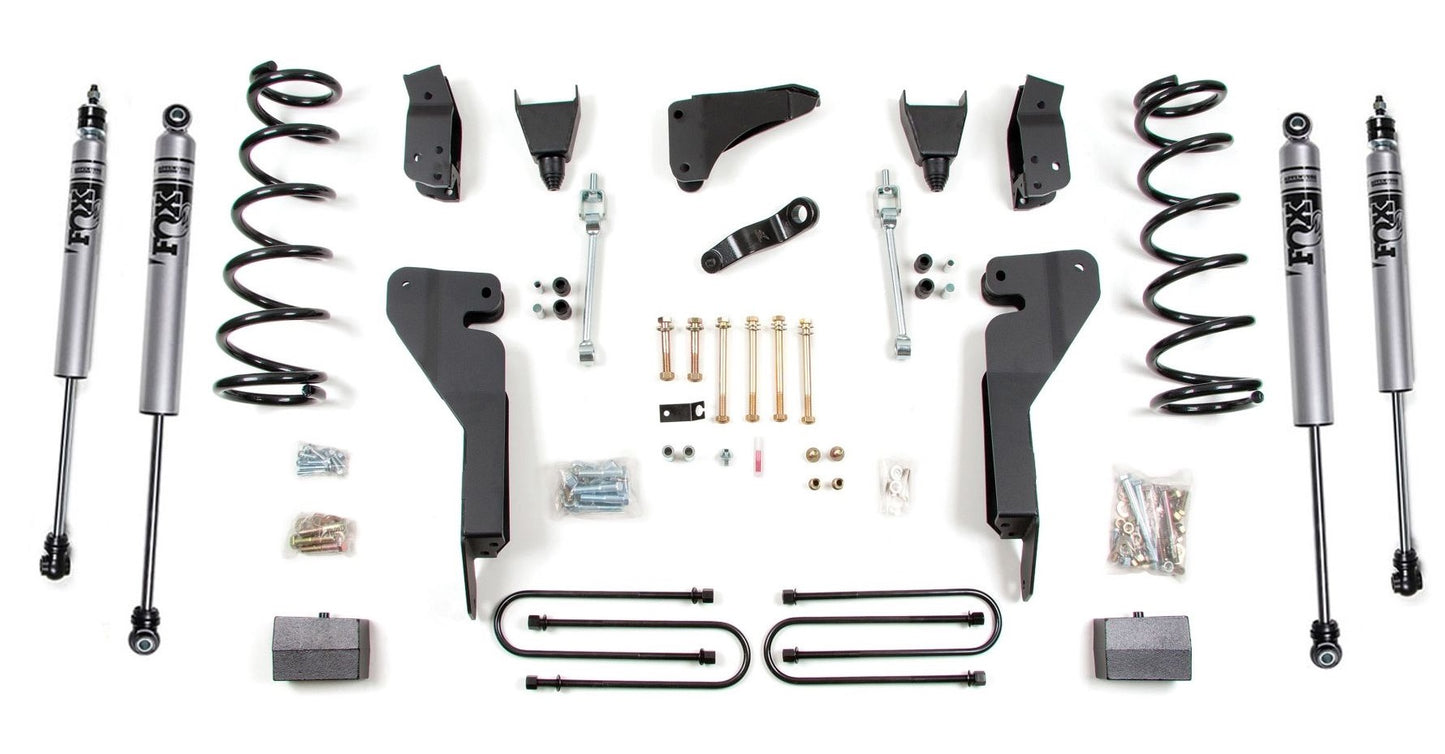

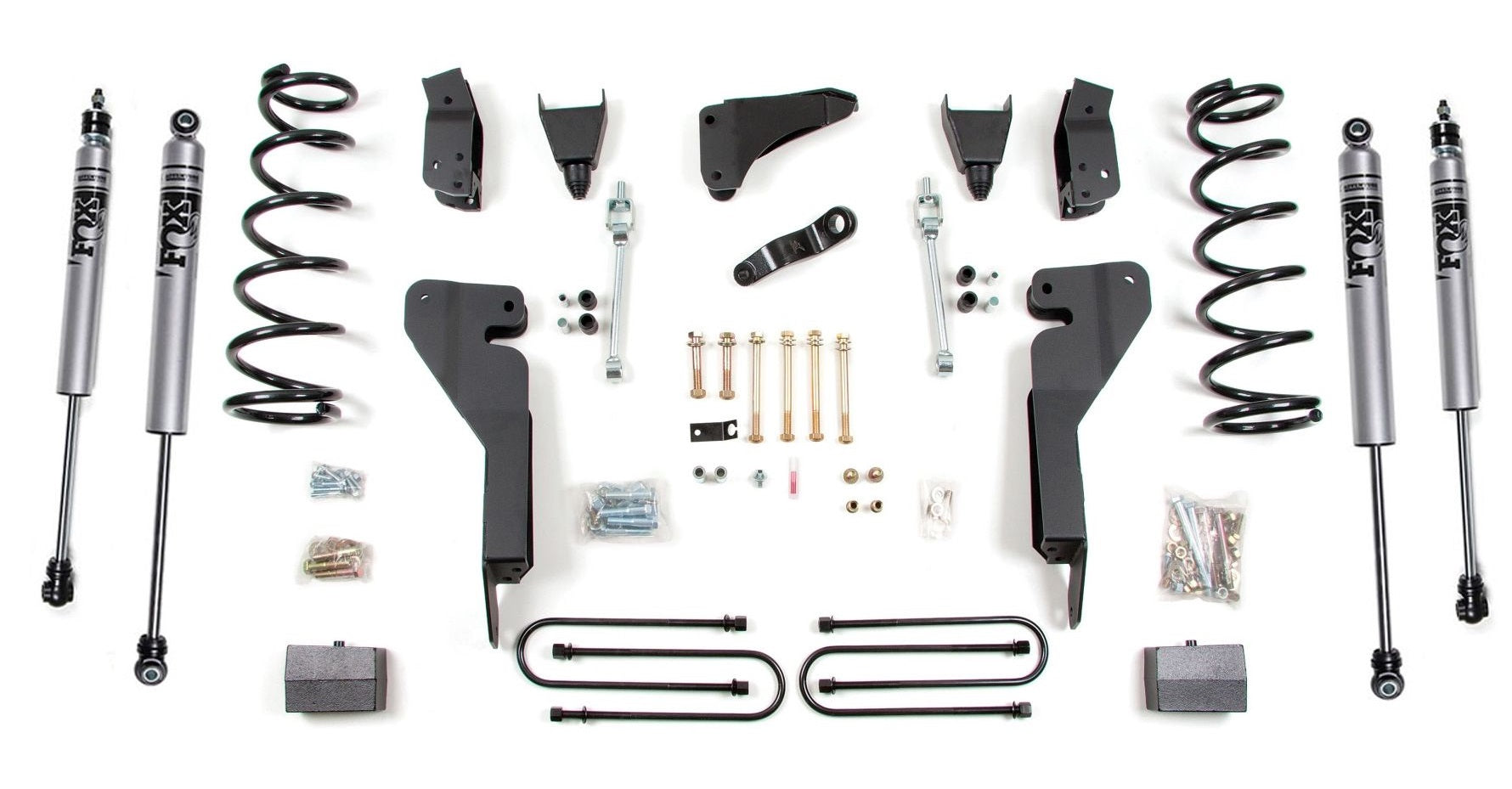

Brand New Zone Offroad 6" Coil Spring Lift Kit with FOX 2.0 Adventure Series Shocks (Part #ZOND37F).

Ready for the big time? Then this is your 6" Lift Kit. You’ll really stand out from the crown when you clear massive 37" tires. Get the look and the performance you want.

Fits:

  • Dodge:
    • 2009-2010 Ram 2500 4WD Diesel with 4" Rear Axle
    • 2009-2010 Ram 3500 4WD Diesel with 4" Rear Axle
  • Ram:
    • 2011-2013 2500 4WD Diesel with 4" Rear Axle
    • 2011-2013 3500 4WD Diesel with 4" Rear Axle

Notes:

  • Check Rear Axle Diameter: This truck was produced using rear axles of differing diameters; measure the diameter of your rear axle to ensure proper kit selection in configuration.
  • Driveline Notice: Although rare, if you experience front driveline vibration, install the optional transfer case indexing ring.
  • Fitment: This kit is not designed for dually models, but may me easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
  • Gas models may require modification to the front exhaust crossover pipe on driver side when using the transfer case indexing ring.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • Wheels / Tires: Adding larger-than-stock wheels? Add front bumper spacers to your kit for additional clearance as some wheel / tire combos may not fully clear the bumper’s stock location.
  • Works on 2013 2500 with 4 link front suspension only. Will not fit 1 Ton Trucks.

Features:

  • 100% bolt-on design for easy installation.
  • High-strength control arm relocation brackets correct suspension geometry and add rigidity.

Fox 2.0 Adventure Series Shocks Features:

  • Body Plating: Thick silver powder coat
  • Body: 2.0 Smooth bore and honed seamless alloy bodies.
  • Bushings: Quiet nitrile rubber allows for increased suspension articulation
  • Internal Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
  • Mounting: Direct replacement for stock and aftermarket lifts kits
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel

Specs:

  • Front Lift Height: 6"
  • Rear Lift Height: 4"
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Cast Blocks
  • Lift Type: Lift Kit
  • Wheel Size: 17 x 9
  • Back Spacing: 5"
  • Max Tire Size: 37 x 12.5
  • Wheel Size 2: 18 x 9
  • Back Spacing 2: 5"
  • Max Tire Size 2: 37 x 12.5
  • Wheel Size 3: 20 x 9
  • Back Spacing 3: 5"
  • Max Tire Size 3: 37 x 12.5
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

You can view and download the assembly/instruction booklet here.
