ZONE 2009-2013 DODGE RAM 2500,3500 4WD DIESEL,8" COIL SPRING LIFT,NITRO SHOCKS

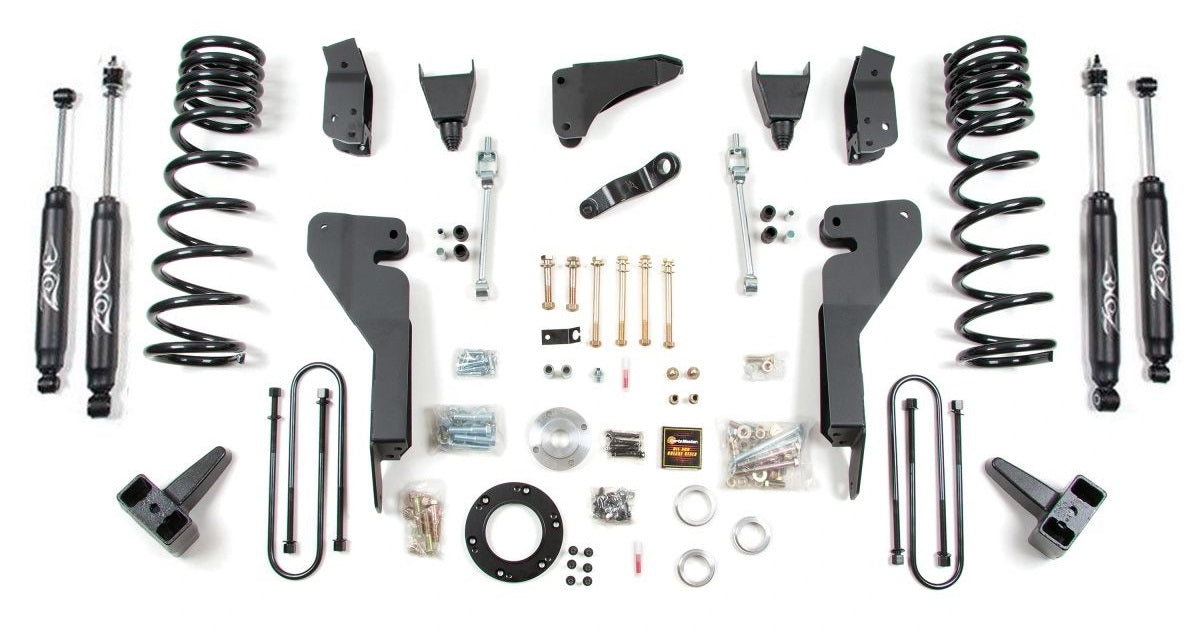

Brand New Zone Offroad 8" Coil Spring Lift Kit with Nitro Shocks (Part #ZOND36N).

Step up to our highest lift that will let you clear 38" tires, but will still leave you in control. This coil spring and cast block lift is the easy and affordable way to create the truck you’ve always wanted.

Fits:

• Dodge:
  • 2009-2010 Ram 2500 4WD Diesel
  • 2009-2010 Ram 3500 4WD Diesel
• Ram:
  • 2011-2013 2500 4WD Diesel
  • 2011-2013 3500 4WD Diesel

Notes:

• Diesels Only. Lift springs are designed for heavier diesel models only. Using lift springs with lighter gas models may cause excessive lift and is NOT recommended.
• Although rare, if you experience front drive-line vibration, install the optional transfer case indexing ring.
• This kit is not designed for dually models, but may be easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid / eliminate driveshaft vibration.
• Adding larger-than-stock wheels? Add front bumper spacers to your kit for additional clearance as some wheel / tire combos may not fully clear the bumper's stock location.
• Recommended Tires & Wheels (Trimming may be required): 38 x 13.5 with 17 x 9 and 5 in. Backspace, 38 x 13.5 with 18 x 9 and 5 in. Backspace, or 38 x 13.5 with 20 x 9 and 5 in. Backspace

Features:

• 100% bolt-on design for easy installation.
• High-strength control arm relocation brackets correct suspension geometry and add rigidity.

Nitro Series:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• Self-lubricating seals
• Black powder coat finish

Specs:

• Front Lift Method: Coil Spring
• Front Lift Height: 8"
• Rear Lift Method: Block
• Rear Lift Height: 5"

You can view and download the instruction booklet here.
