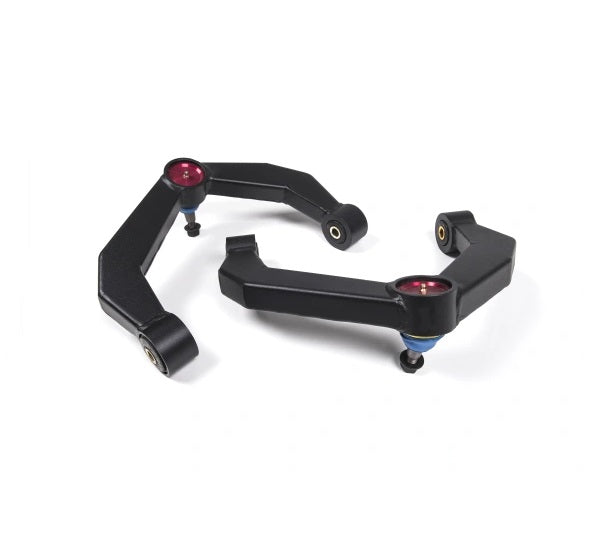

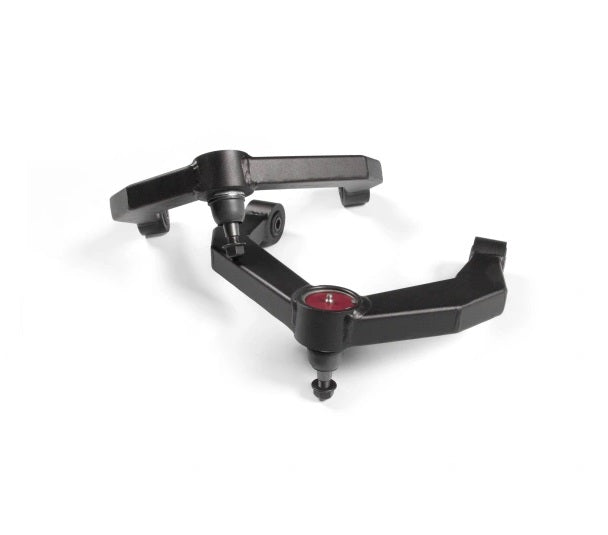

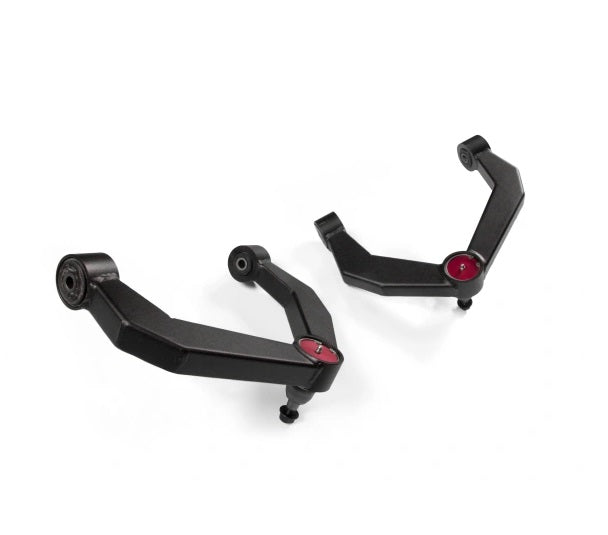

ZONE 2006-2023 RAM1500 4WD UPPER CONTROL ARM KIT (WITH BALL JOINT)

BRAND NEW ZONE OFFROAD ADVENTURE SERIES UPPER CONTROL ARMS, COMPATIBLE WITH 2006-2023 RAM 1500 4WD

UPGRADE YOUR TRUCK FACTORY UPPER CONTROL ARMS WITH THESE HIGH-STRENGTH ADVENTURE SERIES CONTROL ARMS FROM ZONE OFFROAD. THESE ARMS ARE A DIRECT REPLACEMENT TO IMPROVE STRENGTH AND INCREASE SUSPENSION DROOP TRAVEL. THESE ARMS ARE BUILT FROM HIGH-STRENGTH STEEL, BOXED, GUSSETED AND FULLY WELDED FOR STRENGTH AND RIGIDITY.

AT THE FRAME MOUNT THEY USE OE STYLE RUBBER BUSHINGS FOR A LONG SERVICE FREE LIFE AND QUIET OPERATION. AT THE OTHER END THESE ARMS FEATURE AN INDEXED BALL JOINT CUP DESIGNED FOR USE WITH LEVELING AND LIFTED APPLICATIONS. HIGH STRENGTH BALL JOINTS ARE USED WITH A PROTECTIVE BALL JOINT CAP TO KEEP DEBRIS OUT. THESE UPPER CONTROL ARMS COME FULLY ASSEMBLED AND READY TO BOLT IN RIGHT OUT OF THE BOX.

NOTE: INCLUDES A PAIR (2) OF UPPER CONTROL ARMS.

NOTE: ONLY WORKS WITH 6" ZONE KITS AND 2" ZONE LEVELING KITS (INCLUDED WITH ZOND70 KIT). DO NOT USE ON 4" ZONE KITS.

NOTE: WILL NOT FIT 2013-2018 MODELS EQUIPPED WITH FACTORY ADJUSTABLE AIR SUSPENSION (AIR-RIDE)

COMPATIBLE WITH:

• DODGE:
• 2006-2010 RAM 1500 4WD
• RAM:
• 2011-2023 1500 4WD
• 2015-2023 1500 REBEL
• 2019-2023 1500 CLASSIC 4WD

FEATURES:

• IMPROVED STRENGTH WITH FULLY WELDED PLATE STEEL CONSTRUCTION
• CNC MACHINED BALL JOINT CUP WITH IMPROVED POSITIONING IDEAL FOR USE WITH LEVELING/LIFT KITS

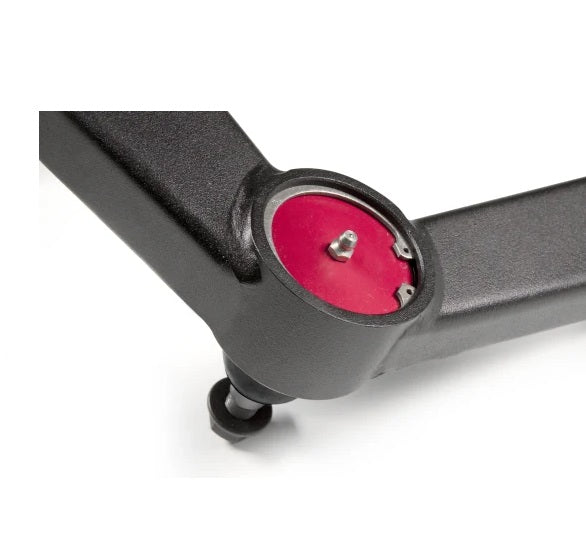

• HIGH QUALITY GREASEABLE BALL JOINTS WITH A PROTECTIVE CAP TO KEEP OUT DIRT/DEBRIS
• OE STYLE RUBBER BUSHINGS FOR DURABILITY AND MAINTENANCE-FREE OPERATION
• FULLY ASSEMBLED AND READY TO INSTALL

SPECS:

• HORIZONTAL POSITION: FRONT
• MATERIAL: STEEL PLATE
• VERTICAL POSITION: UPPER
• ADJUSTABLE: NO
• FINISH: E-COAT
• CUTTING REQUIRED: NO
• WELDING REQUIRED: NO

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE CONTROL ARMS HERE.
