ZONE 2012 RAM 1500 6/3" STRUT SPACER LIFT KIT WITH LEVEL REAR END,FOX SHOCKS
ZONE 2012 RAM 1500 6/3" STRUT SPACER LIFT KIT WITH LEVEL REAR END,FOX SHOCKS
SKU:STU ZOND19F
Yes, we have this item in stock and ready to ship immediately!
Couldn't load pickup availability

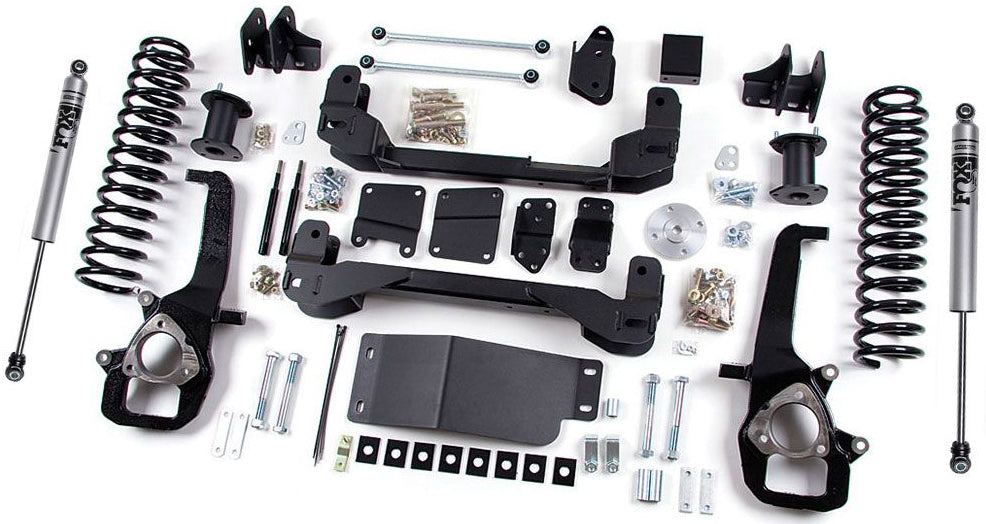

Brand New Zone Offroad 6" Strut Spacer Lift Kit with Rear Fox 2.0 Shocks & 3" Coil Springs (Part #ZOND19F).
Ready for the big time? Then this is your 6" Lift Kit. Designed for easy installation, value, reliability, and to stand out, which is easy when you can clear huge 37" tires. Get the look and performance you want out of your 4WD 2012 Ram 1500 Truck.
Fits:
- Ram:
- 2012 1500 4WD
Notes:
- Does NOT work with all wheel drive (AWD) models.
- This kit is not recommended for TRX models. CV shaft vibration will occur on TRX models unless the TRX struts are replaced with standard struts. Instead, consider our 4" lift system for about 5" of TRX lift.
- These trucks are typically between 1" and 3" tail high from the factory. Please measure your trucks factory front-to-back ride height and order the rear lift height to achieve the desired stance. If closer to
- 1" tail high from the factory order the 5" rear coils for a more level stance. If closer to 3" tail high from the factory order the 3" rear coils for a more level stance.
- Not recommended for AWD models.
- Stock 17" wheels cannot be re-installed.
- Will Not Fit 2013 Models.
-
Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 4.5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace
Features:
- This kit includes a 3" rear lift spring for a level rear end
- Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
- Heavy-duty differential skid slate improves off-road protection.
- High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
- Top mount strut and preload spacers set ride height and maintain ride quality.
FOX 2.0 Adventure Series:
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting silver coated finish
-
Front Lift Method: Strut Spacer
-
Front Lift Height: 6"
-
Rear Lift Method: Coil Spring
- Rear Lift Height: 3"
You can view and download the complete assembly instruction booklet for this kit here.
