ZONE 2025 RAM 1500 4WD LARGE BORE OE KNUCKLE 4" LIFT KIT WITH FOX SHOCKS

ZONE 2025 RAM 1500 4WD LARGE BORE OE KNUCKLE 4" LIFT KIT WITH FOX SHOCKS

STU ZOND152F

$1,708.55
$1,708.55
View full details

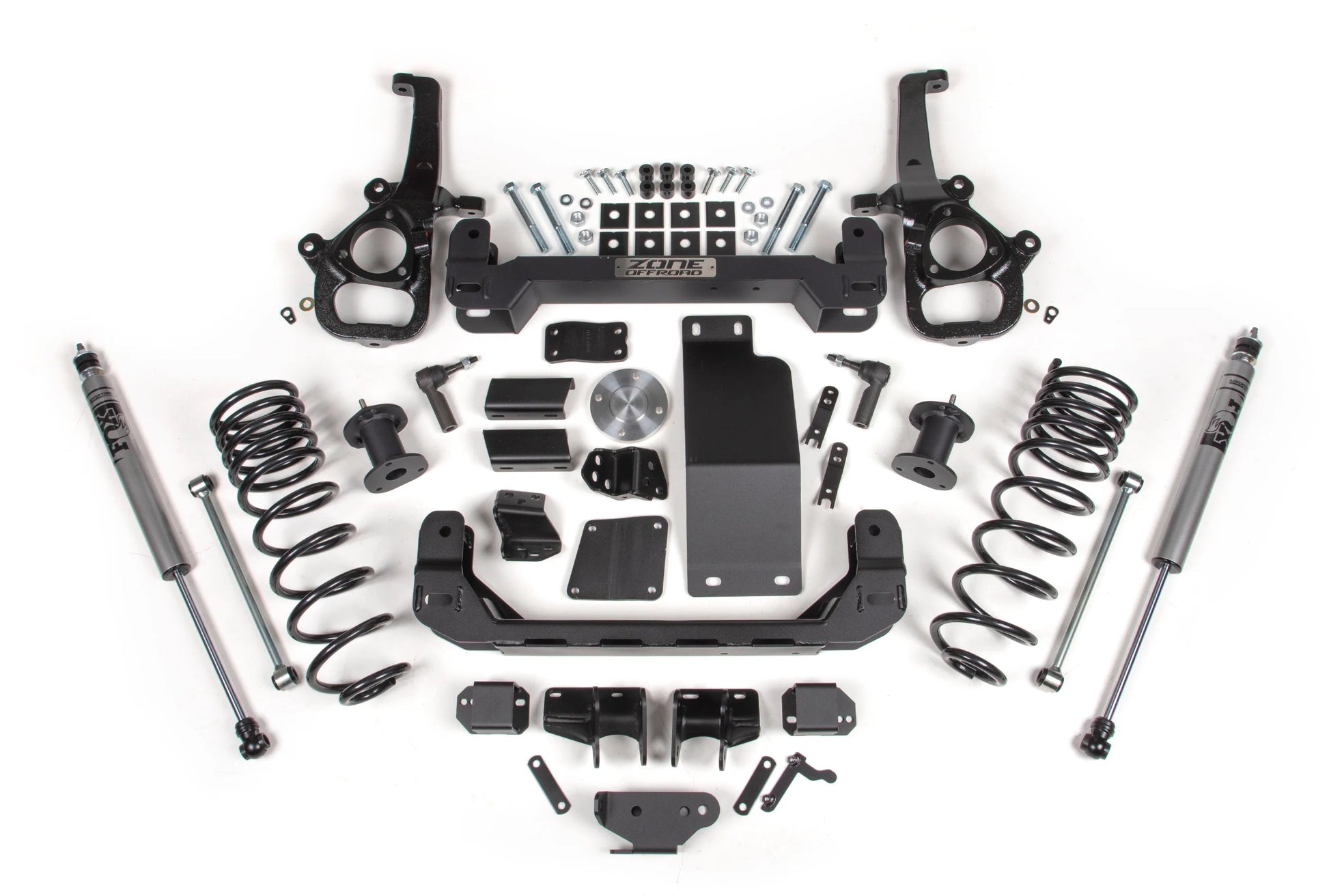

Brand New Zone Offroad 4" Strut Spacer Lift Kit with FOX 2.0 Adventure Shocks (Part #ZOND152F).

Take your 2025+ RAM 1500 to new heights with the new 4” IFS Lift System from Zone Offroad. Specially designed for the new RAM trucks to improve stance with clearance for larger tires. These kits are built right here in the USA to the highest quality standards to all for improved on-road and off-road performance. As with all Zone Offroad lift kits, these new kits are backed by Factory Protection Plus for peace of mind wherever your adventures may take you.

Fits:

  • Dodge:
    • 2005 Ram 1500 4WD with Large Bore Knuckle

Notes:

  • RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
  • Fits models with 3.0L Hurricane I6 and 3.6L V6 engines.
  • Will NOT fit 2019-2024 RAM 1500 Classic models, Refer to the 2018 kit listings.
  • Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P. Vehicles equipped with the Off-Road Group option require special steps similar to Ram 1500 Rebel. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the “Optional Equipment” section there will be a line item that reads “Off-Road Group” if your truck is equipped.
  • Stock 18" wheels cannot be reinstalled due to steering interference.
  • Stock 20s and 22s can be reinstalled with factory tire size.
  • This kit will NOT work on Diesel models.
  • Does NOT work for models with factory airbag suspension.
  • Disconnect BOTH batteries (if equipped), Main and Auxiliary before performing install, more detail in instructions.
  • Bumper Spacer Kit (ZOND5802) recommended for additional tire-to-fender clearance. Sold separately.

  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 20 x 9 and 5 in. Backspace or 35 x 12.5 with 18 x 9 and 5 in. Backspace

Features:

  • Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
  • Heavy-duty differential skid slate improves off-road protection.
  • High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
  • Top mount strut and preload spacers set ride height and maintain ride quality.
  • Rear coil springs achieve leveled stance while maintain ride quality and load capacity.

Fox 2.0 Adventure Series:

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting silver coated finish

Specs:

    • Front Lift Method: Crossmember & Strut Spacer
    • Front Lift Height: 4"
    • Rear Lift Method: Coil Spring
    • Rear Lift Height: 3"

    You can view and download the assembly/instruction booklet here.
