ZONE 2007-2013 CHEVY 1500 2WD SILVERADO,SIERRA 4.5" STRUT,DROP CROSSMEMBER LIFT

ZONE 2007-2013 CHEVY 1500 2WD SILVERADO,SIERRA 4.5" STRUT,DROP CROSSMEMBER LIFT

STU ZONC9N

$1,039.80
$1,039.80
View full details

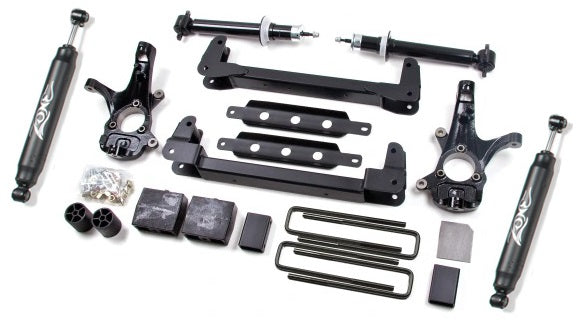

Brand New Zone Offroad 4.5" Strut & Drop Crossmember Lift Kit with Zone Nitro Shocks (Part #ZONC9N).

Stand out from the crowd you install this 4.5" Lift Kit that lets you clear 33" tires. This kit will give you an off road worthy truck you can still use as your daily driver.

Notes:

  • Add-A-Leaf: Recommended for a tail high stance. Add in configuration / checkout.
  • Fitment: Will NOT fit 2007 "Classic" models. If you have a 2007 Classic, see kits for comparable 1999-06 models.
  • Fitment: Will not work on extended/crew cab, long box trucks.
  • Wheels / Tires: Factory 20" wheels CAN be reinstalled; Factory 17" and 18" wheels CANNOT be reinstalled. Check wheel clearance before and after mounting tires by turning the steering wheel through its full range of motion to make sure you're free from body or suspension interference.
  • Wheels / Tires: For optimal tire clearance and reduce the need for trimming, use 20x9 wheels with 5.5-5.75" backspacing.

Fits:

  • Chevrolet:
    • 2007-2013 Silverado 1500 RWD
  • GMC:
    • 2007-2013 Sierra 1500 RWD

Features:

  • Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
  • High pressure, extended length, replacement front struts improve performance on and off-road.
  • High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
  • High-strength, CNC machined replacement steering knuckles improve strength while correcting steering angles.
  • Proudly made in the USA.
  • Rear lift block and longer U-bolts for easy installation and level stance.

Nitro Series Shocks Features:

  • Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance
  • Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft
  • Bushings and sleeves included for easy, direct replacement installation

Specs:

  • Front Lift Height: 4.5"
  • Rear Lift Height: 4"
  • Front Lift Method: Strut Spacers & Cross-Member
  • Rear Lift Method: Cast Blocks
  • Lift Type: Lift Kit
  • Wheel Size: 17 x 9
  • Back Spacing: 5"
  • Max Tire Size: 33 x 12.5
  • Wheel Size 2: 18 x 9
  • Back Spacing 2: 5"
  • Max Tire Size 2: 33 x 12.5
  • Wheel Size 3: 20 x 9
  • Back Spacing 3: 5.75"
  • Max Tire Size 3: 33 x 12.5
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

You can view and download the assembly/instruction booklet here.
