ZONE 2025 CHEVY,GMC 1500 4WD 3.5" SUSPENSION LIFT KIT WITH FOX SHOCKS

ZONE 2025 CHEVY,GMC 1500 4WD 3.5" SUSPENSION LIFT KIT WITH FOX SHOCKS

STU ZONC76F

$849.89
$849.89
View full details

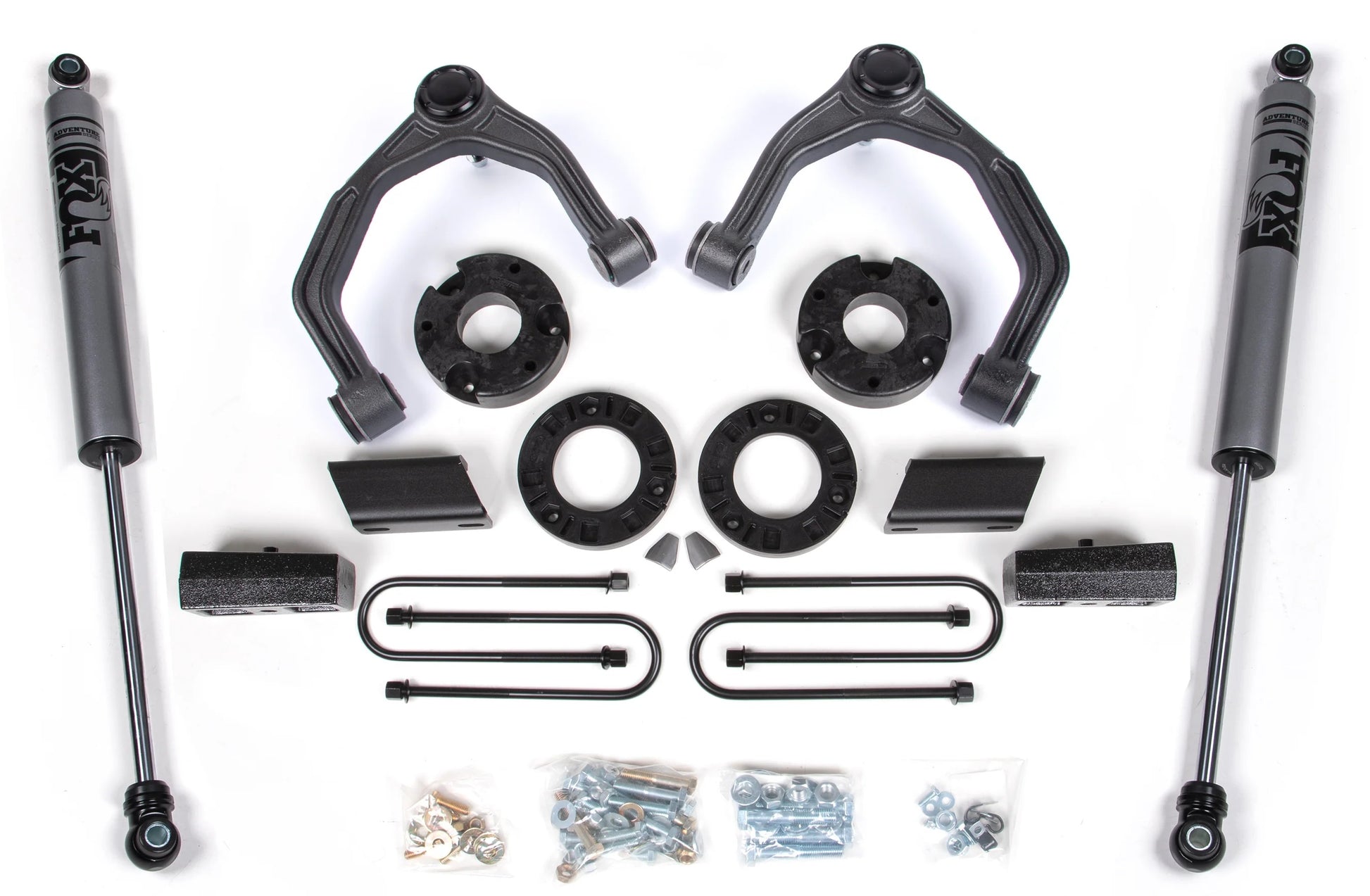

Brand New Zone Offroad 3.5" Strut Spacer Lift Kit with Fox Shocks (Part #ZONC76F).

More than a leveling kit, this 3.5" Adventure Series kit takes advantage of Adventure Series upper control arms to offer improved performance and off-road capability with clearance for up to 35" tires. These high strength UCAs allow for increased suspension travel, improved strength and durability, and easy maintenance. Lift is provided by a 2-piece, combination top-mount and preload strut spacers design to provide a full 3.5" of lift without overextending the suspension at full droop (as is the case with kits using just a top mounted spacer). Optional weld-in steering stops are supplied allowing clearance for up to 35" tires. In the rear of this kit, a cast 2" lift block lifts and levels.

Fits:

  • Chevrolet:
    • 2025 Silverado 1500 4WD
  • GMC:
    • 2025 Sierra 1500 4WD

Notes:

  • Will NOT work with ZR2 and AT4X models.
  • Will fit Trailboss and AT4 but will net 1.5" of lift.
  • All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper.
  • Fits Gas and Diesel Models.
  • 5.5" max wheel backspacing
  • Lifting of bed required for shock install.
  • Recommended Tires & Wheels (Trimming may be required): 33 x 12.5 with 18 x 9 and 5.5 in. Backspace or 33 x 12.5 with 20 x 9 and 5.5 in. Backspace

Features:

  • Maintains on-road handling while improving off-road performance.
  • Top mounted front strut spacer retains factory ride quality.
  • Adventure Series upper control arms for additional strength and durability.

Fox 2.0 Adventure Shocks:

  • 2" Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Strut Spacer
  • Front Lift Height: 3.5
  • Rear Lift Method: Block
  • Rear Lift Height: 2"

You can view and download the complete assembly instruction booklet for this kit here.
