ZONE 2025 CHEVY,GMC 1500 4WD 3.5" SUSPENSION LIFT KIT
ZONE 2025 CHEVY,GMC 1500 4WD 3.5" SUSPENSION LIFT KIT
SKU:STU ZONC76
Couldn't load pickup availability

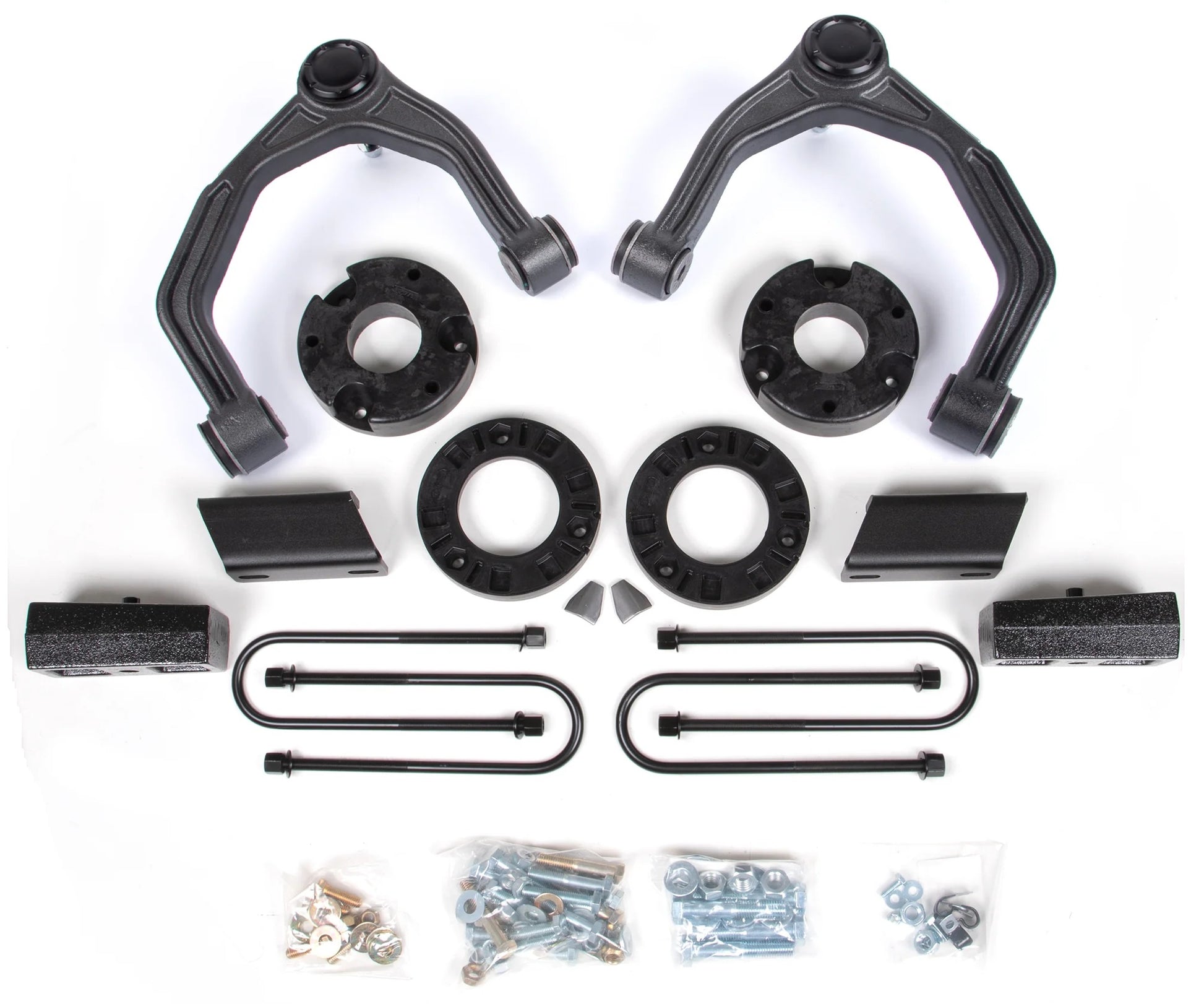

Brand New Zone Offroad 3.5" Strut Spacer Lift Kit (Part #ZONC76).
More than a leveling kit, this 3.5" Adventure Series kit takes advantage of Adventure Series upper control arms to offer improved performance and off-road capability with clearance for up to 35" tires. These high strength UCAs allow for increased suspension travel, improved strength and durability, and easy maintenance. Lift is provided by a 2-piece, combination top-mount and preload strut spacers design to provide a full 3.5" of lift without overextending the suspension at full droop (as is the case with kits using just a top mounted spacer). Optional weld-in steering stops are supplied allowing clearance for up to 35" tires. In the rear of this kit, a cast 2" lift block lifts and levels.
Fits:
- Chevrolet:
- 2025 Silverado 1500 4WD
- GMC:
- 2025 Sierra 1500 4WD
Notes:
- Will NOT work with ZR2 and AT4X models.
- Will fit Trailboss and AT4 but will net 1.5" of lift.
- All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper.
- Fits Gas and Diesel Models.
- 5.5" max wheel backspacing
- Lifting of bed required for shock install.
- Recommended Tires & Wheels (Trimming may be required): 33 x 12.5 with 18 x 9 and 5.5 in. Backspace or 33 x 12.5 with 20 x 9 and 5.5 in. Backspace
Features:
- Maintains on-road handling while improving off-road performance.
- Top mounted front strut spacer retains factory ride quality.
- Adventure Series upper control arms for additional strength and durability.
Specs:
-
Front Lift Method: Strut Spacer
-
Front Lift Height: 3.5
-
Rear Lift Method: Block
- Rear Lift Height: 2"
You can view and download the complete assembly instruction booklet for this kit here.
