ZONE 2000-2006 GM TAHOE,YUKON,SUBURBAN 6" TORSION BAR DROP LIFT KIT

ZONE 2000-2006 GM TAHOE,YUKON,SUBURBAN 6" TORSION BAR DROP LIFT KIT

STU ZONC7

$1,572.85
$1,572.85
View full details

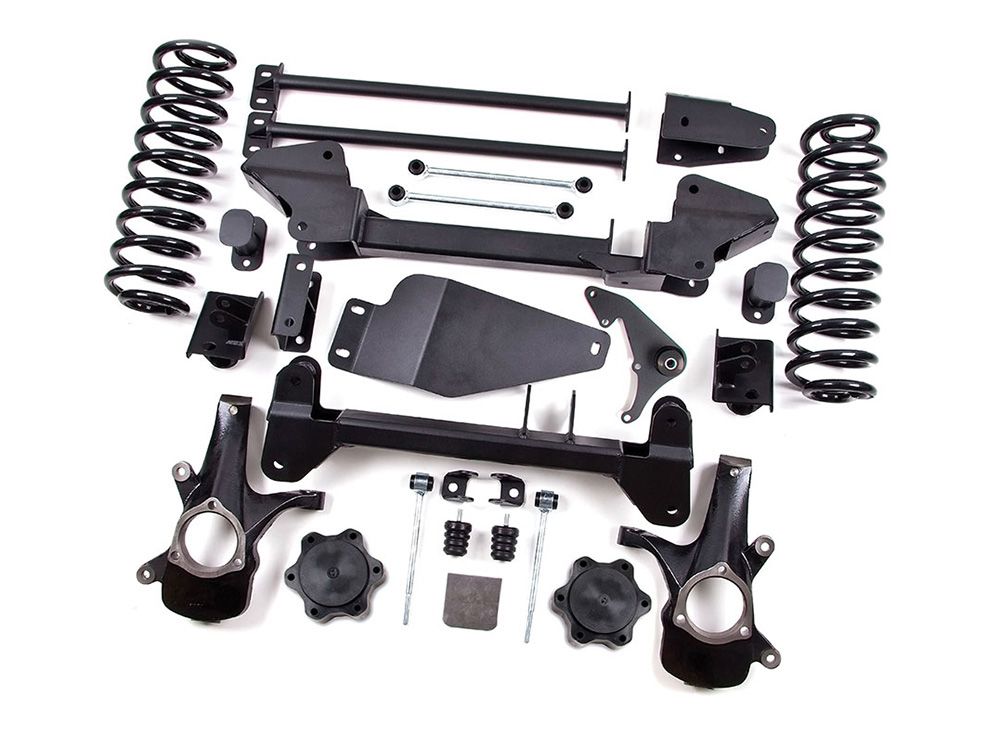

Brand New Zone Offroad 6" Torsion Bar Drop Lift Kit (Part #ZONC7).

When you go big you can go anywhere. This 6" Lift Kit puts your SUV into a class of its own, letting you clear 35" tires. Built for everyday driving but sturdy enough for off-road abuse. Get the look and performance you want out of your 4WD 2000 - 2006 Chevy/GM 1500 SUV.

Fits:

  • Chevrolet:
    • 2002-2006 Avalanche 1500 4WD
    • 2000-2006 Suburban 1500 4WD
    • 2000-2006 Tahoe 4WD
  • GMC:
    • 2000-2006 Yukon 4WD
    • 2000-2006 Yukon XL 1500 4WD

Features:

  • Heavy-duty differential skid slate improves offroad protection.
  • High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
  • High-strength, CNC machined, replacement Steering Knuckles improve strength while correcting steering angles.
  • Multi-point differential relocation brackets secure front differential for improved CV operating angles.

Specs:

  • Front Lift Height: 6"
  • Rear Lift Height: 5.25"
  • Front Lift Method: Torsion Bar Drop
  • Rear Lift Method: Coil Springs
  • Lift Type: Lift Kit
  • Wheel Size: 17 x 9
  • Back Spacing: 4.5"
  • Max Tire Size: 33 x 12.5
  • Wheel Size 2: 18 x 9
  • Back Spacing 2: 5"
  • Max Tire Size 2: 34 x 12.5
  • Wheel Size 3: 20 x 9
  • Back Spacing 3: 5.75"
  • Max Tire Size 3: 35 x 12.5
  • Is Adjustable: No
  • Finish: Powdercoat
  • Cutting Required: No
  • Welding Required: Yes

Notes:

  • Fitment: Does NOT work with all wheel drive (AWD) models.
  • Fitment: Will not fit vehicles equipped with Auto-Ride.
  • Use a 1/4" wheel spacer to accommodate factory 20" wheels; refer to the provided "Max Tire Size" for 20" wheels for tire sizing.
  • Wheels / Tires: Stock tires & wheels can be installed back on the vehicle, but larger tires can NOT be installed on factory wheels. Always check for wheel and tire clearance before driving the vehicle.

You can view and download the complete assembly instruction booklet for this kit here.
