ZONE 2020-2024 CHEVY,GMC 2500,3500HD TRUCKS W/O OVERLOAD 3" ADVENTURE LIFT KIT

ZONE 2020-2024 CHEVY,GMC 2500,3500HD TRUCKS W/O OVERLOAD 3" ADVENTURE LIFT KIT

STU ZONC48

$815.90
$815.90
View full details

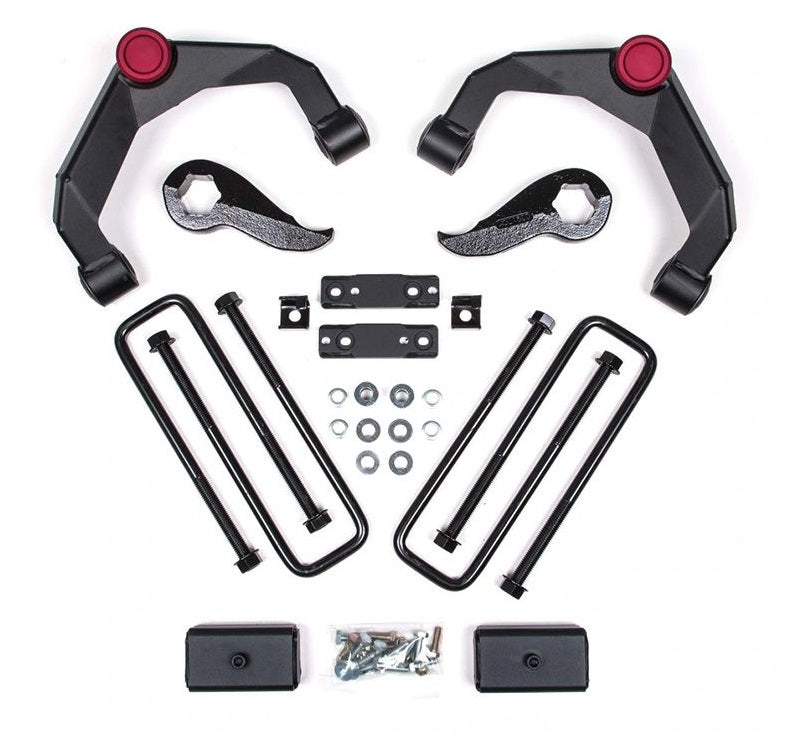

Brand New Zone Offroad 3" Adventure Lift Kit (Part #ZONC48).

Take your new HD to the next level with the 3" Adventure Series Lift Kit from Zone Offroad. Engineered for easy bolt on fitment and improved travel, these 3? Adventure Series Lift Kits bridge that gap between an entry level leveling kit and full IFS lift system offering next level performance without the cost and extensive installation. The heart of this new system is a pair of heavy duty replacement upper control arms (UCAs) designed to improve range of motion for more suspension travel when wheeling in rough terrain. These new control arms dwarf the factory units and are built from high strength steel, boxed and fully welded with CNC-machined bushing and ball joint cups repositioned to operate in the neutral position at 3? of lift. They use OE durometer rubber bushings and greaseable OE-style heavy duty ball joints for quiet, reliable operation and superior corrosion resistance to uniball style control arms.

Along with the arms, a pair of re-indexed cast steel torsion bar keys are supplied up front to lift vehicle. Zone Offroad includes a small differential relocation kit (4WD models only) to correct CV axle operating angles without effecting ground clearance. The sway bar operating angle is corrected with the use of a pair of relocation brackets allowing for full droop of the suspension and proper clearance. In the rear a 2? block and U-bolt kit is used to create a level to slightly tail high stance. Rounding out the kit are a set of Nitro gas or FOX adventure series IFP gas shocks at all 4 corners for a smooth ride and impressive performance across any terrain. Take your late model GM 2500HD to the next level with Zone Offroad!

Notes:

  • Stock wheels with stock tires can be installed, however clearance are very tight to the upper control arms, we recommend using a 1/4" wheel spacer; Proper torsion bar key unloading tool required. (Kent Moore #CH48809 or equivalent)
  • Will work on gas or diesel models.
  • Will work on standard and AT4 models.
  • DRW models must select the STU ZONC49 if the truck Is equipped with overload springs to get the correct U-bolts

Fits:

  • Chevrolet:
    • 2020-2024 Silverado 2500 HD without Overload Springs
    • 2020-2024 Silverado 3500 HD without Overload Springs
  • GMC:
    • 2020-2024 Sierra 2500 HD without Overload Springs
    • 2020-2024 Sierra 3500 HD without Overload Springs

Features:

  • High strength UCAs are boxed and fully welded. They are specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel.
  • Cast construction indexed torsion bar keys to provide additional ride height while maximizing ground clearance.
  • Front differential relocation brackets to correct CV axle operating angle.
  • Sway bar relocation brackets to maintain clearance and proper operating angle.
  • 2" rear lift blocks and heavy duty u-bolts to level the stance.
  • Nitro series gas or FOX 2.0 adventure series IFP gas shocks to improve performance.
  • Maintains ride and handling characteristics with clearance for 35" tires.
  • Allows for improve off-road performance with more droop travel.

Specs:

  • Front Lift Height: 3"
  • Rear Lift Height: 2"
  • Front Lift Method: Torsion Key
  • Rear Lift Method: Fabricated Blocks
  • Lift Type: Lift Kit
  • Wheel Size: 20 x 9
  • Back Spacing: 5-5.75"
  • Max Tire Size: 35 x 12.5
  • Wheel Size 2: 20 x 9
  • Back Spacing 2: 5-6.18"
  • Max Tire Size 2: 295 / 60
  • Wheel Size 3: 20 x 9
  • Back Spacing 3: 5-6.18"
  • Max Tire Size 3: 285 / 65
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

You can view and download the assembly/instruction booklet here.
