ZONE 2019-2024 CHEVY,GMC 1500 4WD SILVERADO,SIERRA,3.5" ADVENTURE LIFT KIT,FOX

ZONE 2019-2024 CHEVY,GMC 1500 4WD SILVERADO,SIERRA,3.5" ADVENTURE LIFT KIT,FOX

STU ZONC47F

$849.89
$849.89

Yes, we have this item in stock and ready to ship immediately!
View full details

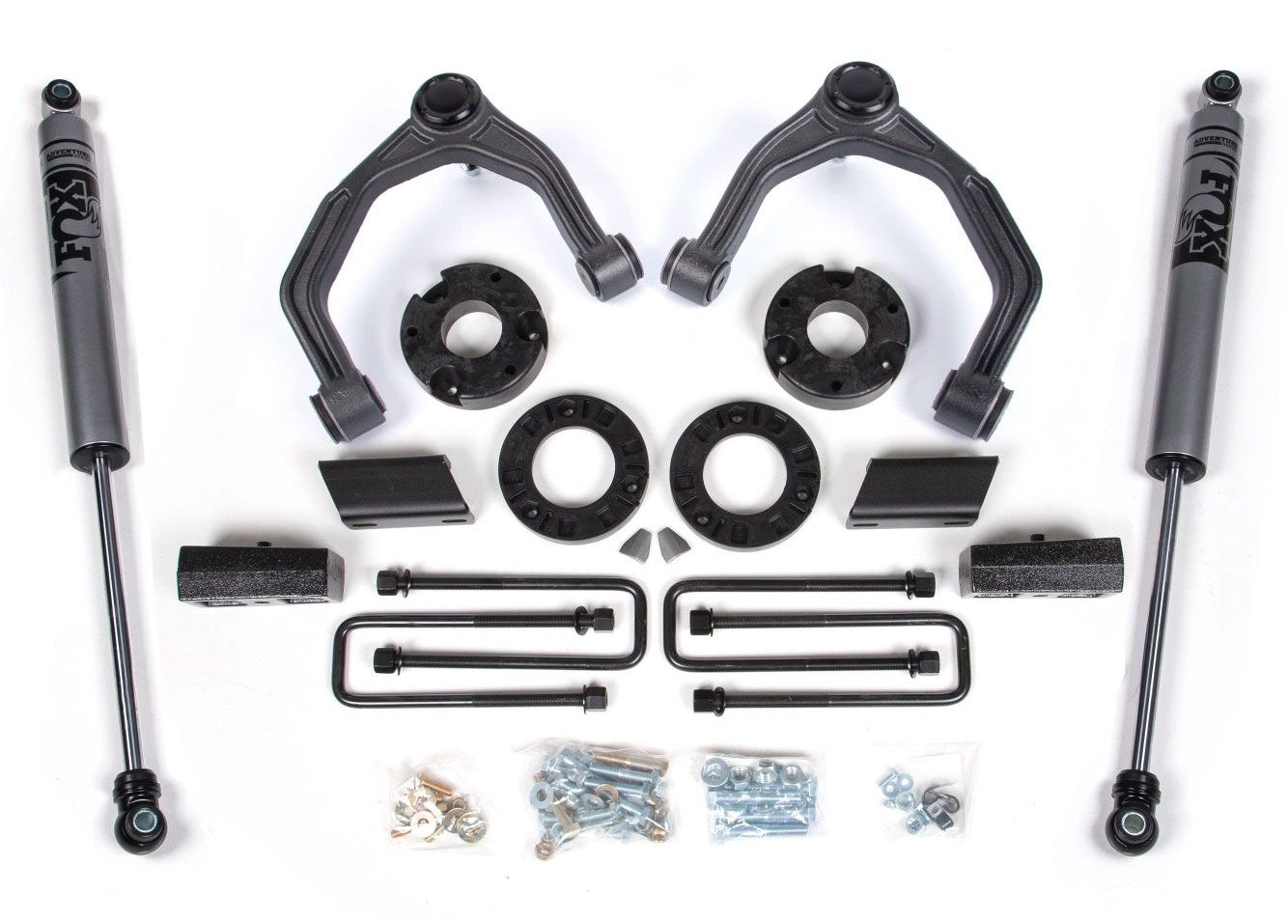

Brand New Zone Offroad 3.5" Adventure Series Lift Kit with FOX 2.0 Adventure Shocks (Part #ZONC47F).

More than a leveling kit, this 3.5" Adventure Series kit takes advantage of Adventure Series upper control arms to offer improved performance and off-road capability with clearance for up to 35" tires. These high strength UCAs allow for increased suspension travel, improved strength and durability, and easy maintenance. Lift is provided by a 2-piece, combination top-mount and preload strut spacers design to provide a full 3.5" of lift without overextending the suspension at full droop (as is the case with kits using just a top mounted spacer). Optional weld-in steering stops are supplied allowing clearance for up to 35" tires. In the rear of this kit, a cast 2" lift block lifts and levels.

Fits:

  • Chevrolet:
    • 2019-2024 Silverado 1500 4WD
  • GMC:
    • 2019-2024 Sierra 1500 4WD

Notes:

  • Works on Gas and Diesel Models.
  • All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper.
  • Do not exceed wheel backspacing of 5.5" as it will cause clearance issues with UCA.
  • Minor cutting of the factory droop limiter required to allow for the increased travel of replacement Upper Control Arms.
  • Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
  • Will NOT fit Denali and High Country models with Adaptive Ride Control (ARC).
  • Will NOT fit Trail Boss/ AT4 models.
  • This kit has not been test fitted on Silverado ZR2 or Sierra AT4X models at this time.
  • Will NOT fit models with a single leaf spring (mono-leaf) rear suspension.
  • 2022 Models: This system has not been tested on models equipped with Super Cruise. Will NOT fit models with a single leaf spring (mono-leaf) rear suspension.

  • Recommended Tires & Wheels (Trimming may be required): (Chevy) 37 x 12.5 with 20 x 9 and 5.5 in. Backspace or (GMC) 35 x 12.5

Features:

  • High strength UCAs are cast, ductile iron and specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel.
  • Utilizes a combination top-mount and preload strut spacers to correctly lift vehicle.
  • Retain factory ride quality without over extending suspension/drivelines at full suspension droop.
  • Maintains ride and handling characteristics with clearance for larger tires.
  • 2" rear lift blocks and heavy duty u-bolts to level the stance.
  • Optional Steering Stops included for larger wheel/tire combinations.

FOX 2.0 Adventure Series:

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting silver coated finish

Specs:

  • Front Lift Method: Strut Spacers
  • Front Lift Height: 3.5"
  • Rear Lift Method: Blocks
  • Rear Lift Height: 2"

You can view and download the assembly or instruction booklet here.
