ZONE 2007-2013 CHEVY SILVERADO,GMC SIERRA 1500 4WD 6.5" SUSPENSION LIFT,NITRO

ZONE 2007-2013 CHEVY SILVERADO,GMC SIERRA 1500 4WD 6.5" SUSPENSION LIFT,NITRO

STU ZONC40N

$970.75
$970.75
View full details

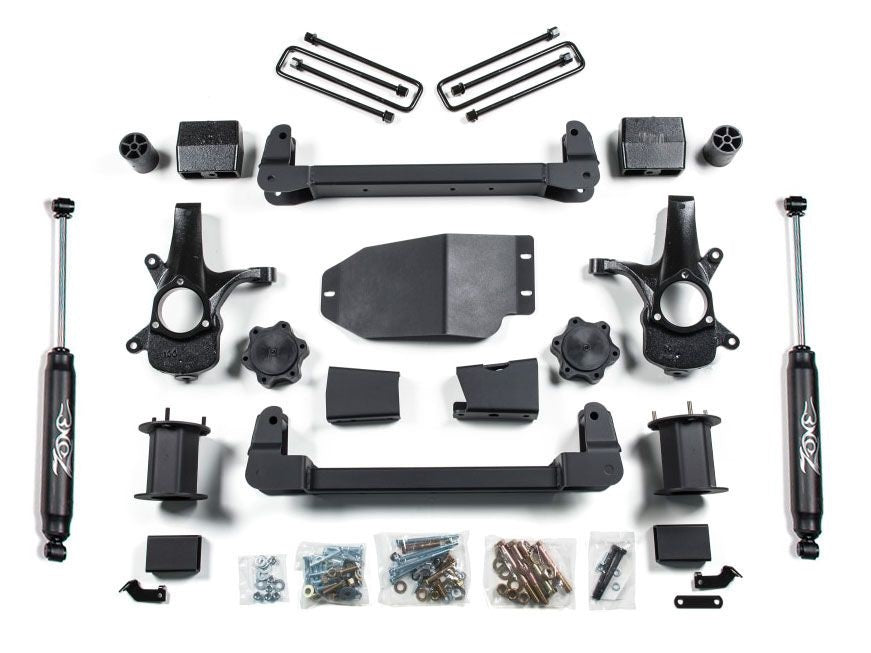

Brand New Zone Offroad 6.5" Suspension Lift Kit with Zone Nitro Shocks (Part #ZONC40N).

Take your Silverado/Sierra 1500 to new heights with this 6.5" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and differential relocation brackets to maintain driveline angles. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

Notes:

  • Requires 1/4" wheel spacer to accommodate stock 20" rims.

Fits:

  • Chevrolet:
    • 2007-2013 Silverado 1500 4WD
  • GMC:
    • 2007-2013 Sierra 1500 4WD

Features:

  • High strength crossmembers to correct lower control arm positioning
  • Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for additional off-road protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Sway bar, brake line and bump stop relocation brackets to correct operating angles

Nitro Series Shocks Features:

  • Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance
  • Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft
  • Bushings and sleeves included for easy, direct replacement installation

Specs:

  • Front Lift Height: 6.5"
  • Rear Lift Height: 5"
  • Front Lift Method: Strut Spacer & Cross-Member
  • Rear Lift Method: Cast Blocks
  • Lift Type: Lift Kit
  • Wheel Size: 17 x 9
  • Back Spacing: 5"
  • Max Tire Size: 35 x 12.5
  • Wheel Size 2: 18 x 9
  • Back Spacing 2: 5.25"
  • Max Tire Size 2: 35 x 12.5
  • Wheel Size 3: 20 x 9
  • Back Spacing 3: 5.75"
  • Max Tire Size 3: 35 x 12.5
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

You can view and download the assembly/instruction booklet here.
