ZONE 2011-2019 CHEVY,GMC 2500HD,3500HD 4WD TRUCK W/O OVERLOAD,3" LIFT KIT,FOX

ZONE 2011-2019 CHEVY,GMC 2500HD,3500HD 4WD TRUCK W/O OVERLOAD,3" LIFT KIT,FOX

STU ZONC37F

$1,110.70
$1,110.70
View full details

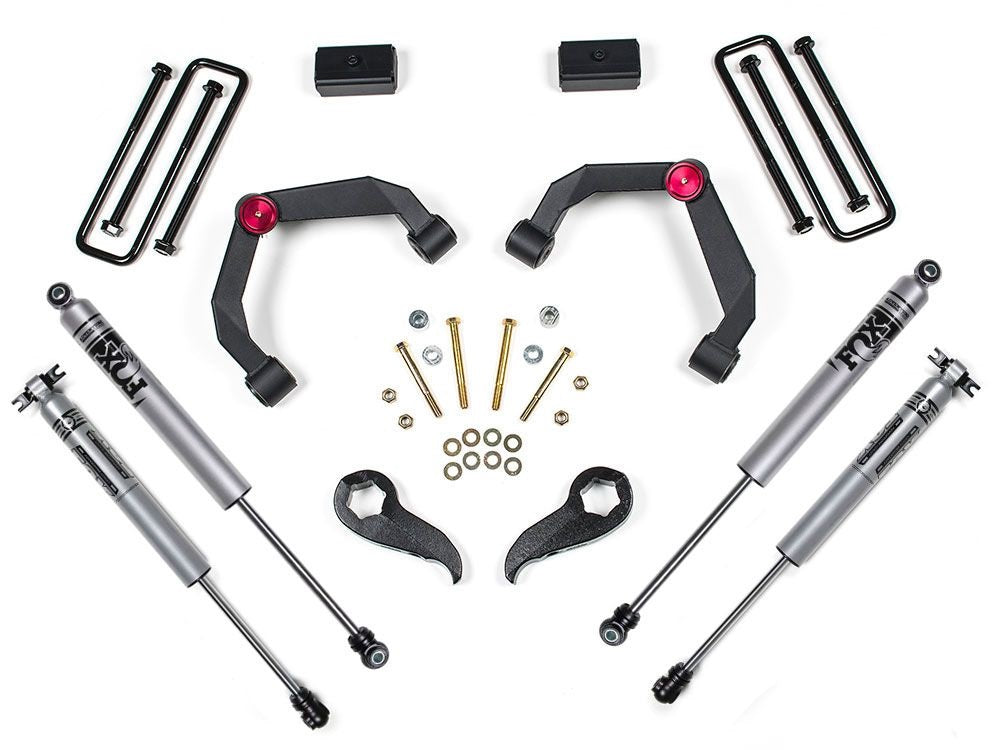

Brand New Zone Offroad 3" Adventure Series Lift Kit with FOX 2.0 Adventure Series Shocks (Part #ZONC37F).

Take your Chevy/GMC HD to new heights with this 3" adventure series lift kit from Zone Offroad. Kits include everything needed from high strength upper control arms and indexed torsion bar keys to differential relocation spacers and a rear lift block kit to complete the install. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

Notes:

  • Available for models with and without top mounted rear overload springs - be sure to select correct kit below for your application.
  • Minor trimming may be required, especially if a wheel backspace of less the specified is used.
  • Optional steering stabilizer (PN# 7103) only fits vehicles that came equipped with a steering stabilizer from the factory.
  • Requires 1/4" wheel spacer to accommodate stock 20" rims.

Fits:

  • Chevrolet:
    • 2011-2019 Silverado 2500 HD 4WD without Overload Springs
    • 2011-2019 Silverado 3500 HD 4WD without Overload Springs
  • GMC:
    • 2011-2019 Sierra 2500 HD 4WD without Overload Springs
    • 2011-2019 Sierra 3500 HD 4WD without Overload Springs

Features:

  • Adventure series fully boxed HD upper control arms for improved strength and suspension travel
  • Improved ride quality and suspension travel over standard "leveling kits"
  • Front differential drop included to correct CV shaft angles
  • Rear 2" rear block kit will net a level to slightly tail high stance
  • Indexed torsion bar keys to set ride height
  • Allows clearance for up to 35" tires

Fox 2.0 Adventure Series Shocks Features:

  • Body Plating: Thick silver powder coat
  • Body: 2.0 Smooth bore and honed seamless alloy bodies.
  • Bushings: Quiet nitrile rubber allows for increased suspension articulation
  • Internal Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
  • Mounting: Direct replacement for stock and aftermarket lifts kits
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel

Specs:

  • Front Lift Height: 3"
  • Rear Lift Height: 2"
  • Front Lift Method: Torsion Key
  • Rear Lift Method: Cast Blocks
  • Lift Type: Lift Kit
  • Wheel Size: 17 x 9
  • Back Spacing: 5.5"
  • Max Tire Size: 34 x 11.5
  • Wheel Size 2: 18 x 9
  • Back Spacing 2: 6"
  • Max Tire Size 2: 35 x 12.5
  • Wheel Size 3: 20 x 9
  • Back Spacing 3: 6"
  • Max Tire Size 3: 35 x 12.5
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

You can view and download the assembly/instruction booklet here.
