ZONE 2014-2018 CHEVY,GMC 1500 2WD TRUCKS 6.5" SUSPENSION LIFT KIT,STAMPED/ALUM

ZONE 2014-2018 CHEVY,GMC 1500 2WD TRUCKS 6.5" SUSPENSION LIFT KIT,STAMPED/ALUM

STU ZONC34N

$999.99
$999.99
View full details

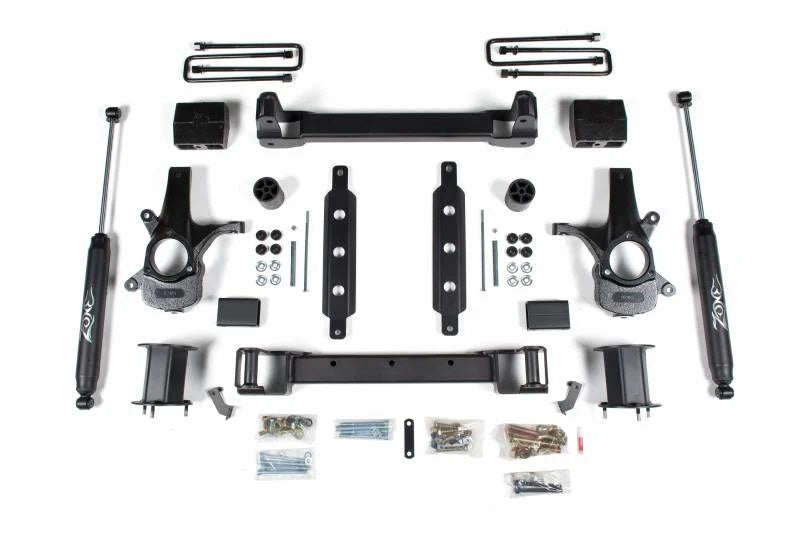

Brand New Zone Offroad 6.5" Suspension Lift Kit with Zone Nitro Shocks (Part #ZONC34N).

Take your Silverado/Sierra 1500 to new heights with this 6.5" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for 35" tires.

Notes:

  • Check Control Arms: GM produced cast steel, stamped steel and aluminum control arms between 2014 and 2017. Use the reference image to help identify your stock control arms; cast steel will be replaced with cast steel, stamped steel and aluminum control arms will be replaced with aluminum.
  • Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference.
  • Maximum Rear Shock length is 29-3/4" due to driveshaft to cross member interference.
  • Requires 1/4" wheel spacer to accommodate stock 20" rims.
  • To reduce trimming required for tire fitment, a 20" wheel w/5.75" backspacing is recommended.

Fits:

  • Chevrolet:
    • 2014-2018 Silverado 1500 RWD with Aluminum/Stamped Steel Control Arms
  • GMC:
    • 2014-2018 Sierra 1500 RWD with Aluminum/Stamped Steel Control Arms

Features:

  • High strength crossmembers to correct lower control arm positioning
  • Ductile iron steering knuckles to correct steering geometry and maintain FMVSS No126 (ESC System) compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Rear 5" lift block and U-bolt kit to lift and level the stance
  • Sway bar, bracket line and bump stop relocation brackets to correct operating angles
  • Allows clearance for up to 35" tires

Nitro Series Shocks Features:

  • Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance
  • Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft
  • Bushings and sleeves included for easy, direct replacement installation

Specs:

  • Front Lift Height: 6.5"
  • Rear Lift Height: 5"
  • Front Lift Method: Knuckle & Strut Spacer
  • Rear Lift Method: Cast Blocks
  • Lift Type: Lift Kit
  • Wheel Size: 17 x 9
  • Back Spacing: 5"
  • Max Tire Size: 35 x 12.5
  • Wheel Size 2: 18 x 9
  • Back Spacing 2: 5.25"
  • Max Tire Size 2: 35 x 12.5
  • Wheel Size 3: 20 x 9
  • Back Spacing 3: 5.75"
  • Max Tire Size 3: 35 x 12.5
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

You can view and download the assembly/instruction booklet here.
