ZONE 2001-2010 CHEVY,GMC 2500,3500HD 4WD TRUCKS,SUV 3" ADVENTURE LIFT KIT,FOX
ZONE 2001-2010 CHEVY,GMC 2500,3500HD 4WD TRUCKS,SUV 3" ADVENTURE LIFT KIT,FOX
SKU:STU ZONC32F

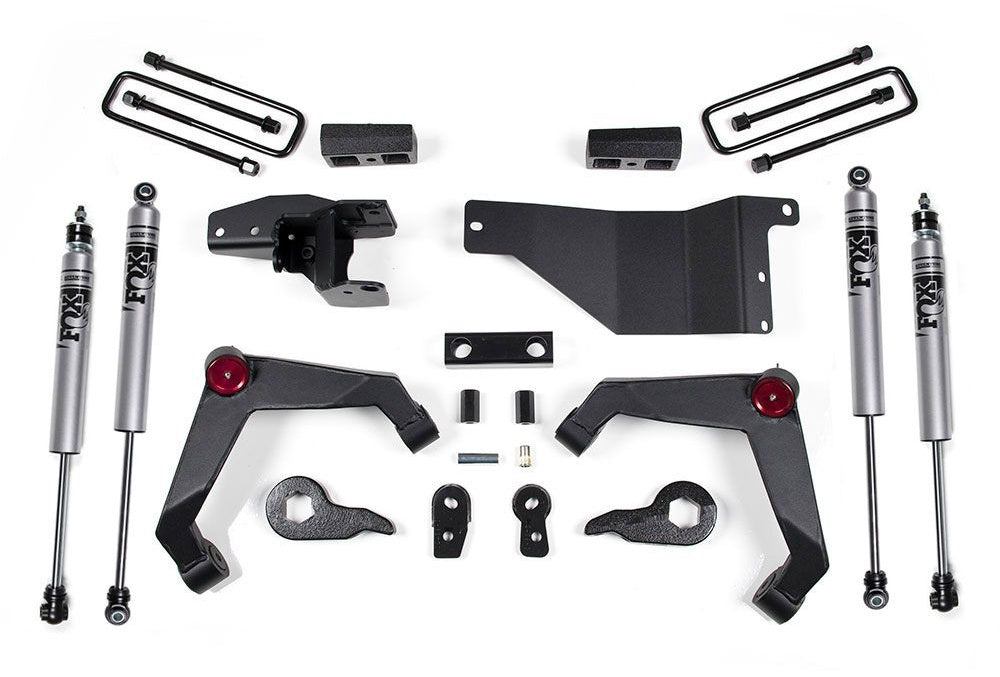

Brand New Zone Offroad 3" Adventure Lift Kit with FOX 2.0 Adventure Shocks (Part #ZONC32F).
Take your Chevy/GMC HD to new heights with this 3" adventure series lift kit from Zone Offroad. Kits include everything needed from high strength upper control arms and indexed torsion bar keys to differential relocation brackets and rear lift block kit to complete the install. Get the look, performance, and capability your truck deserves with clearance for up to 34" tires.
Notes:
- Frame bracket mount modification required.
- To determine which kit # is required, verify which RPO codes are shown in the glovebox to determine the factory installed torsion keys. The following RPO codes require the C1202/C1212/C31 kits: FT2 - FT3 - FT4 - FT5 - FT6 - FT7, while RPO codes FK2 - FK3 - FF6 - FF7 - FF8 - FF9 require the C1203/C1213/C32 kits.
- Will not fit dually models. Factory wheels cannot be re-installed.
Fits:
See RPO Codes in Notes for Proper Fitment
-
Chevrolet:
- 2001-2010 Silverado 2500 HD 4WD
- 2007-2010 Silverado 3500 HD 4WD
- 2001-2006 Suburban 2500 4WD
- 2002-2006 Avalanche 2500 4WD
-
GMC:
- 2001-2010 Sierra 2500 HD 4WD
- 2007-2010 Sierra 3500 HD 4WD
- 2001-2006 Yukon XL 2500 4WD
Features:
- Adventure series fully boxed HD upper control arms for improved strength and suspension travel
- Improved ride quality and suspension travel over standard "leveling kits"
- Front differential drop included to correct CV shaft angles
- Differential skid plate for improved off-road protection
- Rear 2" rear block kit will net a level to slightly tail high stance
- Indexed torsion bar keys to set ride height
- Allows clearance for up to 33" tires
Fox 2.0 Adventure Series Shocks Features:
- Body Plating: Thick silver powder coat
- Body: 2.0 Smooth bore and honed seamless alloy bodies.
- Bushings: Quiet nitrile rubber allows for increased suspension articulation
- Internal Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
- Mounting: Direct replacement for stock and aftermarket lifts kits
- Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
- Shaft: 5/8" hard chrome plated heat-treated alloy steel
Specs:
- Front Lift Height: 3"
- Rear Lift Height: 2"
- Front Lift Method: Upper Control Arms
- Rear Lift Method: Cast Blocks
- Lift Type: Lift Kit
- Wheel Size: 17 x 9
- Back Spacing: 5"
- Max Tire Size: 33 x 12.5
-
Wheel Size 2: 18 x 9
-
Back Spacing 2: 5"
- Max Tire Size 2: 33 x 12.5
- Cutting Required: Yes
- Accommodates Factory Wheels: No
- Welding Required: No
You can view and download the assembly/instruction booklet here.
