ZONE 2007-2013 CHEVY,GMC 1500 2WD SILVERADO,SIERRA 6.5" SUSPENSION LIFT,NITRO

ZONE 2007-2013 CHEVY,GMC 1500 2WD SILVERADO,SIERRA 6.5" SUSPENSION LIFT,NITRO

STU ZONC2N

$1,039.80
$1,039.80
View full details

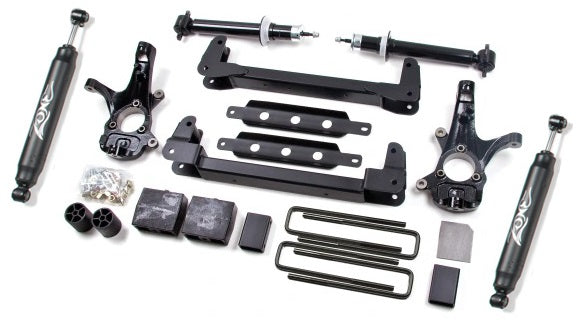

Brand New Zone Offroad 6.5" Suspension Lift Kit with Zone Nitro Shocks (Part #ZONC2N).

Take your truck to new heights with this 6.5" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

Notes:

  • Crew Cab? Add-A-Leaf: Add an Add-A-Leaf to your kit to offset the increased weight of the cab for a more level stance.
  • Fitment: Will NOT fit 2007 "Classic" models. If you have a 2007 Classic, see kits for comparable 1999-06 models.
  • Fitment: Will NOT fit 2009-11 Two-Mode Hybrid models with Electronic Power Steering (EPS).
  • Fitment: Will not work on extended/crew cab, long box trucks.
  • Use a 1/4" wheel spacer to accommodate factory 20" wheels; refer to the provided "Max Tire Size" for 20" wheels for tire sizing.
  • Wheels / Tires: Factory 20" wheels CAN be reinstalled; Factory 17" and 18" wheels CANNOT be reinstalled. Check wheel clearance before and after mounting tires by turning the steering wheel through its full range of motion to make sure you're free from body or suspension interference.
  • Wheels / Tires: For optimal tire clearance and reduce the need for trimming, use 20x9 wheels with 5.5-5.75" backspacing.

Fits:

  • Chevrolet:
    • 2007-2013 Silverado 1500 RWD
  • GMC:
    • 2007-2013 Sierra 1500 RWD

Features:

  • Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
  • High pressure, extended length, replacement front struts improve performance on and off-road.
  • High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
  • High-strength, CNC machined replacement steering knuckles improve strength while correcting steering angles.
  • Proudly made in the USA.
  • Rear lift block and longer U-bolts for easy installation and level stance.

Nitro Series Shocks Features:

  • Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance
  • Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft
  • Bushings and sleeves included for easy, direct replacement installation

Specs:

  • Front Lift Height: 6.5"
  • Rear Lift Height: 2"
  • Front Lift Method: Knuckle & Strut Spacer
  • Rear Lift Method: Cast Blocks
  • Lift Type: Lift Kit
  • Wheel Size: 17 x 9
  • Back Spacing: 5"
  • Max Tire Size: 35 x 12.5
  • Wheel Size 2: 18 x 9
  • Back Spacing 2: 5"
  • Max Tire Size 2: 35 x 12.5
  • Wheel Size 3: 20 x 9
  • Back Spacing 3: 5.75"
  • Max Tire Size 3: 35 x 12.5
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: Yes

You can view and download the assembly/instruction booklet here.
