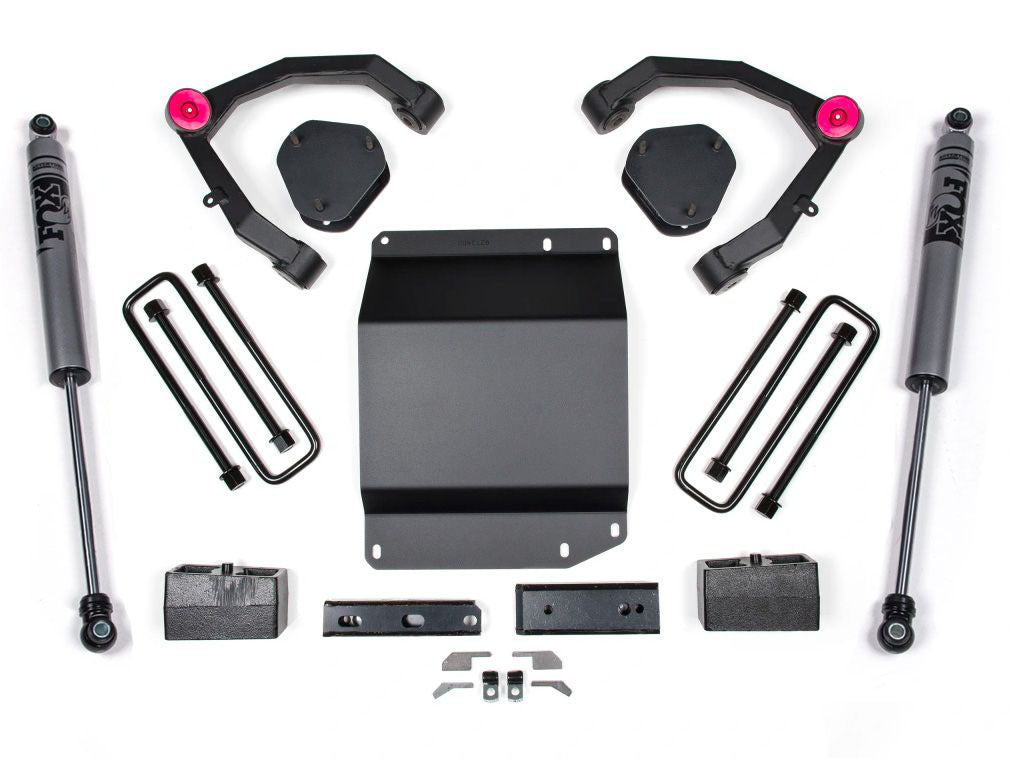

ZONE 2007-2013 CHEVY,GMC 1500 4WD TRUCK 3.5" UPPER CONTROL ARM LIFT,W/FOX SHOCKS

Brand New Zone Offroad 3.5" Suspension Lift Kit with FOX 2.0 Shocks (Part #ZONC29F).

This lift kit is built around replacement upper control arms that dwarf factory components and are made from fully-welded 1/8" steel plate and CNC-machined ball joint and bushing mounts to provide significant gains in suspension travel. The arms utilize high quality ball joints that can handle heavy-duty use and work in conjunction with stock-style rubber mount bushings to provide a quiet ride. A fully integrated front differential drop and differential skid plate system relocates the differential for optimal driveline angles. The included strut spacers provide a full 3.5" of lift and install easily on the factory struts without requiring the use of a strut compressor. A block and U-bolt system nets 2" of lift and provides an athletic level vehicle stance.

Fits:

• Chevrolet:
• 2007-2013 Silverado 1500 4WD
• GMC:
• 2007-2013 Sierra 1500 4WD

Notes:

• Certain tire/wheel packages can fit with the addition of the provided weld-on steering stops. These are necessary for deeper backspaced wheels to maintain proper tire clearance to the new upper control arms.
• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper.
• Fits Gas and Diesel Models.
• Minor frame and front differential trimming required - see installation instructions for details.
• Fitment: Will NOT fit 2007 "Classic" models. If you have a 2007 Classic, see kits for comparable 1999-06 models.
• WILL NOT FIT HYBRID MODELS.

• Recommended Tires & Wheels (Trimming may be required): 285 / 70 with 17 x 9 and 4.5 in. Backspace

Features:

• Fully welded, heavy duty upper control arms that dwarf the factory arms
• CNC-machined upper control arm bushing and ball joint cups.
• OE rubber bushings and greaseable factory style ball joints for quiet, reliable, and low maintenance operation.
• Improved upper control arm range of motion compared to stock arms
• Adventure Series upper control arms utilize replaceable ball joints and bushings
• Fully integrated front differential drop and skid plate for optimal driveline angles

FOX 2.0 Adventure Series:

• 2-inch diameter steel body
• Internal floating piston (IFP) monotube design

• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting silver coated finish

Specs:

• Front Lift Method: Strut Spacer

• Front Lift Height: 3.5

• Rear Lift Method: Block

• Rear Lift Height: 2

You can view and download the complete assembly instruction booklets for this kit here.
