ZONE 1973-1976 CHEVY,GMC 1500 TRUCKS,SUV 6" LEAF SPRING LIFT KIT,NITRO SHOCKS

ZONE 1973-1976 CHEVY,GMC 1500 TRUCKS,SUV 6" LEAF SPRING LIFT KIT,NITRO SHOCKS

STU ZONC23N

$652.60
$652.60
View full details

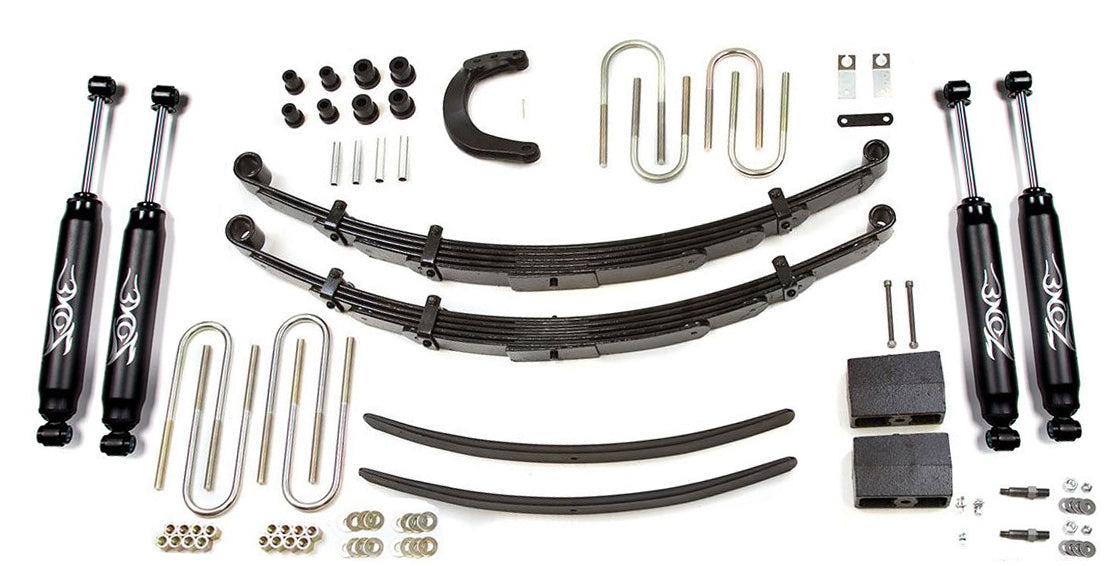

Brand New Zone Offroad 6" Leaf Spring Lift Kit with Zone Nitro Shocks (Part #ZONC23N).

You’ve got a classic Chevy, give it a lifted look with this 6" Lift Kit. It’s everything you need to clear massive 37" tires. This kit is built to deliver show-stopping looks and daily driving reliability.

Notes:

  • Auxiliary Shocks? If your vehicle is equipped with factory auxiliary front shocks, you will need to order auxiliary shocks to complete your kit.
  • Driveline Notice: On some models, the front driveshaft may need clearance at the double cardan joint to prevent binding.
  • Some models may require the transfer case drop kit C5001 to alleviate driveshaft vibration.
  • The front exhaust cross-over pipe may need to be modified to clear the front driveshaft on some models.

Fits:

  • Chevrolet:
    • 1973-1974 K20 Pickup/Suburban
    • 1975-1976 K20/Suburban
    • 1975-1976 K5 Blazer
  • GMC:
    • 1973-1976 Jimmy 4WD
    • 1973-1974 K25 Pickup/Suburban
    • 1973-1974 K2500 Pickup/Suburban
    • 1975-1976 K25/Suburban

Features:

  • Brake line relocation brackets allow re-use of factory brake lines.
  • Heavy-duty replacement front leaf springs provide lift and great ride quality.
  • High-strength, black e-coated U-bolts.
  • Rear Add-A-Leaf Kit provides additional lift and improves weight capacity.
  • Rear lift block and longer U-bolts for easy installation and level stance.
  • Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.

Nitro Series Shocks Features:

  • Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance
  • Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft
  • Bushings and sleeves included for easy, direct replacement installation

Specs:

  • Front Lift Height: 6"
  • Rear Lift Height: 5 or 6" with Add-A-Leaf
  • Front Lift Method: Leaf Springs
  • Rear Lift Method: Add-A-Leaf & Cast Block
  • Lift Type: Lift Kit
  • Wheel Size: 15 x 8
  • Back Spacing: 3.5"
  • Max Tire Size: 37 x 12.5
  • Wheel Size 2: 16 x 8
  • Back Spacing 2: 3.5"
  • Max Tire Size 2: 37 x 12.5
  • Cutting Required: No
  • Accommodates Factory Wheels: No
  • Welding Required: No

You can view and download the assembly/instruction booklet here.
