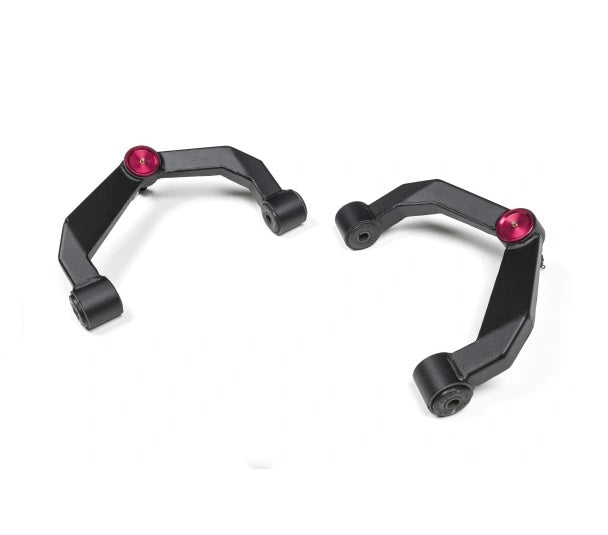

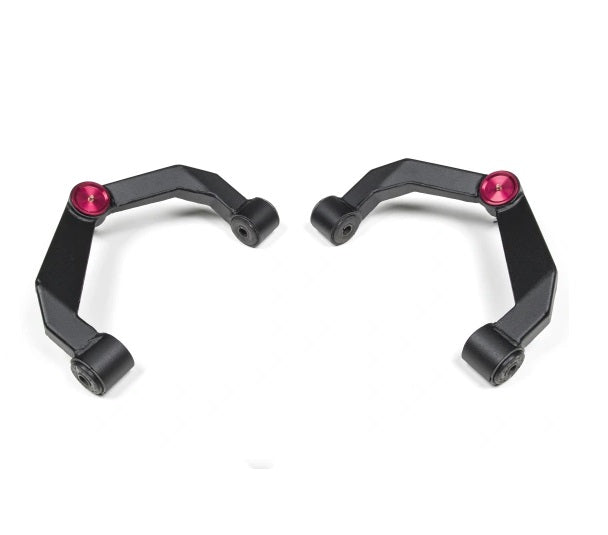

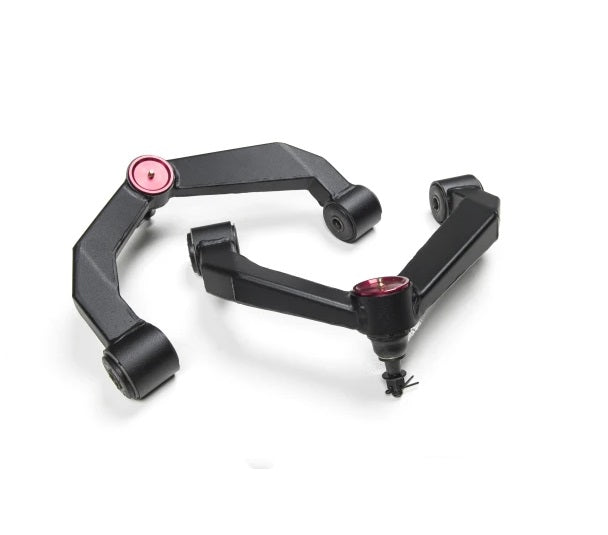

ZONE 2011-2018 CHEVY 2500HD,3500HD UPPER CONTROL ARM KIT (WITH BALL JOINT)

BRAND NEW ZONE OFFROAD ADVENTURE SERIES UPPER CONTROL ARMS, COMPATIBLE WITH 2011-2019 CHEVROLET & GMC 2500HD/3500HD TRUCKS

THESE ARMS ARE BUILT FROM HIGH STRENGTH STEEL, BOXED, GUSSETED AND FULLY WELDED FOR STRENGTH AND RIGIDITY. AT THE FRAME MOUNT THEY USE OE STYLE RUBBER BUSHINGS FOR A LONG SERVICE FREE LIFE AND QUIET OPERATION. AT THE OTHER END THESE ARMS FEATURE AN INDEXED BALL JOINT CUP DESIGNED FOR USE WITH LEVELING AND LIFTED APPLICATIONS. HIGH STRENGTH BALL JOINTS ARE USED WITH A PROTECTIVE BALL JOINT CAP TO KEEP DEBRIS OUT. THESE UPPER CONTROL ARMS COME FULLY ASSEMBLED AND READY TO BOLT IN RIGHT OUT OF THE BOX.

NOTE: 17X9 W/ 5"-5.5" BACKSPACED WHEELS.

NOTE: 18X9 W/ 6" BACKSPACED WHEELS.

NOTE: INCLUDES A PAIR (2) OF UPPER CONTROL ARMS.

NOTE: WHEEL SIZE & BACKSPACING RECOMMENDATIONS FOR PROPER TIRE CLEARANCE AT BALL JOINT: 20X9 W/6"

NOTE: BACKSPACED WHEELS.

COMPATIBLE WITH:

• CHEVROLET:
• 2011-2019 SILVERADO 2500 HD
• 2011-2019 SILVERADO 3500 HD
• GMC:
• 2011-2019 SIERRA 2500 HD
• 2011-2019 SIERRA 2500 HD

FEATURES:

• IMPROVED STRENGTH WITH FULLY WELDED PLATE STEEL CONSTRUCTION
• CNC MACHINED BALL JOINT CUP WITH IMPROVED POSITIONING IDEAL FOR USE WITH LEVELING/LIFT KITS
• HIGH QUALITY GREASEABLE BALL JOINTS WITH A PROTECTIVE CAP TO KEEP OUT DIRT/DEBRIS
• OE STYLE RUBBER BUSHINGS FOR DURABILITY AND MAINTENANCE-FREE OPERATION
• FULLY ASSEMBLED AND READY TO INSTALL

SPECS:

• HORIZONTAL POSITION: FRONT
• MATERIAL: STEEL PLATE
• VERTICAL POSITION: UPPER
• ADJUSTABLE: NO
• FINISH: POWDER COAT
• CUTTING REQUIRED: NO
• WELDING REQUIRED: NO

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE CONTROL ARMS HERE.
