ZONE 2019-2025 CHEVY,GMC 1500 4WD 2" LEVELING KIT
ZONE 2019-2025 CHEVY,GMC 1500 4WD 2" LEVELING KIT
SKU:STU ZONC1241
Couldn't load pickup availability
Brand New Zone Offroad 2" Leveling Kit (Part #ZONC1241).

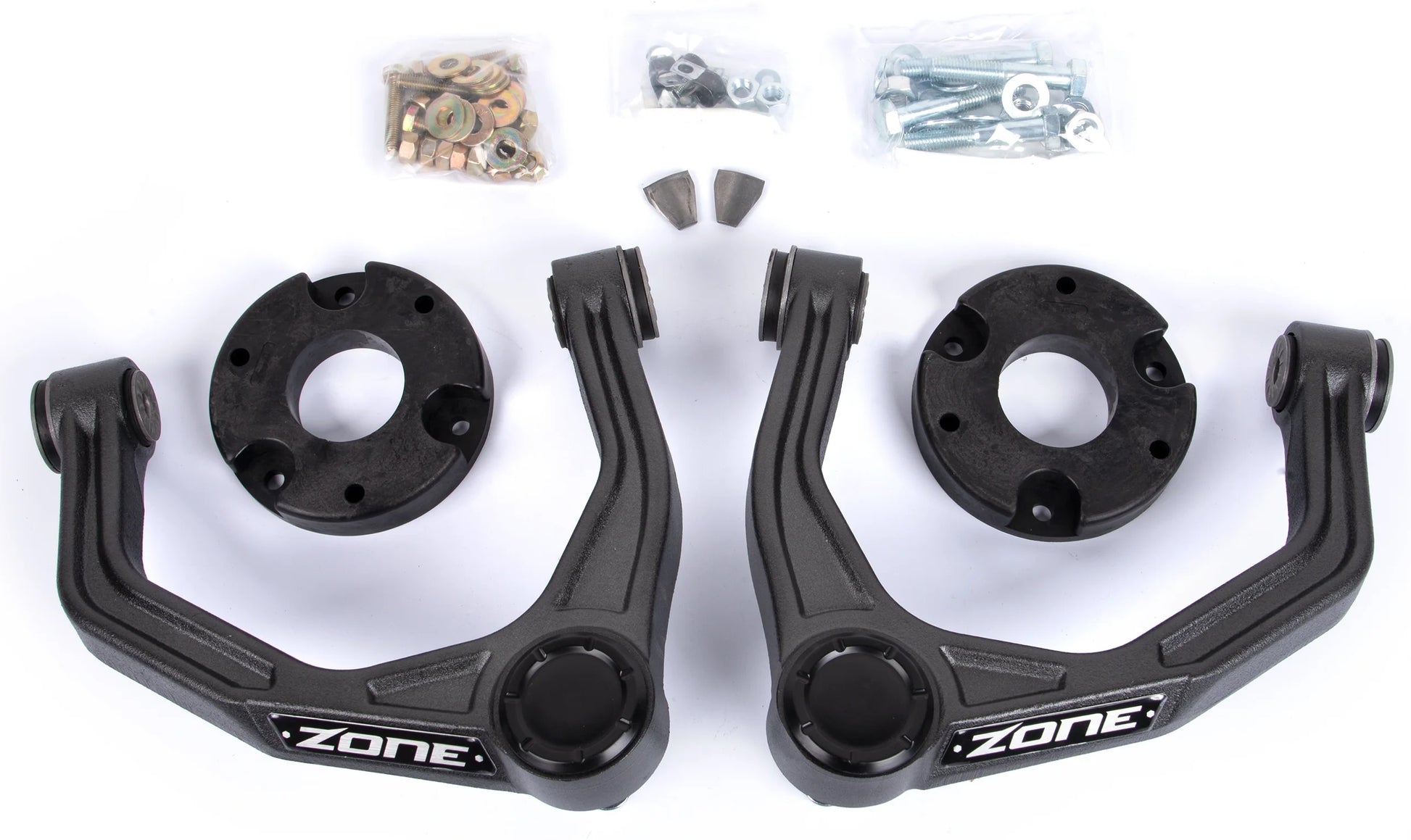

Level out the stance of your Chevrolet/GMC 1500 truck with this quick and easy to install 2" leveling kit from Zone Offroad. Kit includes high-strength top-mounted strut spacer, cast ductile iron control arms and mounting hardware and options for weld on steering stops. Get the look your truck deserves, while maintaining ride quality with clearance for up to 34" tires.
Fits:
- Chevrolet:
- 2019-2025 Silverado 1500 4WD
- GMC:
- 2019-2025 Sierra 1500 4WD
Notes:
- This kit has not been test fitted on Silverado ZR2 or Sierra AT4X models at this time.
- While it's not necessary on all vehicles, some tire/wheel combinations have tight clearance to the factory control arms. To resolve this Zone Offroad includes a pair of optional weld-on steering stop extensions that can be installed on the lower control arm to limit steering slightly.
- Stock Wheel and Tires will require 1/4" wheel spacers. (Tight to upper ball joint and arm when turning)
- 2022 Models: This system has not been tested on models equipped with Super Cruise.
- Will fit ARC (Adaptive Ride Controlled) Equipped Trucks
-
Recommended Tires & Wheels (Trimming may be required): 295/70R17 - Stock Wheel, 295/65R18 - Stock Wheel, 295/60R20 - Stock Wheel or 285/60R20 5" Backspacing
Features:
- Fast and easy install does not change your factory ride.
- Easy to follow instructions included.
- Grade 8 hardware included Long term corrosion resistance.
- Optional Steering Stop Extension Included Allows clearance for up to 295/70r17 tires.
Specs:
-
Front Lift Method: Strut Spacer
-
Front Lift Height: 2"
-
Rear Lift Method: Stock
- Rear Lift Height: 0"
You can view and download the complete assembly instruction booklet for this kit here.
