ZONE 2019-2025 CHEVY,GMC 1500 AT4X,ZR2 TRUCK 1.5-1.75" CONTROL ARM LEVELING KIT

Brand New Zone Offroad 1.5-1.75" Leveling Kit (Part #ZONC1174).

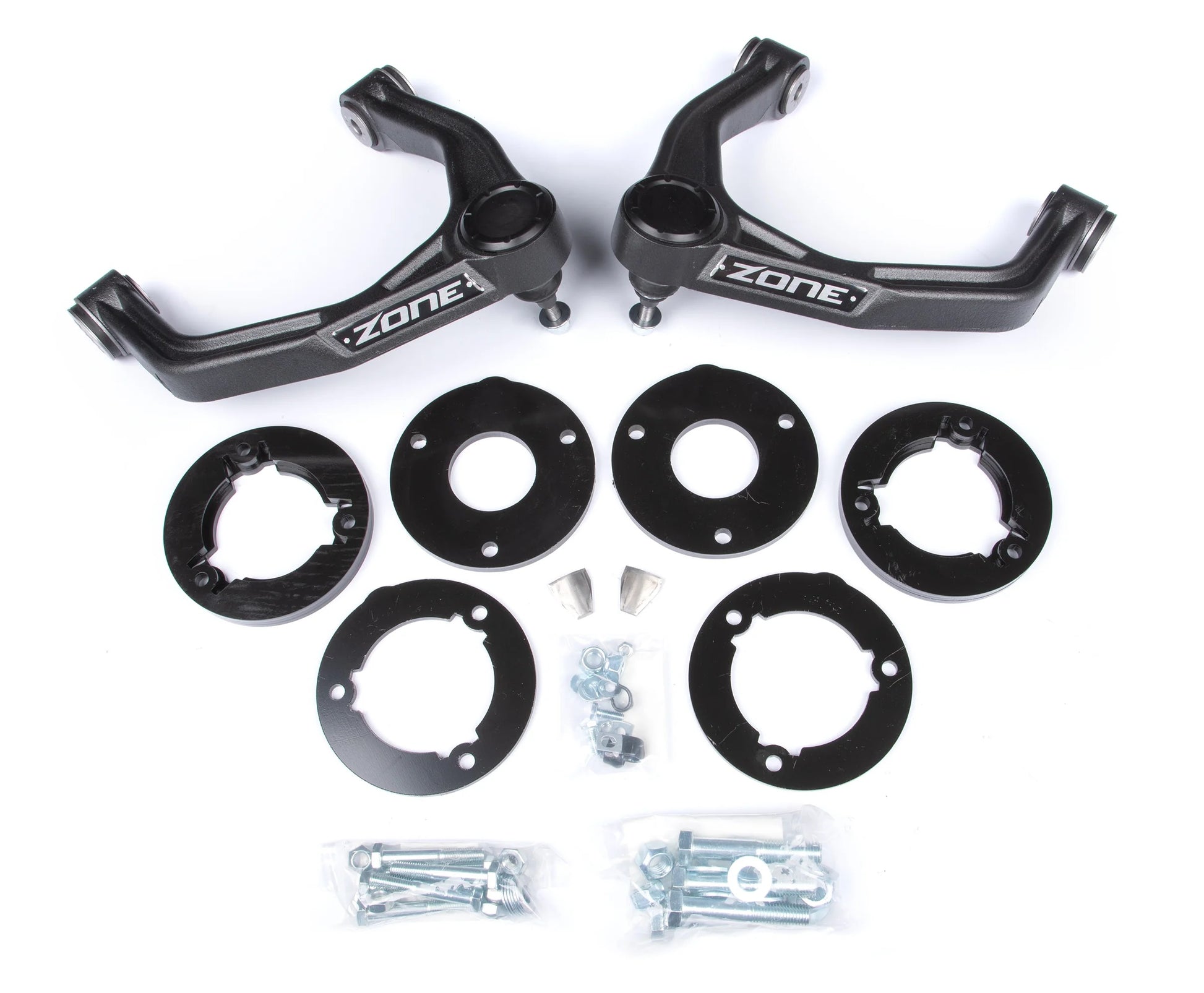

Specially designed for the 2019-2025 Chevy 1500 ZR2 or Trail Boss and GMC 1500 AT4X or AT4 trucks, these kits are designed to a higher standard, working within the parameters of the factory suspension and steering geometry to maximize potential while allowing optimal clearance for larger tires. Kits include strut spacers, adventure series upper control arms, hardware packs and steering stop extensions.

Compatible with:

• Chevrolet:
  • 2019-2025 Silverado 1500 Trail Boss 4WD (Nets 1.75" Lift)
  • 2022-2025 Silverado 1500 ZR2 4WD (Nets 1.5" Lift)
• GMC:
• 2019-2025 Sierra 1500 AT4 4WD (Nets 1.75" Lift)
• 2022-2025 Sierra 1500 AT4X 4WD (Nets 1.5" Lift)

Notes:

• Use 1/4" spacer to achieve 1.75" lift on the AT4 & Trail Boss, Don't install the 1/4" spacer to achieve a level stance on a AT4X & ZR2.

• Tires wider than 295/ cannot be installed on factory wheels due to clearance issues to the steering knuckles.

• Will not fit Adaptive Ride Control (ARC) equipped models.

• 2022+ Models: This system has not been tested on models equipped with Super Cruise.

Tire & Wheel Fitment:

• 5.5" MAX Backspacing due to UCA Clearance
• 35/12.50 18x9, 20x9; 5.5" BS (Chevy)
• 33/12.50 18x9, 20x9; 5.5" BS (GMC)
• 295/60 20x9; 5.5" BS (GMC)
• 295/60 20x9, 5.5-4.5" BS (Chevy)
• 305/55 20x9, 5.5-4.5" BS (GMC & Chevy)
• 295/65 18x9, 5.5-4.5" BS (GMC & Chevy)
• 295/70 17x9, 5.5-4.5" BS (GMC & Chevy)

Features:

• 3-piece design with top mount spacer and 2 preload spacers to raise ride height without over-extending suspension during droop travel.

• High strength adventure series upper control arms allow more travel, increase strength and correct issues caused by kits using the factory UCAs.

• Maintains ride quality and handling characteristics.

• Allows clearance for 33-34" tires.

• Includes Factory Protection Plus

Specs:

• Front Lift Method: Strut Spacer

• Front Lift Height: 1.5-1.75"

• Rear Lift Method: Stock

• Rear Lift Height: 0"

You can view and download the complete assembly instruction booklets for this leveling kit here.
