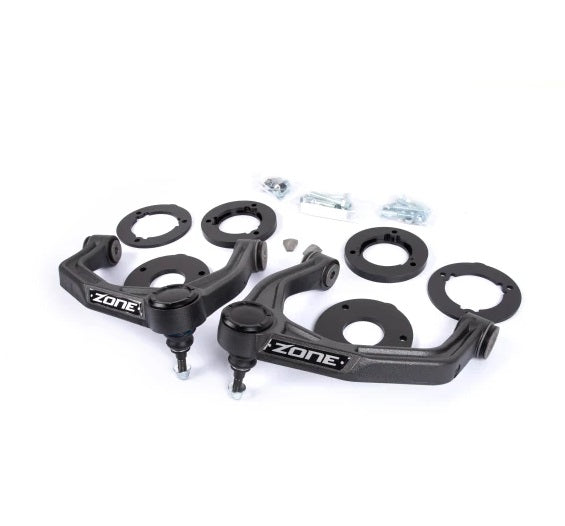

ZONE 2019-24 CHEVY,GMC 1500 AT4,TRAIL BOSS TRUCK 1.75" CONTROL ARM LEVELING KIT

BRAND NEW ZONE OFFROAD 1.75" LEVELING KIT, COMPATIBLE WITH 2019-2023 CHEVY 1500 TRAIL BOSS & GMC 1500 AT4

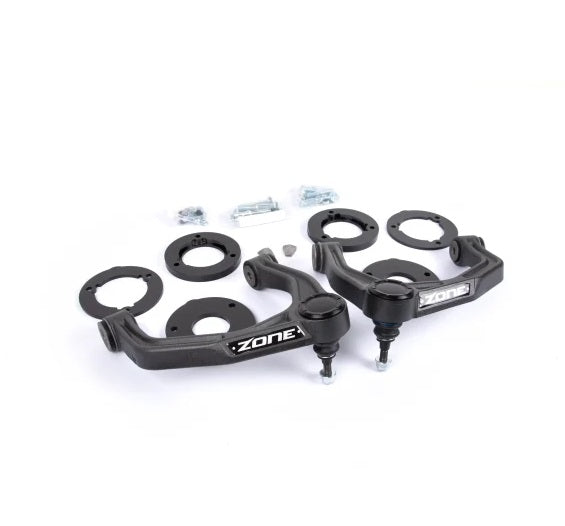

SPECIALLY DESIGNED FOR THE 2019-2023 CHEVY TRAIL BOSS AND GMC AT4 TRUCKS, THESE KITS ARE DESIGNED TO A HIGHER STANDARD, WORKING WITHIN THE PARAMETERS OF THE FACTORY SUSPENSION AND STEERING GEOMETRY TO MAXIMIZE POTENTIAL WHILE ALLOWING OPTIMAL CLEARANCE FOR LARGER TIRES. KITS INCLUDE STRUT SPACERS, ADVENTURE SERIES UPPER CONTROL ARMS, HARDWARE PACKS AND STEERING STOP EXTENSIONS.

NOTE: COMPLETE 1.75" LEVELING RECOMMENDED FOR AT4, TRAIL BOSS SUSPENSION NOT AS RAKED FOR THE FACTORY SO INSTALLING WITHOUT THIN PRELOAD SPACER WILL NET 1-3/8" LIFT FOR A LEVEL STANCE.

NOTE: TIRES WIDER THAN 295/ CANNOT BE INSTALLED ON FACTORY WHEELS DUE TO CLEARANCE ISSUES TO THE STEERING KNUCKLES.

NOTE: WILL NOT FIT ADAPTIVE RIDE CONTROL (ARC) EQUIPPED MODELS.

NOTE: 2022 MODELS: THIS SYSTEM HAS NOT BEEN TESTED ON MODELS EQUIPPED WITH SUPER CRUISE.

COMPATIBLE WITH:

• CHEVROLET:
• 2019-2023 SILVERADO 1500 CUSTOM
• GMC:
• 2019-2023 SIERRA 1500 AT4

TIRE & WHEEL FITMENT:

• 5.5" MAX BACKSPACING DUE TO UCA CLEARANCE
• 35/12.50 18X9, 20X9; 5.5" BS (CHEVY)
• 33/12.50 18X9, 20X9; 5.5" BS (GMC)
• 295/60 20X9; 5.5" BS (GMC)
• 295/60 20X9, 5.5-4.5" BS (CHEVY)
• 305/55 20X9, 5.5-4.5" BS (GMC & CHEVY)
• 295/65 18X9, 5.5-4.5" BS (GMC & CHEVY)
• 295/70 17X9, 5.5-4.5" BS (GMC & CHEVY)

FEATURES:

• 3-PIECE DESIGN WITH TOP MOUNT SPACER AND 2 PRELOAD SPACERS TO RAISE RIDE HEIGHT WITHOUT OVER-EXTENDING SUSPENSION DURING DROOP TRAVEL
• HIGH STRENGTH ADVENTURE SERIES UPPER CONTROL ARMS ALLOW MORE TRAVEL, INCREASE STRENGTH AND CORRECT ISSUES CAUSED BY KITS USING THE FACTORY UCAS
• MAINTAINS RIDE QUALITY AND HANDLING CHARACTERISTICS
• ALLOWS CLEARANCE FOR 33-34" TIRES
• INCLUDES FACTORY PROTECTION PLUS

SPECS:

• FRONT LIFT HEIGHT: 1.75"
• MATERIAL: METAL
• FRONT LIFT METHOD: STRUT SPACERS & PRELOAD
• LIFT TYPE: LEVELING KIT
• ADJUSTABLE: NO
• CUTTING REQUIRED: NO
• ACCOMMODATES FACTORY WHEELS: YES
• WELDING REQUIRED: NO

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS LEVELING KIT HERE.
