ZONE NITRO- 24.70 X 14.80 X 2-3/8 - S1/BP7

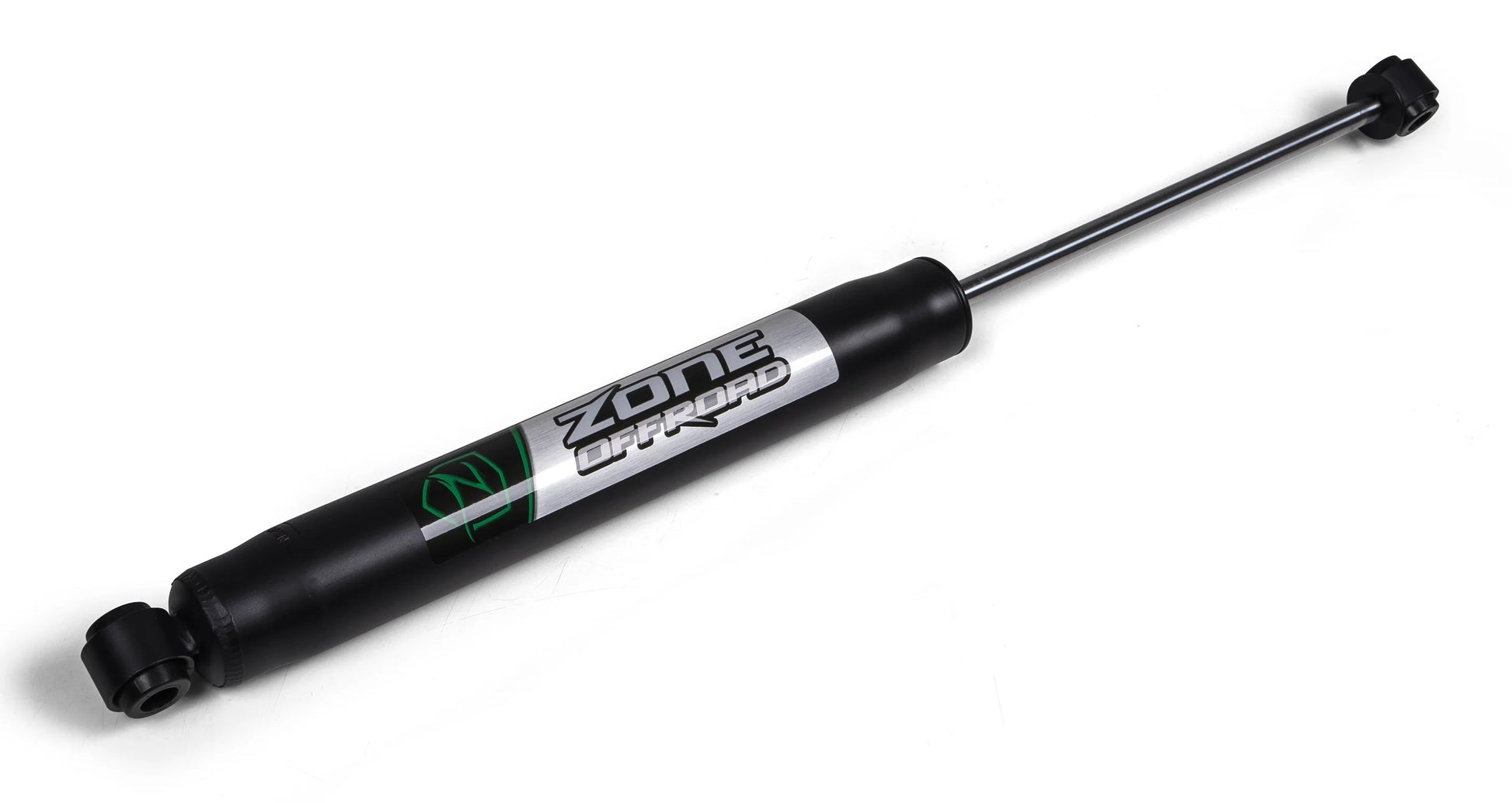

Brand New Zone Offroad Front Nitro Shock, Vehicle Specific, 24.70 x 14.80 x 2-3/8 - S1/BP7 (Part #ZON7965).

Zone Nitro Series shock absorber offers stock-like control and performance with fully displaced valving for improved compression and extension travel. This vehicle specific valving is pressurized with 50 psi nitrogen gas; this gas charge ensures split second response and reduced aeration. Combine these features with the special Fluon-banded piston and this shock is built to perform! Shock absorbers are sold individually and include bushings/sleeves.

Fits:

• Jeep:
  • 1984-2001 Cherokee with 3" or 4.5" Lift

  • 1986-1992 Comanche with 4.5" Lift
  • 1993-2006 Grand Cherokee with 4" Lift

Features:

• Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance

• Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft

• Bushings and sleeves included for easy, direct replacement installation

• Shock absorbers are sold individually

Specs:

• Compressed Length: 14.79 Inch

• Extended Length: 24.66 Inch
• Cylinder Diameter: 5/8"
• Lower Mount Type: Bar Pin

• Upper Mount Type: Stem

You can view and download the assembly or instruction booklet here.
