ZONE NITRO- 22.00 X 13.40 X 2 - S50-EB1

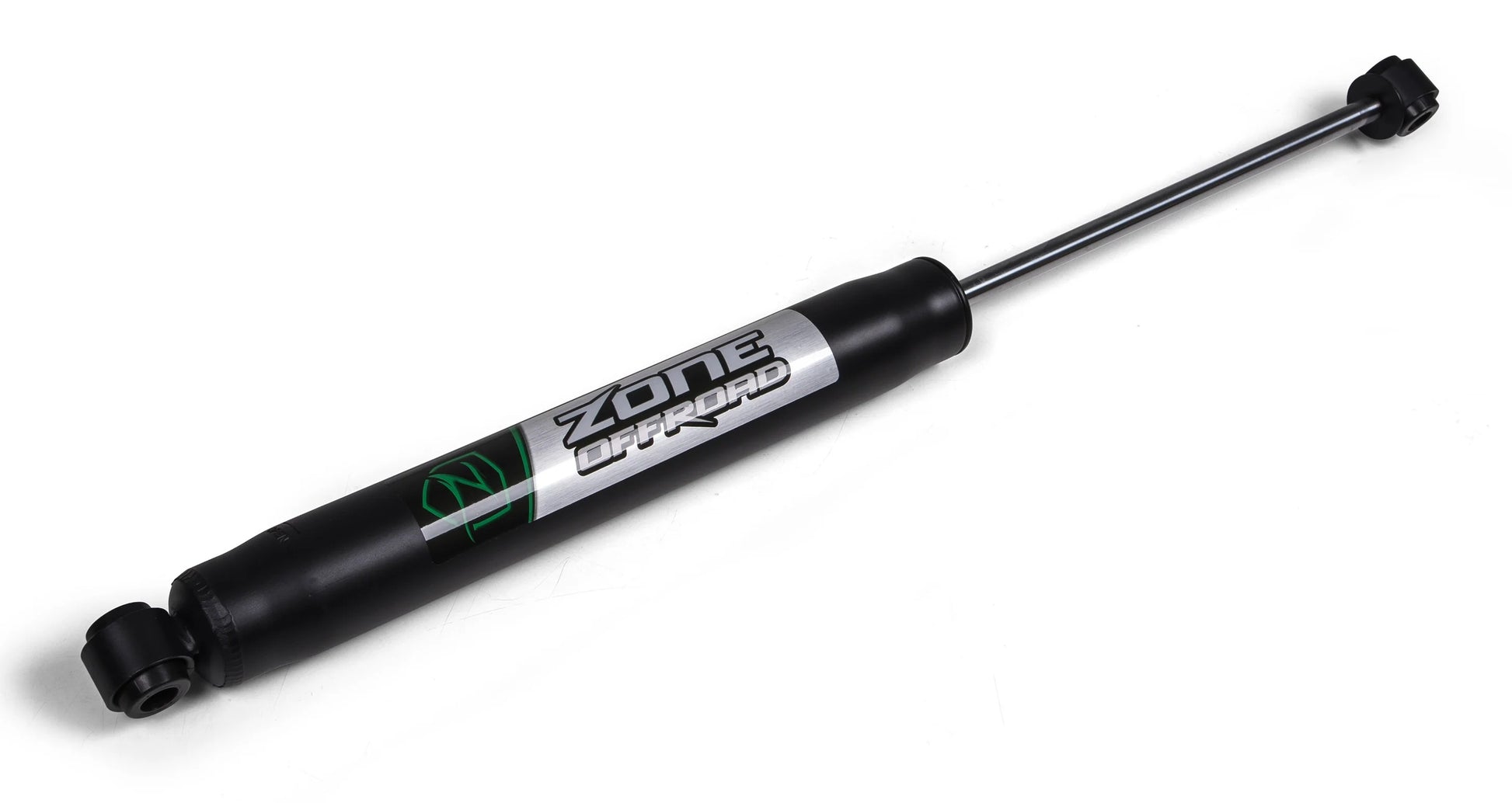

Brand New Zone Offroad Front Nitro Shock, Vehicle Specific, 22.00 x 13.40 x 2 - S50-EB1 (Part #ZON7804).

Zone Nitro Series shock absorber offers stock-like control and performance with fully displaced valving for improved compression and extension travel. This vehicle specific valving is pressurized with 50 psi nitrogen gas; this gas charge ensures split second response and reduced aeration. Combine these features with the special Fluon-banded piston and this shock is built to perform! Shock absorbers are sold individually and include bushings/sleeves.

Fits:

• Ford:
  • 1998-2002 Expedition 4WD with 6" Lift

  • 1997-2003 F-150 4WD with 6" Lift


Features:

• Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance

• Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft

• Bushings and sleeves included for easy, direct replacement installation

• Shock absorbers are sold individually

Specs:

• Compressed Length: 13.4 Inch

• Extended Length: 22 Inch
• Cylinder Diameter: 5/8"
• Lower Mount Type: Eyelet

• Upper Mount Type: Stem

You can view and download the assembly or instruction booklet here.
