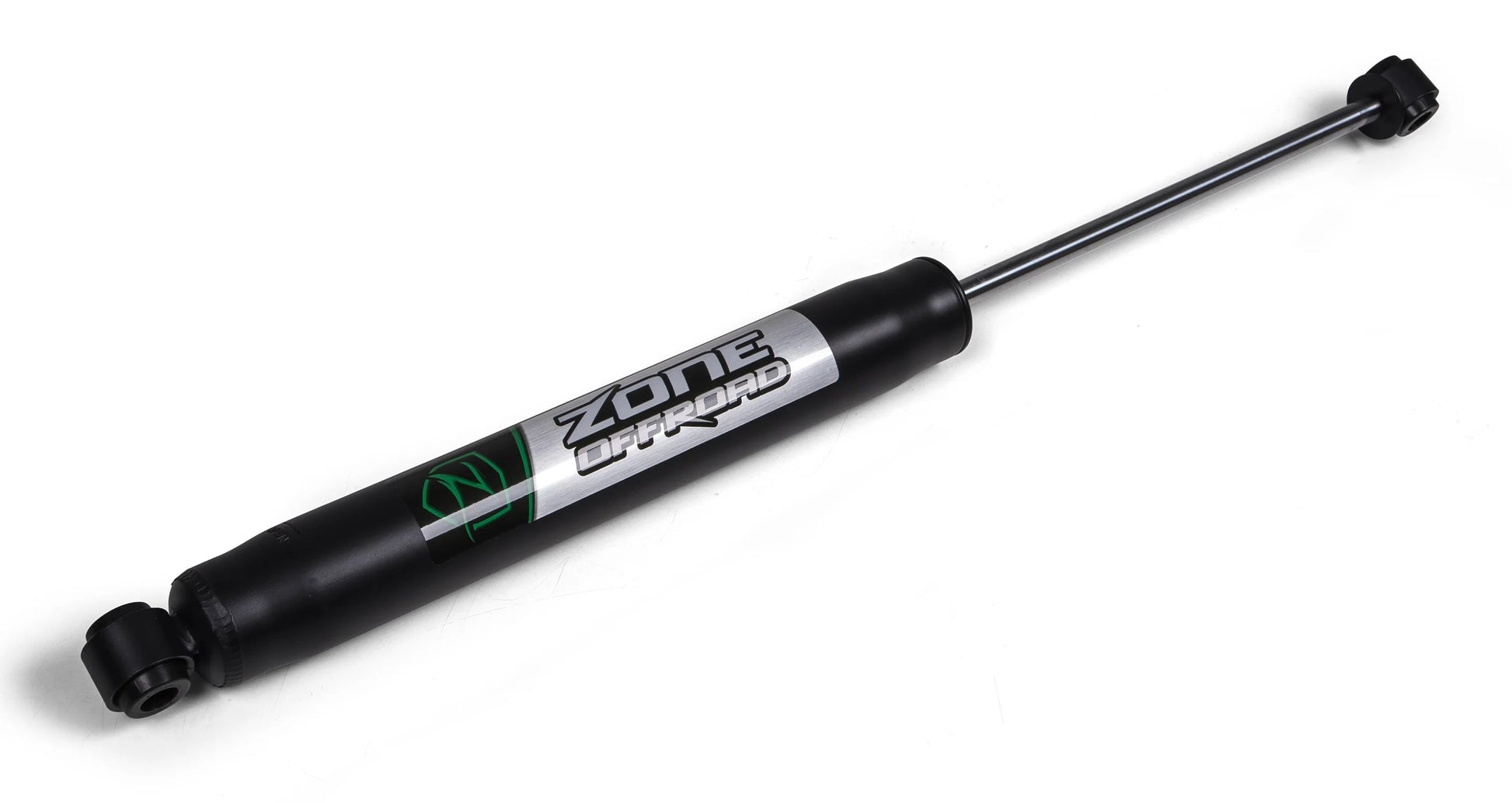

ZONE NITRO- 33.00 X 19.25 X 2-3/8 - EB1/EB1

Brand New Zone Offroad Rear Nitro Shock, Vehicle Specific, 33.00 x 19.25 x 2-3/8 - EB1/EB1 (Part #ZON7763).

Zone Nitro Series shock absorber offers stock-like control and performance with fully displaced valving for improved compression and extension travel. This vehicle specific valving is pressurized with 50 psi nitrogen gas; this gas charge ensures split second response and reduced aeration. Combine these features with the special Fluon-banded piston and this shock is built to perform! Shock absorbers are sold individually and include bushings/sleeves.

Fits:

• Ford:
  • 2004-2019 F-150 with Lift Height of 5"
  • 1999-2004 F-250 Super Duty 4WD with Lift Height of 4"

  • 2005-2016 F-250 Super Duty 4WD with Lift Height of 3" and 5"

  • 1999-2004 F-350 Super Duty 4WD with Lift Height of 4"
  • 2005-2016 F-350 Super Duty 4WD with Lift Height of 3" and 5"


Features:

• Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance

• Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft

• Bushings and sleeves included for easy, direct replacement installation

• Shock absorbers are sold individually

Specs:

• Compressed Length: 19.55 Inch

• Extended Length: 33.02 Inch
• Cylinder Diameter: 5/8"
• Lower Mount Type: Eyelet

• Upper Mount Type: Eyelet

You can view and download the assembly or instruction booklet here.
