ZONE NITRO- 27.90 X 16.55 X 2-3/8 - EB1/EB1

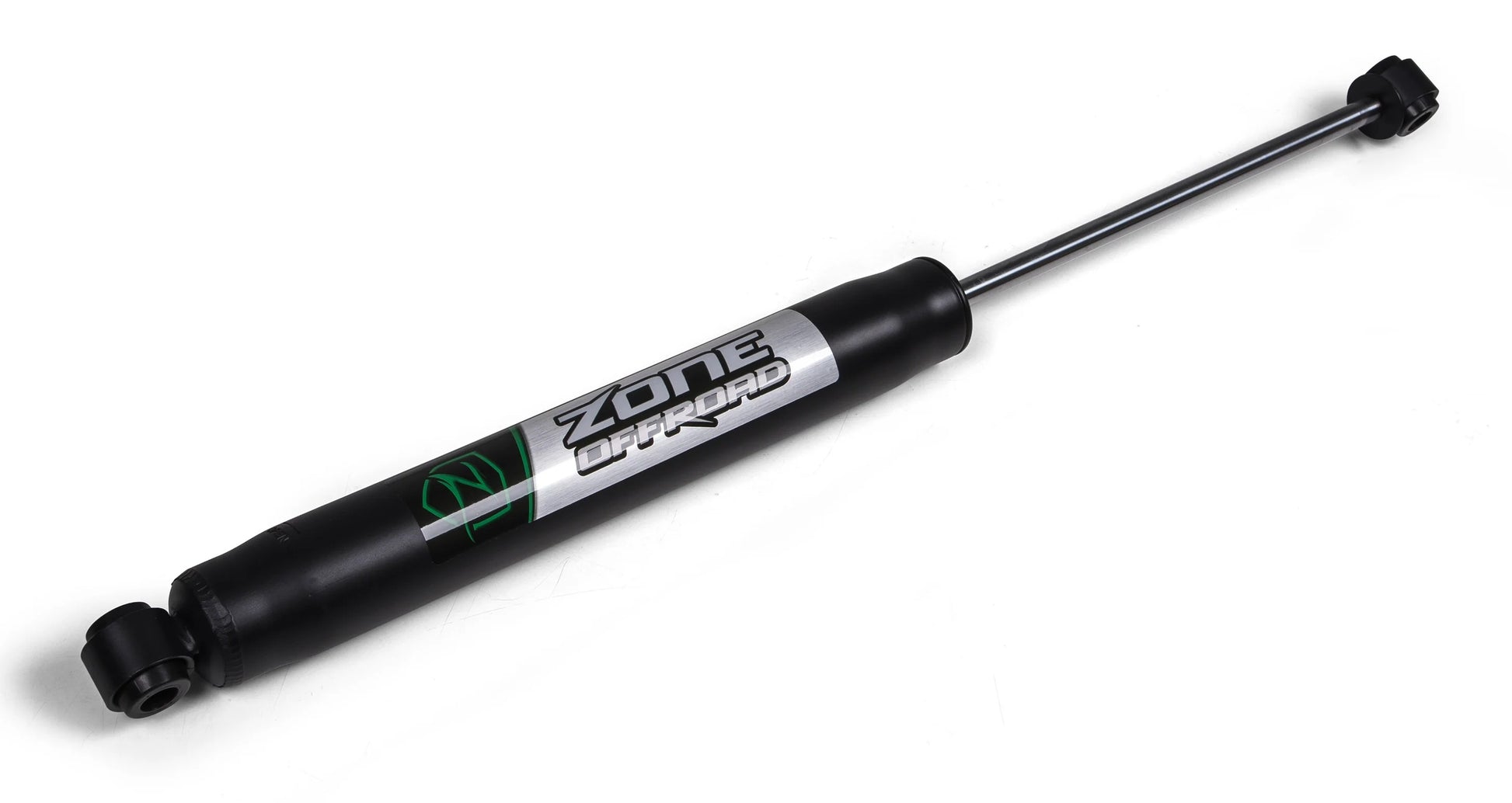

Brand New Zone Offroad Rear Nitro Shock, Vehicle Specific, 27.90 x 16.55 x 2-3/8 - EB1/EB1 (Part #ZON7757).

Zone Nitro Series shock absorber offers stock-like control and performance with fully displaced valving for improved compression and extension travel. This vehicle specific valving is pressurized with 50 psi nitrogen gas; this gas charge ensures split second response and reduced aeration. Combine these features with the special Fluon-banded piston and this shock is built to perform! Shock absorbers are sold individually and include bushings/sleeves.

Fits:

• Chevrolet:
  • 2015-2019 Colorado 4WD with 4" Lift
  • 2001-2006 Silverado 1500 HD 4WD with 2" Lift

  • 2001-2019 Silverado 2500 4WD with 2" Lift

  • 2007-2019 Silverado 3500 4WD with 2" Lift
• GMC:
  • 2015-2016 Canyon 4WD with 4" Lift
  • 2007-2019 Sierra 3500 4WD with 2" Lift
• Ram:

  • 2011-2017 1500 4WD with 3" Lift
  • 2019-2024 1500 Classic 4WD with 3" Lift
• Toyota:
  • 2025 Tundra 4WD with 0" Lift

Features:

• Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance

• Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft

• Bushings and sleeves included for easy, direct replacement installation

• Shock absorbers are sold individually

Specs:

• Compressed Length: 16.55 Inch

• Extended Length: 27.91 Inch
• Cylinder Diameter: 5/8"
• Lower Mount Type: Eyelet

• Upper Mount Type: Eyelet

You can view and download the assembly or instruction booklet here.
