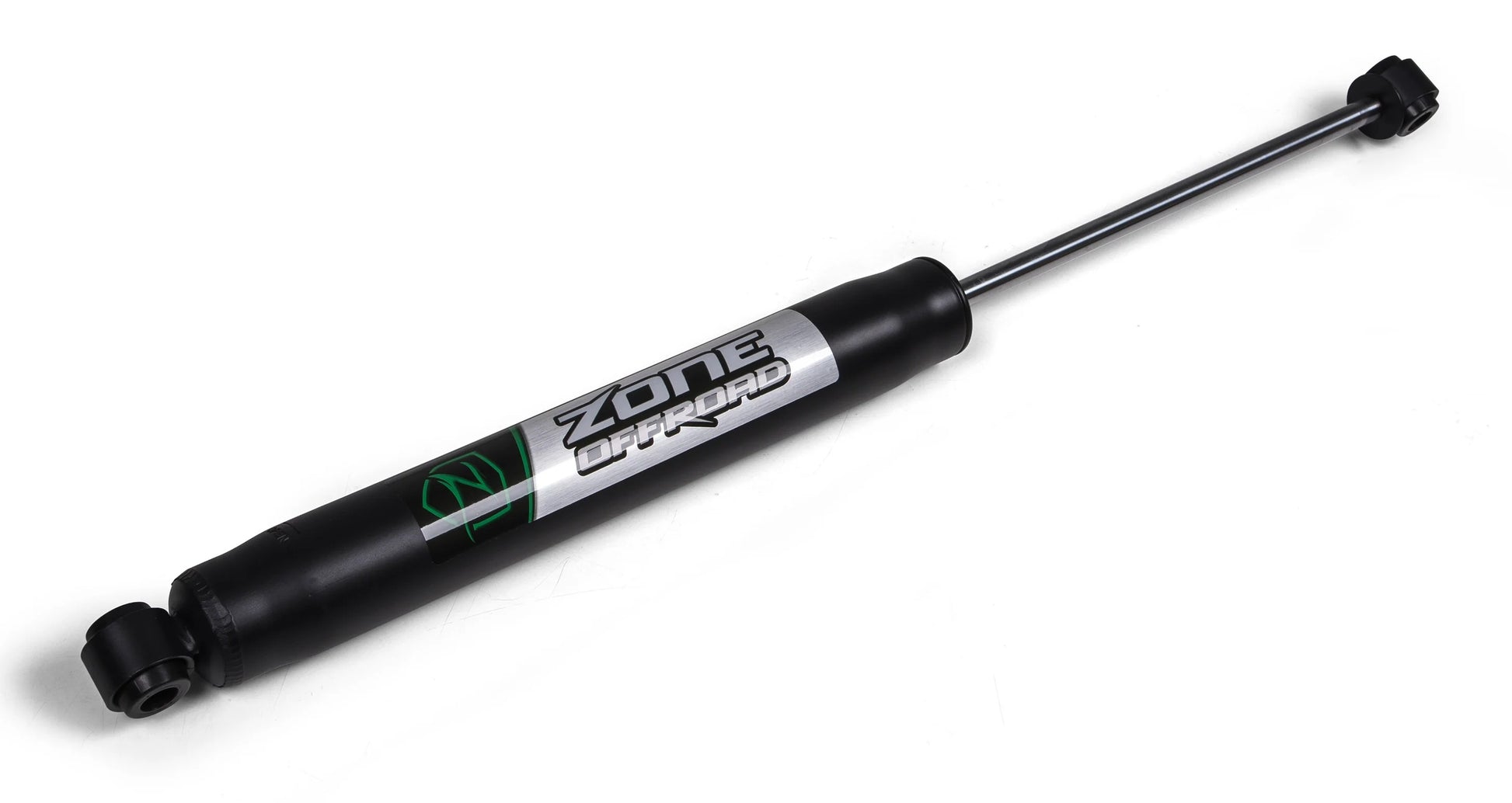

ZONE NITRO- 27.40 X 16.20 X 2-3/8 - S50/EB2

Brand New Zone Offroad Front Nitro Shock, Vehicle Specific, 27.40 x 16.20 x 2-3/8 - S50/EB2 (Part #ZON7750).

Zone Nitro Series shock absorber offers stock-like control and performance with fully displaced valving for improved compression and extension travel. This vehicle specific valving is pressurized with 50 psi nitrogen gas; this gas charge ensures split second response and reduced aeration. Combine these features with the special Fluon-banded piston and this shock is built to perform! Shock absorbers are sold individually and include bushings/sleeves.

Fits:

• Dodge:

  • 2006-2008 Ram 1500 4WD with 6" Lift
  • 1994-2002 Ram 2500 4WD with 5" Lift

  • 2003-2010 Ram 2500 4WD with 6" Lift

  • 1994-2002 Ram 3500 4WD with 5" Lift

  • 2003-2010 Ram 3500 4WD with 6" Lift
• Ford:
  • 2005-2016 F-250 Super Duty 4WD with 6" Lift
  • 2005-2016 F-350 Super Duty 4WD with 6" Lift
• Ram:
  • 2011-2012 2500 4WD with 6" Lift
  • 2011-2012 3500 4WD with 6" Lift

Features:

• Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance

• Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft

• Bushings and sleeves included for easy, direct replacement installation

• Shock absorbers are sold individually

Specs:

• Compressed Length: 16.22 Inch

• Extended Length: 27.4 Inch
• Cylinder Diameter: 5/8"
• Lower Mount Type: Eyelet

• Upper Mount Type: Stem

You can view and download the assembly or instruction booklet here.
