ZONE NITRO- 33.00 X 19.25 X 2-3/8 - EB1/EB1

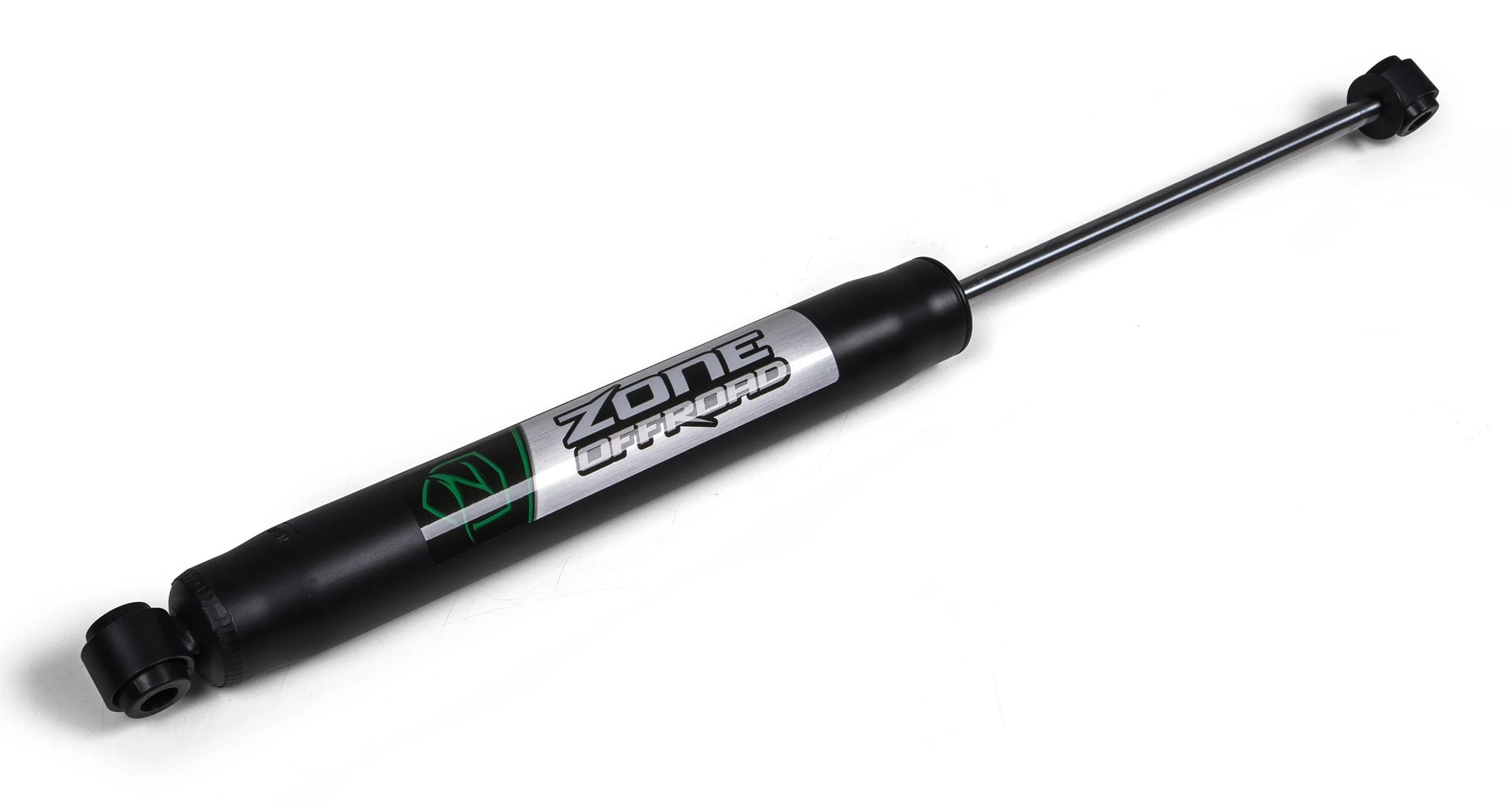

Brand New Zone Nitro Rear Shock. Fits 2017 Ford F-250/F-350 Super Duty 4WD (Part #ZON7718).

Zone Nitro Series shock absorber offers stock-like control and performance with fully displaced valving for improved compression and extension travel. This vehicle specific valving is pressurized with 50 psi nitrogen gas; this gas charge ensures split second response and reduced aeration. Combine these features with the special Fluon-banded piston and this shock is built to perform! Shock absorbers are sold individually and include bushings/sleeves.

Fits:

• Ford:

  • 2017 F-250 Super Duty 4WD with 3" Lift
  • 2017 F-250 Super Duty 4WD with 5" Lift
  • 2017 F-350 Super Duty 4WD with 3" Lift
  • 2017 F-350 Super Duty 4WD with 5" Lift

Features:

• Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance

• Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft

• Bushings and sleeves included for easy, direct replacement installation

• Shock absorbers are sold individually

Specs:

• Lower Mount Type: Eyelet

• Upper Mount Type: Eyelet
• Compressed Length: 19.3 Inch

• Extended Length: 33 Inch
• Cylinder Diameter: 5/8"

You can view and download the assembly/instruction booklet here.
