ZONE NITRO- 25.20 X 15.20 X 2-3/8 - S50/EB2

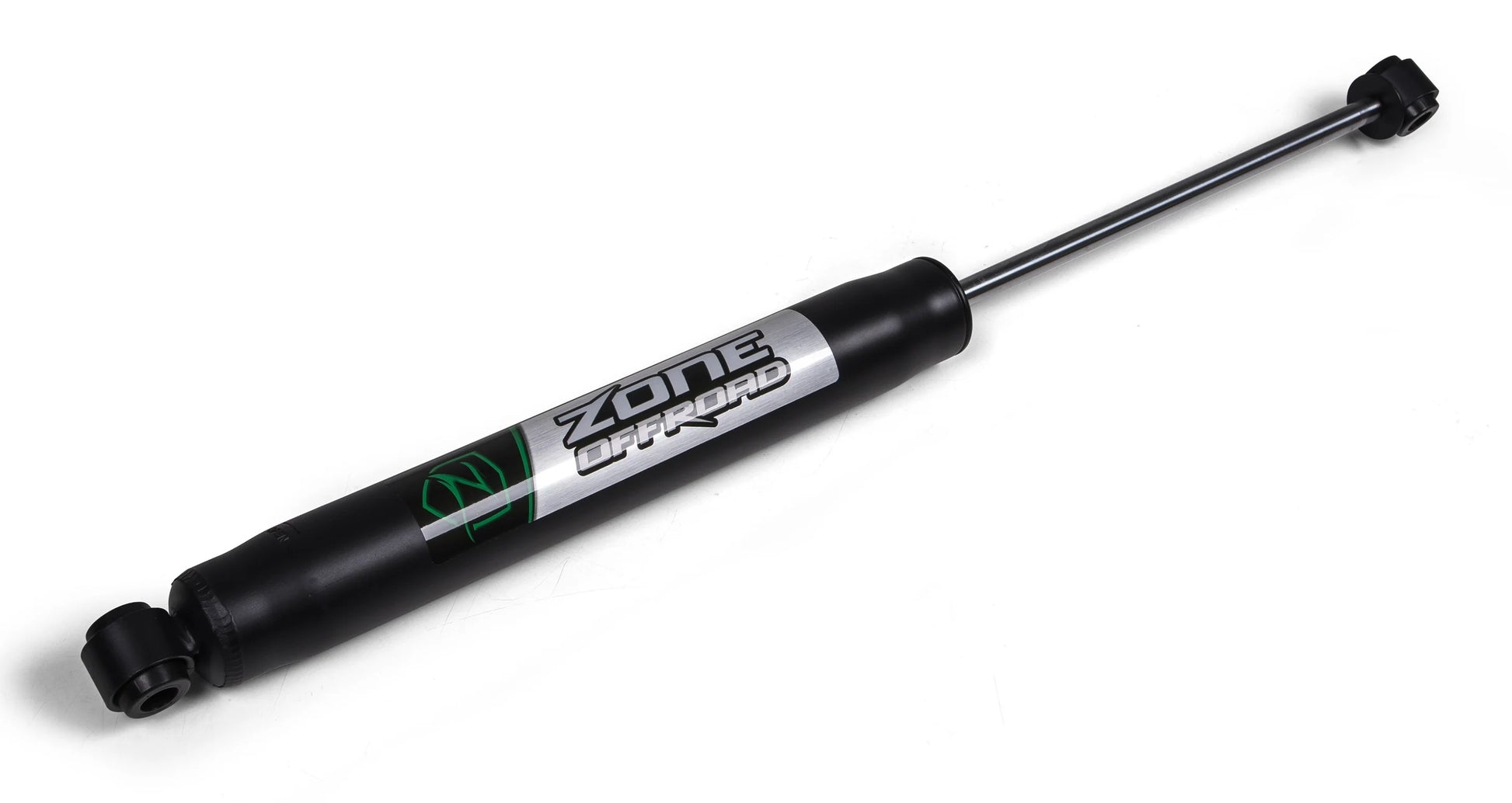

Brand New Zone Offroad Nitro Shock, Vehicle Specific, 25.20 x 15.20 x 2-3/8 - S50/EB2 (Part #ZON7700).

Zone Nitro Series shock absorber offers stock-like control and performance with fully displaced valving for improved compression and extension travel. This vehicle specific valving is pressurized with 50 psi nitrogen gas; this gas charge ensures split second response and reduced aeration. Combine these features with the special Fluon-banded piston and this shock is built to perform! Shock absorbers are sold individually and include bushings/sleeves.

Fits:

• Dodge:
  • 1994-2001 Ram 1500 4WD with 3" Lift (Front)
  • 1994-2010 Ram 2500 4WD with 3" Lift (Front)
  • 1994-2010 Ram 3500 4WD with 3" Lift (Front)
• Ford:
  • 2017-2022 F-250 Super Duty 4WD with 4" Lift (Front)
  • 2017-2022 F-350 Super Duty 4WD with 4" Lift (Front)
• Jeep:
  • 2007-2018 Wrangler with 3" Lift (Front)
  • 2007-2018 Wrangler with 4" Lift (Front)
• Ram:
  • 2011-2012 2500 4WD with 3" Lift (Front)
  • 2014-2018 2500 4WD with 0" Lift (Rear)
  • 2011-2012 3500 4WD with 3" Lift (Front)
• Toyota:
  • 2007-2021 Tundra with 2" Lift (Rear)

Features:

• Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance

• Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft

• Bushings and sleeves included for easy, direct replacement installation

• Shock absorbers are sold individually

Specs:

• Compressed Length: 15.22 Inch

• Extended Length: 25.22 Inch
• Shaft Diameter: 5/8"
• Lower Mount Type: Eyelet

• Upper Mount Type: Stem

You can view and download the assembly or instruction booklet here.
