ZONE NITRO- 30.95 X 18.15 X 2-3/8 - BP8/EB1

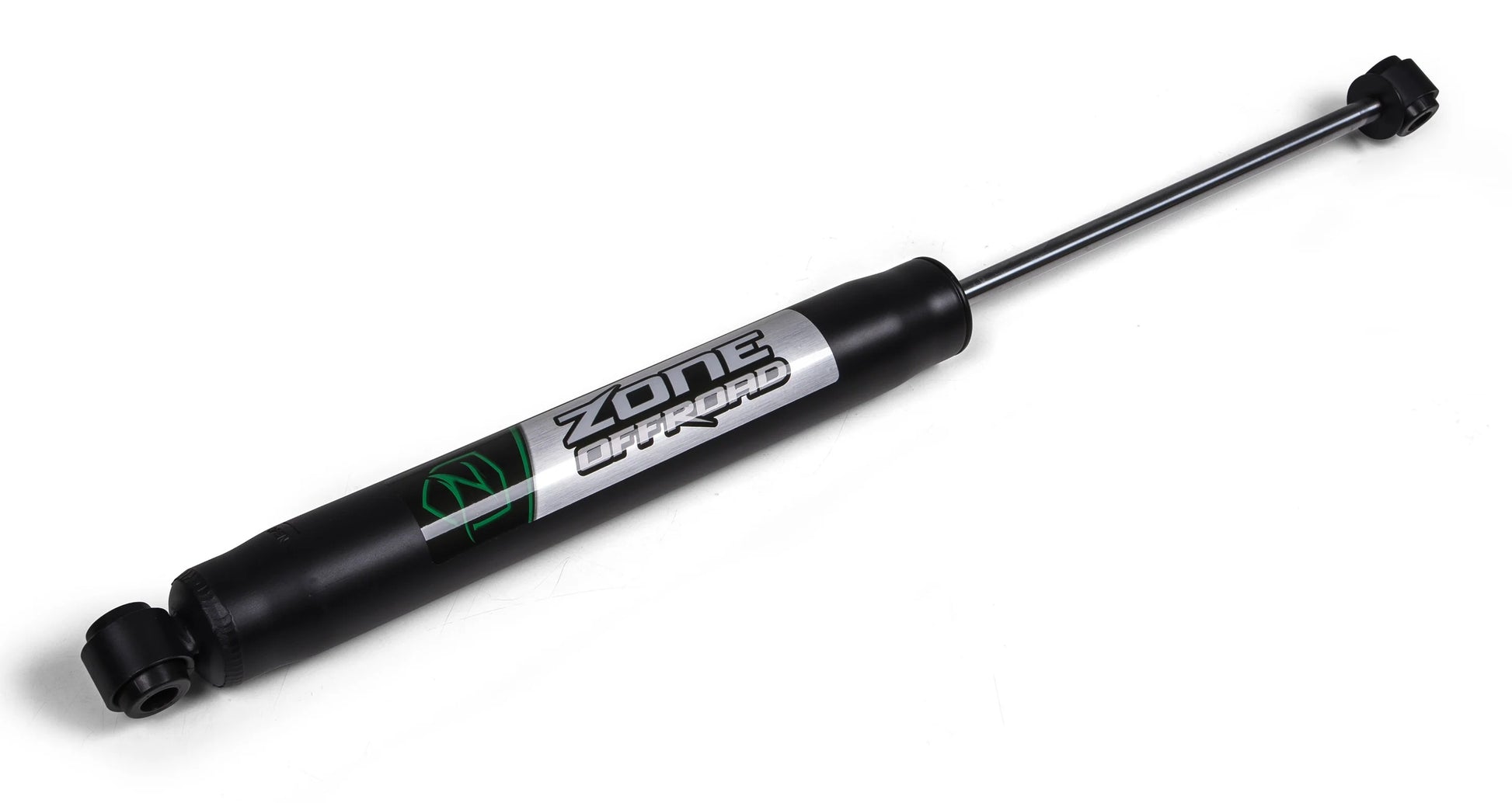

Brand New Zone Offroad Rear Nitro Shock, Vehicle Specific, 30.95 x 18.15 x 2-3/8 - BP8/EB1 (Part #ZON7609).

Zone Nitro Series shock absorber offers stock-like control and performance with fully displaced valving for improved compression and extension travel. This vehicle specific valving is pressurized with 50 psi nitrogen gas; this gas charge ensures split second response and reduced aeration. Combine these features with the special Fluon-banded piston and this shock is built to perform! Shock absorbers are sold individually and include bushings/sleeves.

Fits:

• Chevrolet:

  • 1992-1994 Blazer with 5" Lift
  • 1988-1998 C2500 with 5" Lift
  • 1988-1998 K1500/K2500 with 5" Lift
  • 1995-1998 Tahoe with 5" Rear Lift
• GMC:
  • 1988-1998 C2500 with 5" Lift
  • 1988-1998 K1500/K2500 with 5" Lift
  • 1992-1998 Yukon with 5" Lift

Features:

• Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance

• Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft

• Bushings and sleeves included for easy, direct replacement installation

• Shock absorbers are sold individually

Specs:

• Compressed Length: 18.5 Inch

• Extended Length: 30.95 Inch
• Shaft Diameter: 5/8"
• Lower Mount Type: Eyelet

• Upper Mount Type: Bar Pin

You can view and download the assembly or instruction booklet here.
