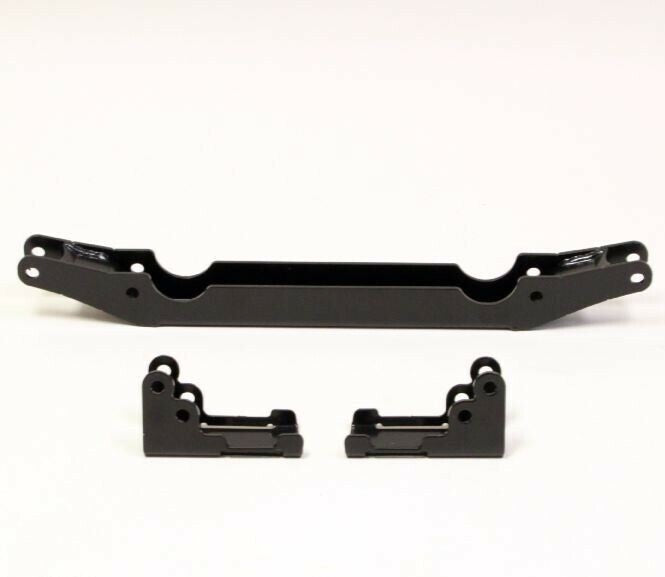

RTP RZR 570 2IN LIFT KIT

BRAND NEW RT PRO 2" LIFT KIT, BLACK POWDER COATED, COMPATIBLE WITH 2012-2017 POLARIS RZR 570

THE RZR 570 IS A GREAT ADDITION TO THE POLARIS RZR LINEUP. HOWEVER, IT LACKS THE SAME THING ALL THE OTHER RZR DO, GROUND CLEARANCE. RT PRO ONCE AGAIN BRINGS YOU THE ULTIMATE SOLUTION FOR ADDED GROUND CLEARANCE, ADDED CHASSIS STRENGTH AND IMPROVED HANDLING CHARACTERISTICS.

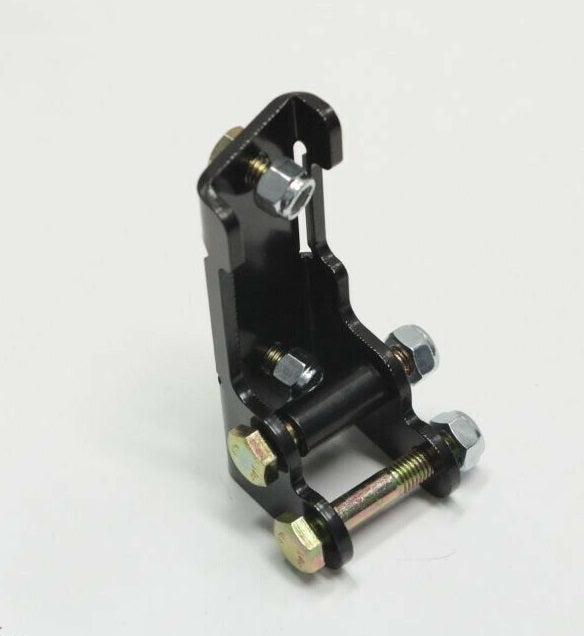

THIS KIT IS COMPLETELY SAFE FOR YOUR CV JOINTS AND IN TRUE RT PRO FASHION, IT IS EASY TO INSTALL AND MAKES YOUR CHASSIS STRONGER WHERE IT CONNECTS. THE LIFT IS ESSENTIALLY THE SAME FRONT CHANNEL WE CURRENTLY OFFER FOR THE RZR 800 WHICH IS A TRIED AND TRUE DESIGN. THE REAR USES A NEW "CLEVIS" DESIGN WHICH SLIDES OVER THE UPPER SHOCK MOUNT FROM THE INSIDE OF THE CHASSIS. INSTALLATION FOR THE REAR REQUIRES REMOVING THE ENGINE ACCESS PANEL IN THE BED AND REMOVING THE AIR BOX (WHICH IS VERY EASY).

ONCE THE AIR BOX IS REMOVED THE UPPER SHOCK MOUNTS CAN BE REMOVED AND OUR NEW PART CAN SLIDE OVER THE OEM SHOCK MOUNT AND BE LOCATED BY THE SUPPLIED BOLTS WHICH MOUNT IN TO THE OEM SHOCK HOLES. AFTER THIS THERE ARE TWO SIMPLE HOLES PER SIDE TO DRILL TO POSITIVELY LOCK THIS COMPONENT TO THE CHASSIS WITH THE SUPPLIED HARDWARE. THE HOLES ARE THROUGH A SINGLE PLATE AND THE LOCATION IS SET FOR YOU BY OUR PART SO THIS INSTALL IS EVEN EASIER THAN OUR RZR 800 DESIGN.

NOT ONLY DOES IT PROVIDE THE MUCH NEEDED LIFT BUT IT ALSO CORRECTS THE GEOMETRY ENOUGH THAT THE MACHINE FEELS NO MORE TIPSY THAN BEFORE AND THE HANDLING IS ACTUALLY IMPROVED! THIS KIT ALLOWS THE USER TO CONTINUE TO USE THE OEM FRONT AND REAR SWAY BARS IF DESIRED BY USING THE SUPPLIED SPACERS WHICH COME WITH THE KIT, AND COMES POWDER COATED SATIN BLACK WITH ALL HARDWARE AND INSTRUCTIONS FOR INSTALLATION.

NOTE: COMPATIBLE WITH ALL YEAR RZR 570 50" MODELS. NOT COMPATIBLE WITH 2017 RZR 570 S 60" MODEL.

NOTE: NOT COMPATIBLE WITH AFTERMARKET SHOCKS. THE LONGER SPRING ASSEMBLY ON AFTERMARKET SHOCKS WILL RUB ON THE UPPER A-ARM.

COMPATIBLE WITH:

• POLARIS:
• 2012-2017 RZR 570
