JKS 07-18 WRANGLER JK J-KONNECT 4DR 3.5IN SYSTEM W/ FOX 2.0 PERFORMANCE SHOCKS

BRAND NEW JKS MANUFACTURING 3.5" LIFT KIT, J-KONNECT SUSPENSION SYSTEM, FOX 2.0 PERFORMANCE SHOCKS, COMPATIBLE WITH 2007-18 JEEP WRANGLER UNLIMITED JK 4 DOOR

J-KONNECT SUSPENSION SYSTEMS ARE J-RATED FOR ROAD AND TRAIL USE WITH SOME ROCK CRAWLING. OPTIONAL FOX SHOCKS INCREASE RATINGS FOR ALL TERRAINS, ON AND OFF-ROAD.

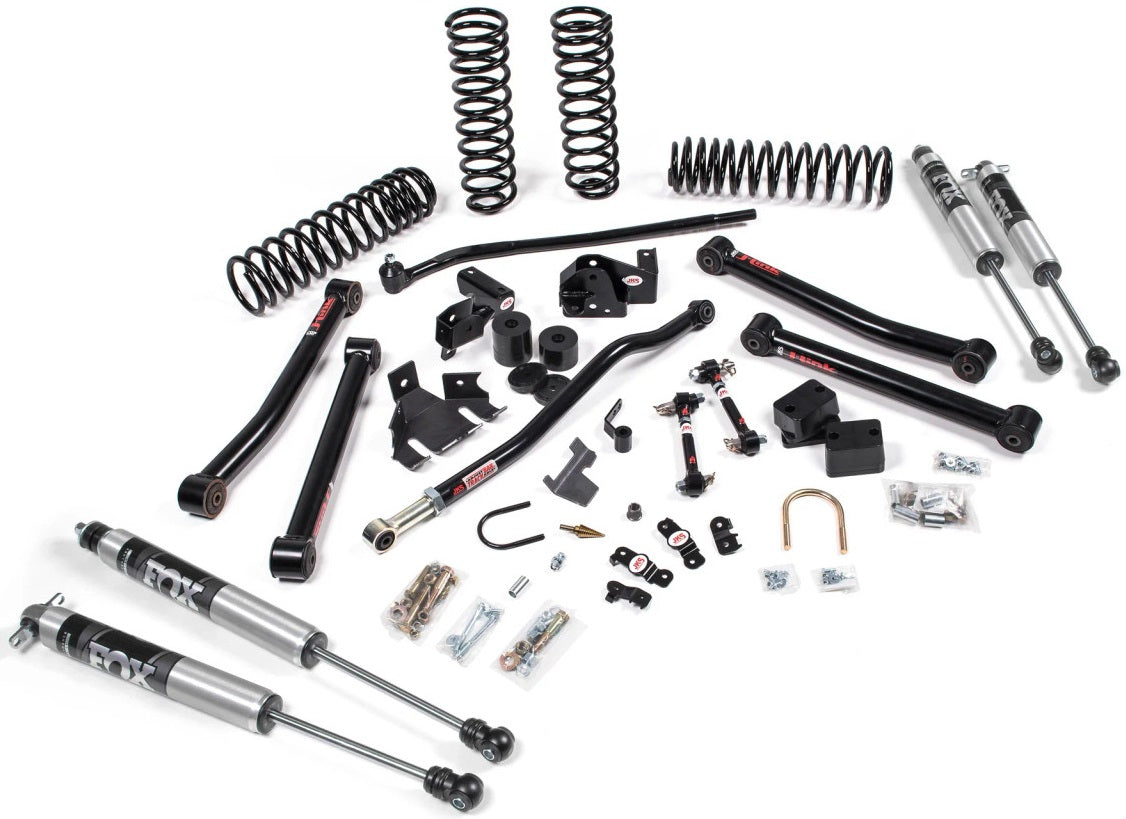

J-KONNECT 3.5" SUSPENSION SYSTEM IS COMPATIBLE WITH LARGER TIRES AND INCREASE OFF ROAD CAPABILITIES. INCLUDES DUAL RATE COIL SPRINGS, TUNED GAS SHOCKS, ADJUSTABLE FRONT TRACK BAR, J-LINK LOWER CONTROL ARMS, AND SWAY BAR QUICKER DISCONNECTS. WHILE THE ENTRY LEVEL J-VENTURE SYSTEMS IS DESIGNED FOR EQUAL PARTS ON-ROAD HANDLING AND OFF-ROAD CAPABILITY, J-KONNECT TAKES STRENGTH AND PERFORMANCE A STEP FURTHER BY ADDING FRONT AND REAR FIXED LENGTH J-LINK LOWER CONTROL ARMS.

THESE LOWER CONTROL ARMS NOT ONLY ADD FRONT CASTER AND REAR WHEELBASE, THEY ARE A SERIOUS UPGRADE TO THE STRENGTH OVER THE FACTORY CONTROL ARMS. BUILT 2" X .250-WALL DOM TUBING WHILE OFFERING BETTER NVH ISOLATION WITH LARGE FACTORY STYLE RUBBER BUSHINGS AT BOTH ENDS. THE END RESULT IS AGGRESSIVE OFF-ROAD PERFORMANCE AND STRENGTH WHILE MAINTAINING EXCELLENT ON-ROAD MANNERS. GET CONNECTED WITH J-KONNECT.

NOTE: 2012-2018 MODELS WITH 3.6L PENTASTAR MOTOR WILL REQUIRE EXHAUST MODIFICATION FOR DRIVESHAFT CLEARANCE AT FULL SUSPENSION DROOP, USE JKS8150 EXHAUST EXTENSIONS

NOTE: RUBICON SWAY BAR LINK HARDWARE INCLUDED IN KIT

COMPATIBLE WITH:

• JEEP:
• 2007-2018 WRANGLER UNLIMITED JK 4 DOOR

FEATURES:

• FRONT & REAR DUAL RATE COIL SPRINGS DESIGNED TO GREAT RIDE AND IMPROVED PERFORMANCE ACROSS ANY TERRAIN
• FRONT & REAR GAS SHOCKS (FOX 2.0 PERFORMANCE SERIES IFP) SPECIFICALLY VALVED FOR THIS SUSPENSION SYSTEM FOR IMPROVED PERFORMANCE ON AND OFF-ROAD
• FRONT ADJUSTABLE TRACK BAR AND REAR TRACK BAR BRACKET TO CORRECT AXLE POSITIONING UNDER VEHICLE
• FRONT SWAY BAR QUICKER DISCONNECTS AND BRAKE LINE BRACKETS TO ALLOW FOR INCREASED OFF-ROAD ARTICULATION
• FRONT & REAR J-LINK LOWER CONTROL ARMS FOR IMPROVED STRENGTH AND CASTER CORRECTION
• FRONT & REAR TRACK BAR SUPPORT BRACES TO IMPROVE STRENGTH AND PROTECTION
• HD DRAG LINK FLIP KIT W/ TRACK BAR BRACKET TO IMPROVE STEERING ANGLES FOR BETTER HANDLING
• FRONT & REAR BUMP STOP EXTENSIONS TO PROPERLY LIMIT SUSPENSION UP TRAVEL

TIRE SPECS:

• TIRE: 35X12.50
• WHEEL: 16X8, 17X9, 20X9
• BACKSPACING: 4.5"
• OTHER TIRE/WHEEL SIZES CAN BE USED, HOWEVER MAY REQUIRE ADDITIONAL MODIFICATIONS

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS LIFT KIT HERE.
