JKS 07-18 JEEP WRANGLER (JK) 4DR 3.5IN JSPEC SYSTEM,FOX REMOTE RESI
JKS 07-18 JEEP WRANGLER (JK) 4DR 3.5IN JSPEC SYSTEM,FOX REMOTE RESI
SKU:STU JSPEC100KFR
Brand New JKS 3.5" J-Venture Lift Kit with FOX 2.0 Remote Reservoir Shocks. Compatible with 2007-2018 Jeep Wrangler JK 4WD 4-Door (Part #JSPEC100KFR).

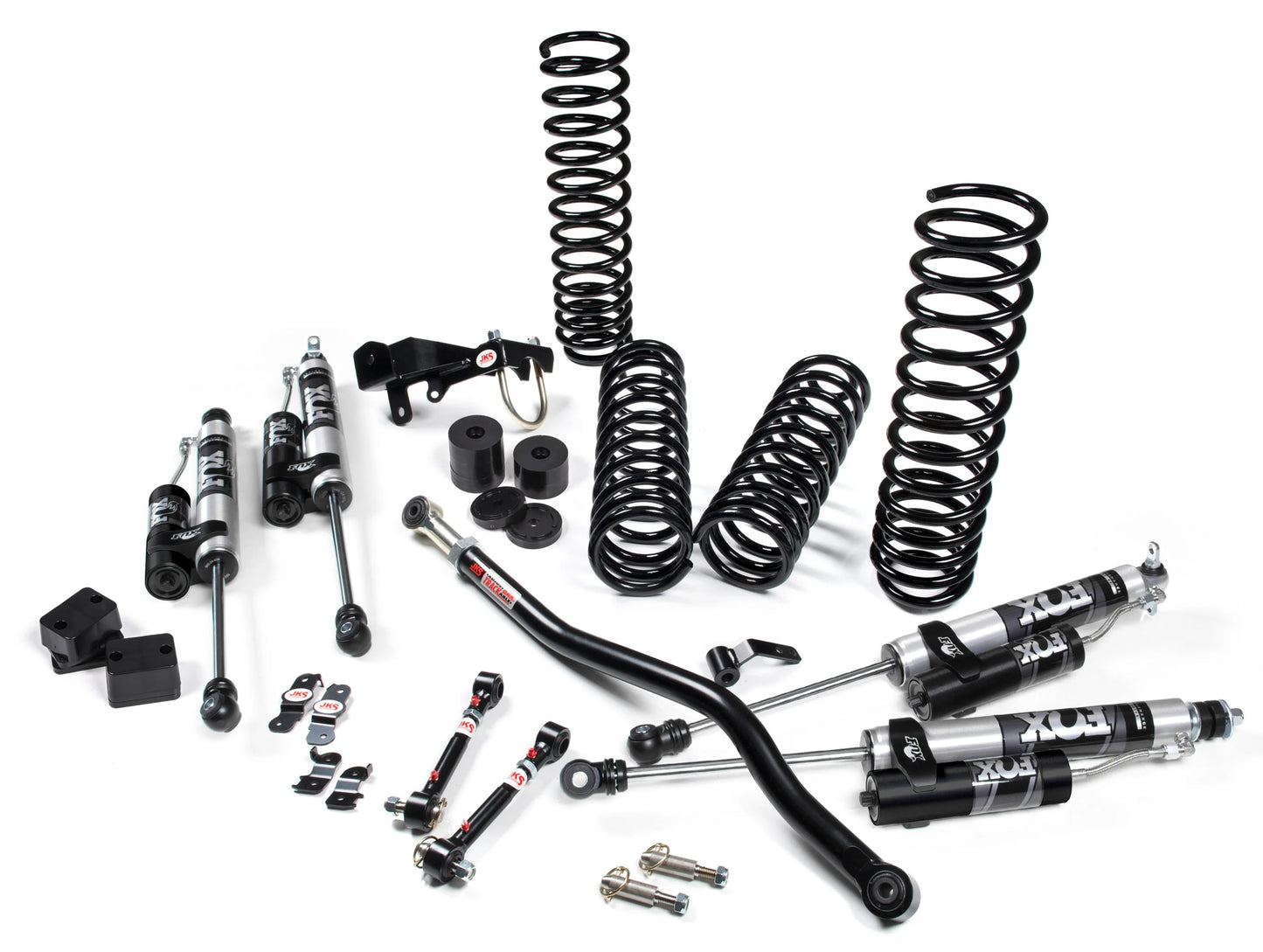

Increase your Jeep Wrangler JK 4-Door's ground clearance, tire clearance and performance with a J-Venture 3.5" suspension system. This complete, bolt-on kit includes JSPEC custom-matched JSPEC dual-rate coil springs, custom-valved monotube gas shocks, a front adjustable track bar, rear track bar bracket, front sway bar quicker disconnects, bump stop extensions, and caster plate alignment correction.
J-Venture provides improved ride quality on road. When the road ends, disconnect your sway bar end links for improved articulation. That makes J-Venture the perfect entry-level performance suspension system. The system has been engineered for low maintenance. Get out and explore with J-Venture.
Compatible with:
- Jeep:
- 2007-2018 Wrangler JK 4WD 4-Door
NOTE:
- 2012-2018 Models with 3.6L Pentastar engine will require exhaust modification for driveshaft clearance at full suspension droop, use JKS8150 exhaust extensions.
- Rubicon sway bar link hardware included in kit.
- Recommended Tire and Wheels (Trimming may be required) - 35 x 12.5 with 17 x 9 and 4.5 in. Backspace, 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, and 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
Features:
- Front and Rear Dual Rate Coil Springs designed to great ride and improved performance across any terrain.
- Front and Rear Gas Shocks specifically valved for this suspension system for improved performance on and off-road.
- Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
- Front Sway Bar Quicker Disconnects and Brake Line Brackets to allow for increased off-road articulation.
- Front and Rear Bump Stop Extensions to properly limit suspension up travel.
- Front Caster Cam Locks to correct front end caster once lifted.
Specs:
-
Front Lift Method: Coil Spring
-
Front Lift Height: 3.5"
-
Rear Lift Method: Coil Spring
-
Rear Lift Height: 3.5"
- Shocks Included: Yes
You can view and download the complete assembly instruction booklets for this lift kit here.
