JKS JK DRAG LINK FLIP KIT -LHD

BRAND NEW JKS MANUFACTURING DRAG LINK FLIP KIT, INCLUDES 7/8" STEP BIT, COMPATIBLE WITH 2007-2018 JEEP WRANGLER JK

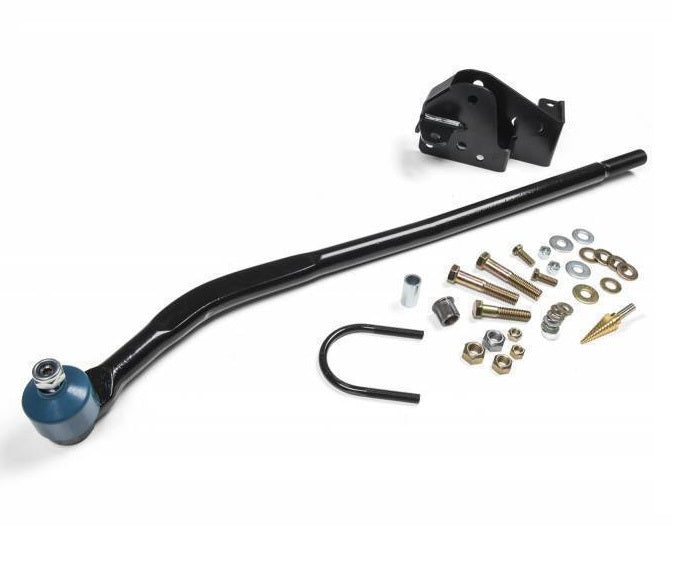

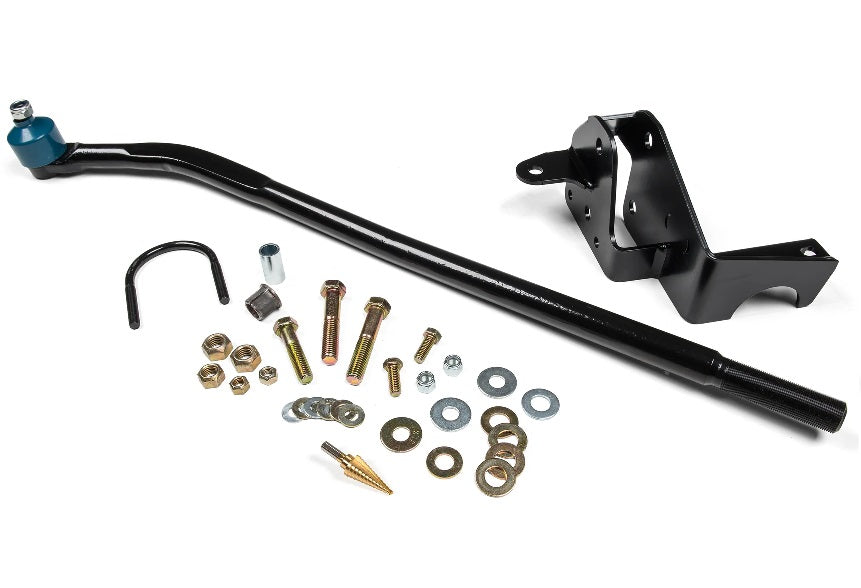

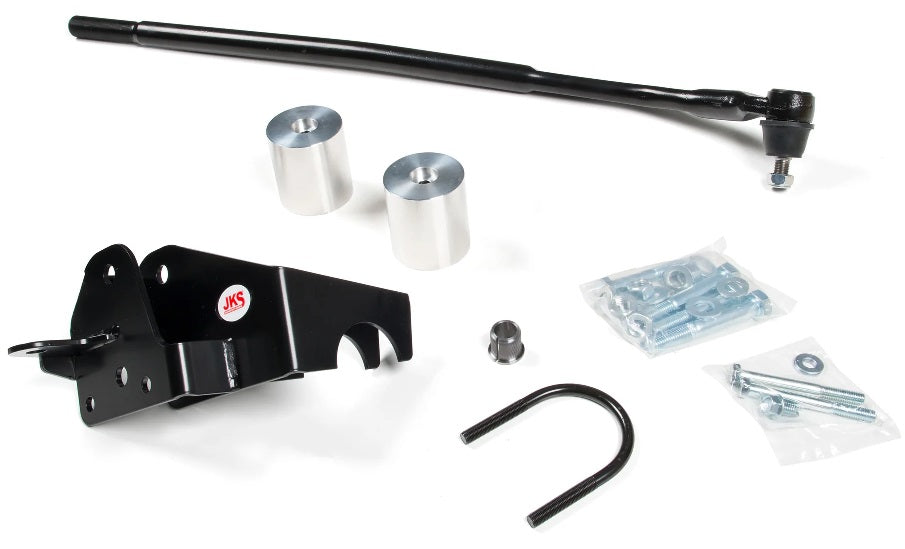

JKS MANUFACTURING DRAG LINK FLIP KIT FOR JK WRANGLERS CONSISTS OF A NEW DRAG LINK, A TRACK BAR BRACKET AND A TAPERED STEERING ARM INSERT. THE DESIGN FLATTENS OUT STEERING ANGLES WITH LIFT HEIGHTS OF 3" AND ABOVE, WHILE PROVIDING CORRECT GEOMETRY TO INCREASED DROOP TRAVEL. BRINGING ANGLES BACK TO STOCK WITH THE INCREASED RIDE HEIGHT OF A LIFT REMOVES THE BUMP STEER COMMONLY ASSOCIATED WITH LIFTED SOLID AXLE SUSPENSIONS. DRILLING IS REQUIRED WITH THE SUPPLIED 7/8" STEP BIT. 3" TALL FRONT ALUMINUM BUMP STOP EXTENSIONS ARE NECESSARY FOR PROPER CLEARANCE AT FULL BUMP. PART #JKS1130 EXTENSIONS AVAILABLE SEPARATELY.

NOTE: FOR USE ON LHD JK MODELS WITH AT LEAST 2" OF SUSPENSION LIFT

NOTE: REQUIRES 3" OF FRONT BUMP STOP EXTENSION, PART #JKS1130 AVAILABLE SEPARATELY

NOTE: SHOULD NOT BE COMBINED WITH OTHER TRACK BAR RELOCATION SYSTEM

NOTE: CAN BE USED WITH FACTORY REPLACEMENT ADJUSTABLE TRACK BARS

NOTE: ONLY COMPATIBLE WITH FACTORY PITMAN ARM FOR PROPER GEOMETRY

NOTE: REQUIRES 17" DIAMETER WHEEL OR LARGER, WITH 4.75" BACKSPACING OR LESS

COMPATIBLE WITH:

• JEEP:
• 2007-2018 JEEP WRANGLER JK

FEATURES:

• PROVIDE BETTER PERFORMING, SOLID STEERING FEEL
• FLATTENS OUT STEERING ANGLE WHEN COMBINED WITH 2" LIFT OR MORE
• 7/8" STEP DRILL BIT INCLUDED

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DRAG LINK FLIP KIT HERE.
