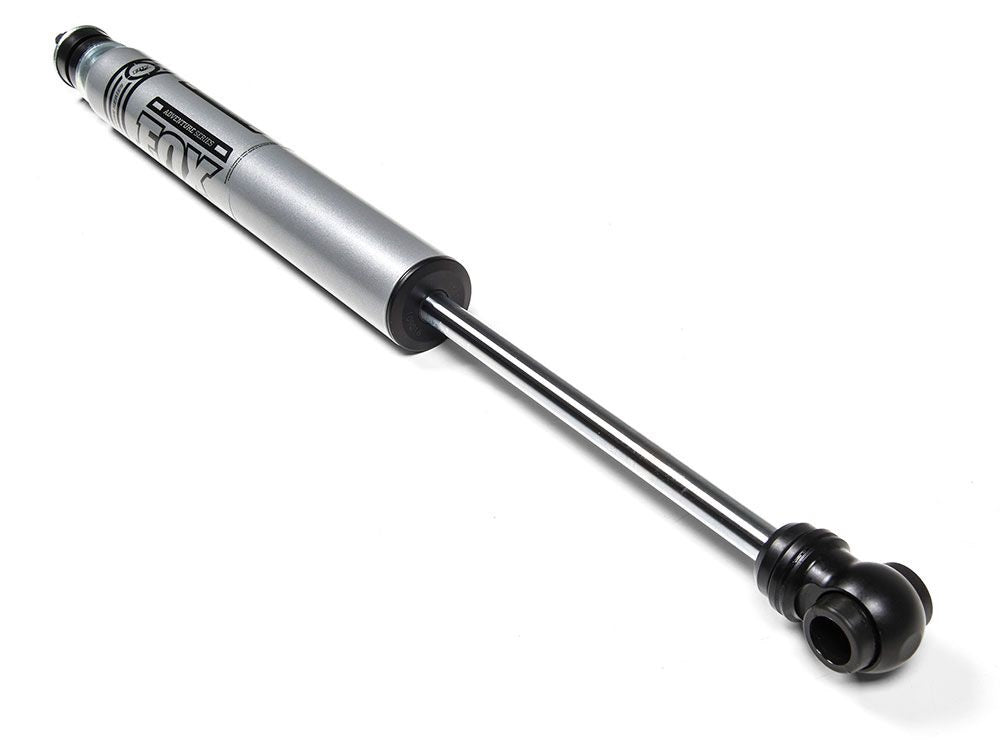

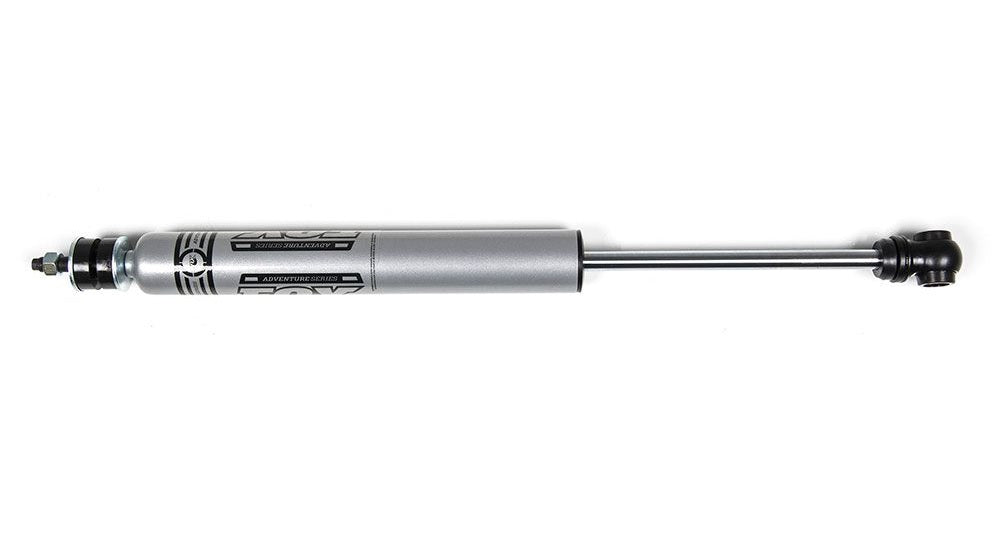

FOX ADV SHOCK 28.24 X 17.15 X 2 S50/EB1

Brand New Zone Offroad FOX 2.0 Adventure Series Front Shock (Part #FOX98450750).

Built specifically to compliment your lift kit, FOX's proven damping technology provides a comfortable on-road ride and predictable off-road handling in a variety of conditions. Their monotube design uses an internal floating piston (IFP) to separate the shock oil from the high-pressure, nitrogen-charged gas chamber, preventing oil aeration for fade-free performance in rough terrain.

Fits:

• Dodge:
  • 2006-2008 Ram 1500 4WD with 6" Lift
  • 1994-2010 Ram 2500 4WD with 6" Lift
  • 1994-2002 Ram 3500 4WD with 5" Lift
  • 2003-2010 Ram 3500 4WD with 6" Lift
• Ford:
  • 2005-2016 F-250 Super Duty 4WD with 6" Lift
  • 2005-2016 F-350 Super Duty 4WD with 6" Lift
• Ram:

  • 2011-2012 2500 4WD with 6" Lift
  • 2011-2012 3500 4WD with 6" Lift

Features:

• Thick silver powder coat.

• 2.0 Smooth bore and honed seamless alloy bodies.

• Quiet nitrile rubber allows for increased suspension articulation.

• Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen.

• Direct replacement for stock and aftermarket lifts kits.

• JM92 Advanced Suspension Fluid for improved performance at variable temperatures.

• 5/8" hard chrome plated heat-treated alloy steel.

Specs:

• Lower Mount Type: Eyelet

• Upper Mount Type: Stem

• Gas Charged: Yes

• Adjustable Damping: No

• Compressed Length: 17.15 Inch

• Extended Length: 28.24 Inch
• Travel Length: 11.09 Inch
• Shaft Diameter: 5/8"

You can view and download the assembly or instruction booklet here.
