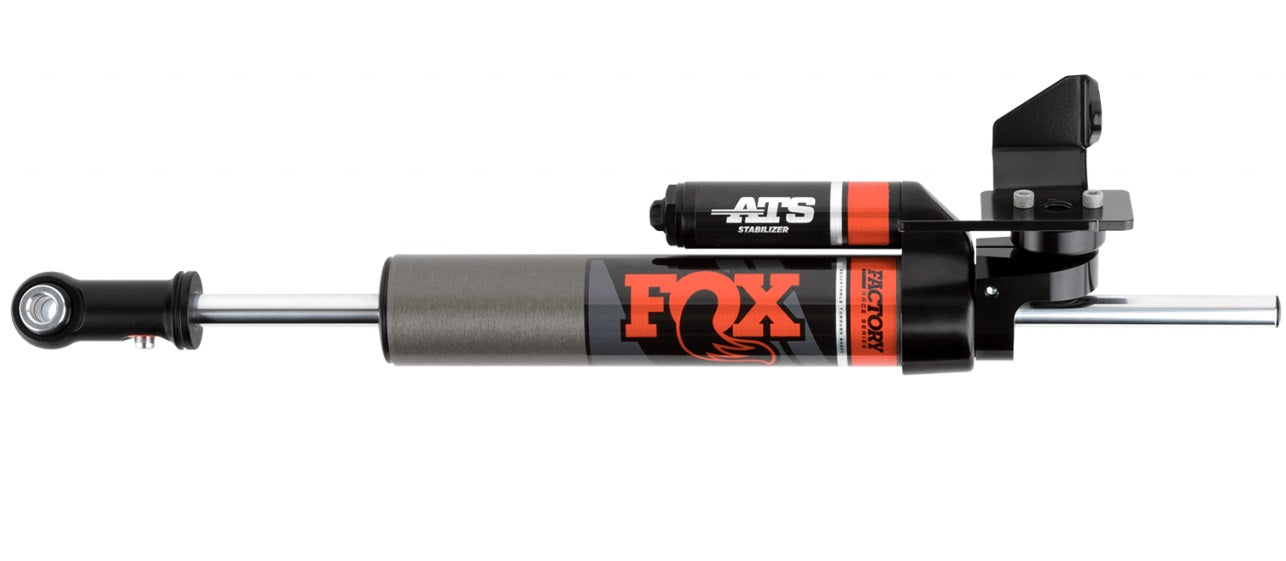

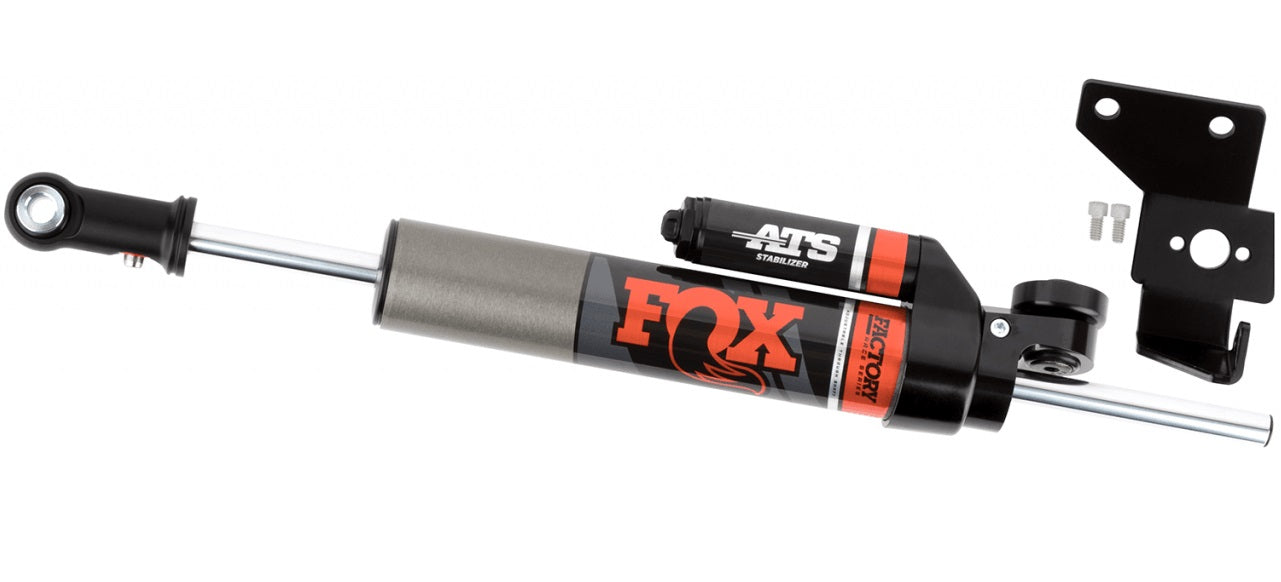

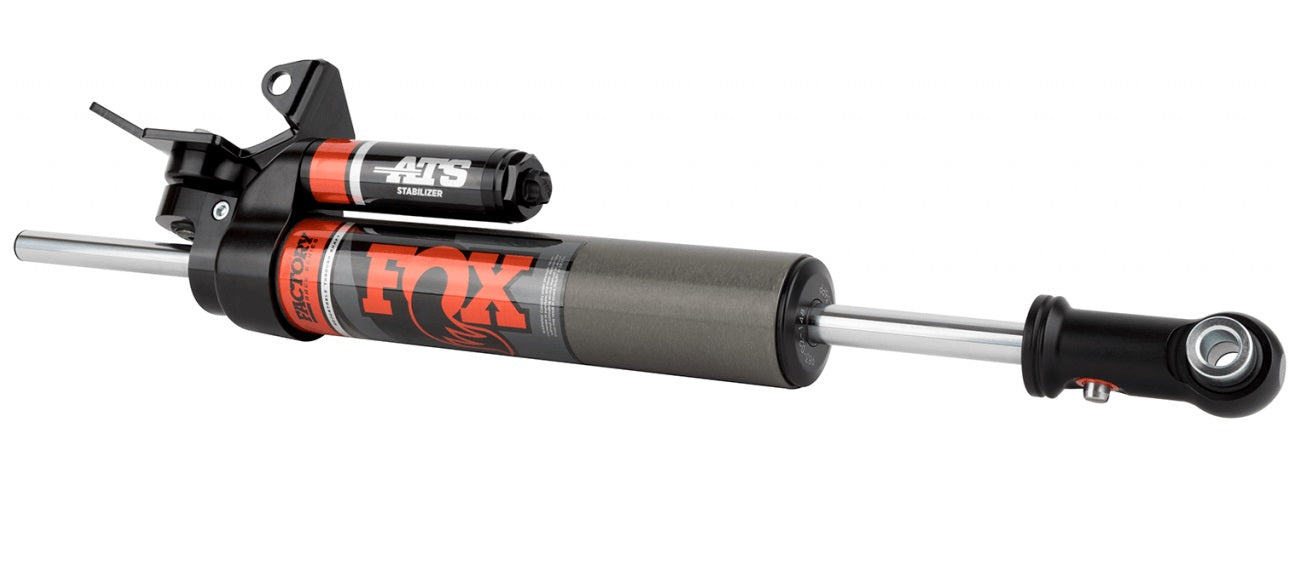

FOX 18-UP JEEP JL ATS STABILIZER,8.1" TRV,23.2" EXT,THROUGH-SHAFT,AXLE MOUNT

FOX 18-UP JEEP JL ATS STABILIZER,8.1" TRV,23.2" EXT,THROUGH-SHAFT,AXLE MOUNT

SKU:STU FOX98302148

Regular price $469.95
Regular price Sale price $469.95
View full details

BRAND NEW FOX FACTORY RACE SERIES 2.0 ATS STABILIZER, COMPATIBLE WITH 2020 & UP JEEP GLADIATOR JT & 2018 & UP WRANGLER JL/JLU

WITH CONVENTIONAL STEERING STABILIZERS, TURNING IN ONE DIRECTION CREATES AN INCREASE IN PRESSURE INSIDE THE STABILIZER AS THE SHAFT OCCUPIES MORE VOLUME IN THE BODY AND DISPLACES THE OIL. THE REPERCUSSION IS A PUSH OR PULL STEERING FORCE FELT BY THE DRIVER AS THE STABILIZER ATTEMPTS TO RETURN TO ITS NEUTRAL STATE. TO OVERCOME THIS UNIDIRECTIONAL FORCE, DUAL OPPOSING STABILIZERS ARE OFTEN USED, BUT THIS REQUIRES ADDITIONAL MOUNTING HARDWARE AND SPACE.

THE FACTORY RACE SERIES 2.0 STABILIZER ATS UTILIZES AN ADJUSTABLE THROUGH SHAFT (ATS) ARCHITECTURE THAT ELIMINATES SHAFT FLUID DISPLACEMENT THROUGHOUT THE STABILIZERS ENTIRE TRAVEL IN BOTH DIRECTIONS. THE EXTERNAL PIGGYBACK RESERVOIR PROVIDES ADDITIONAL FLUID CAPACITY AND UTILIZES AN INTERNAL FLOATING PISTON (IFP) TO SEPARATE THE FLUID FROM THE NITROGEN GAS CHARGE TO ELIMINATE CAVITATION.

FOR INCREASED CONTROL THAT CAN BE TAILORED TO ANY DRIVING STYLE AND SETUP, AN EXTERNAL ADJUSTER PROVIDES 24 CLICKS OF ADJUSTMENT TO FINE TUNE THE FEEL. THE RESULT IS HIGHLY CUSTOMIZABLE & CONSISTENT DAMPING OF UNWANTED STEERING FEEDBACK IN A SINGLE, BOLT-ON STABILIZER.

NOTE: FOX DIRECT-REPLACEMENT SHOCKS AND STEERING STABILIZERS ARE DESIGNED TO FIT AND ALLOW PROPER CLEARANCE WITH THE STOCK SUSPENSION. IF AFTERMARKET SUSPENSION COMPONENTS ARE INSTALLED IT IS THE CUSTOMERS RESPONSIBILITY TO ENSURE THAT AT FULL CYCLE THE SUSPENSION CLEARS THE FOX SHOCKS.

COMPATIBLE WITH:

  • JEEP:
    • 2020 & UP GLADIATOR JT
    • 2018 & UP WRANGLER JL/JLU

FEATURES:

  • 24 CLICKS OF ADJUSTABILITY
  • EXTENDED LENGTH 23.19"
  • COMPRESSED LENGTH 15.07"
  • TRAVEL 8.12"
  • TOP MOUNT: AXLE MOUNT

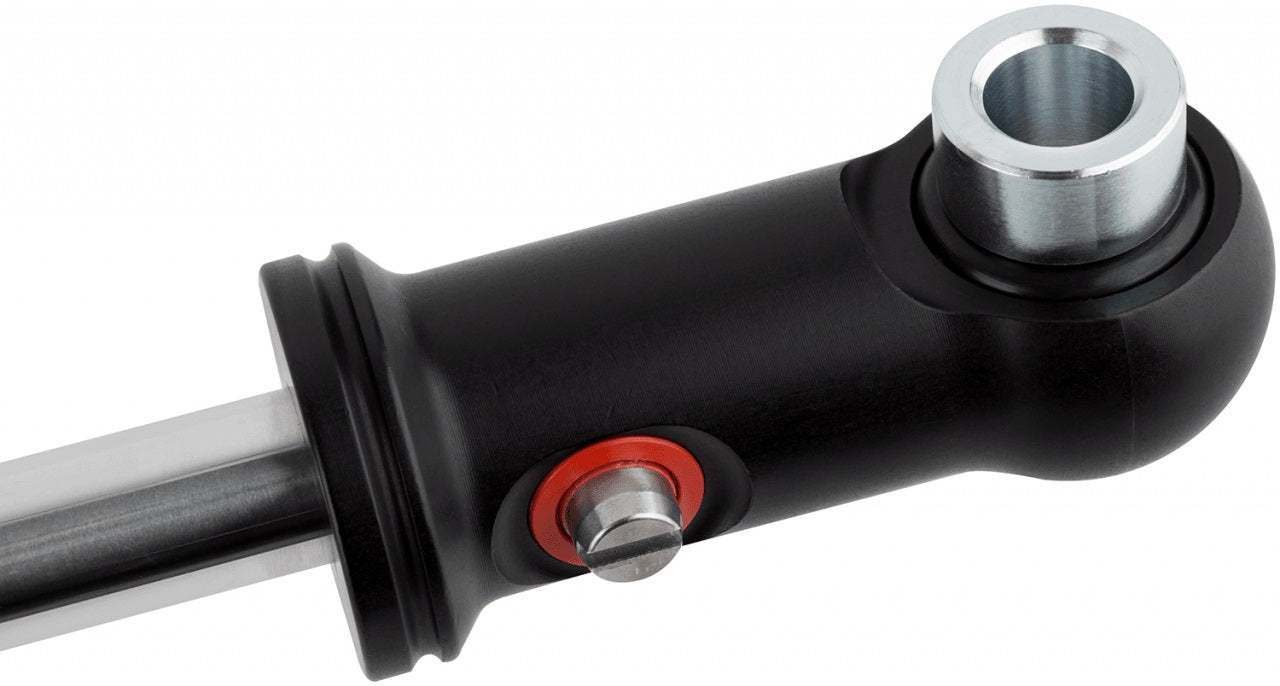

  • BOTTOM MOUNT: EYELET
  • HARD-ANODIZED FOR A DURABLE FINISH
  • CNC-MACHINED 6061-T6 BILLET ALUMINUM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS STABILIZER KIT HERE.
