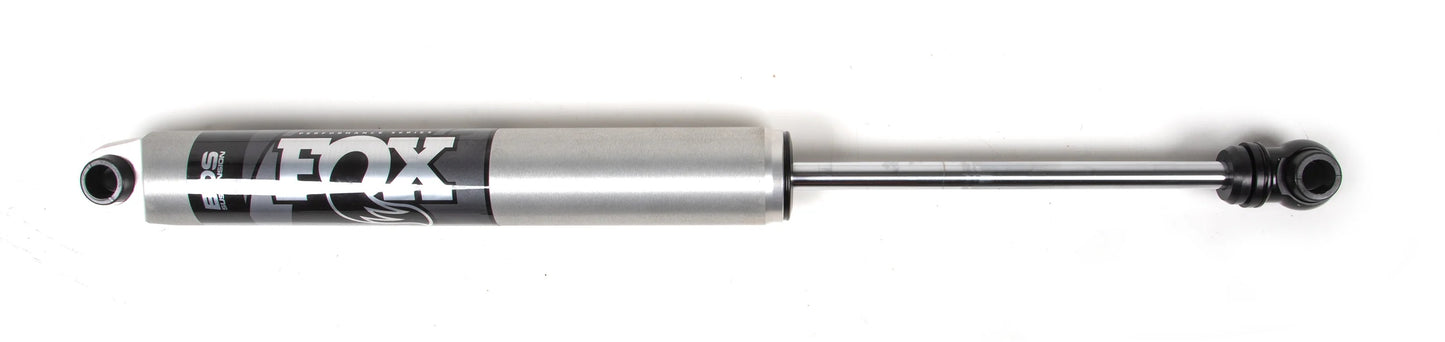

FOX 2.0 SHOCK 31.02 X 18.95 X 2- EB1/EB1

Brand New BDS FOX 2.0 Performance Rear Shock (Part #FOX98224767).

Upgrade the on-road comfort and off-road control of your 2020-2025 Chevy Silverado or GMC Sierra 2500 HD/3500 HD to FOX Performance Series 2.0 IFP (internal floating piston) rear shocks. Designed to fit a BDS 5 to 6.5-inch lift suspension kit. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

Fits:

• Chevrolet:
  • 2020-2025 Silverado 2500 HD 4WD with 5-6.5" Lift

  • 2020-2025 Silverado 3500 HD 4WD with 5-6.5" Lift
• GMC:
  • 2020-2025 Sierra 2500 HD 4WD with 5-6.5" Lift

  • 2020-2025 Sierra 3500 HD 4WD with 5-6.5" Lift


Features:

• 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body

• 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Internal IFP mono-tube reservoir design


Specs:

• Lower Mount Type: Eyelet

• Upper Mount Type: EB1

• Gas Charged: Yes

• Adjustable: No

• Adjustable Dampening: No

• Compressed Length: 18.95 Inch

• Extended Length: 31.02 Inch
• Travel Length: 12.07 Inch
